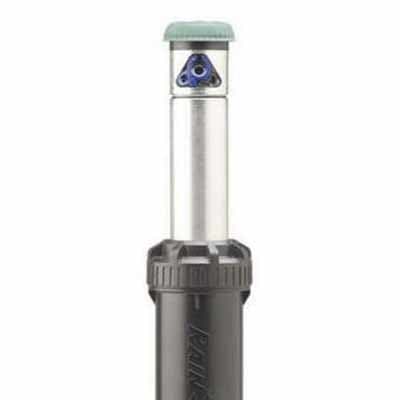

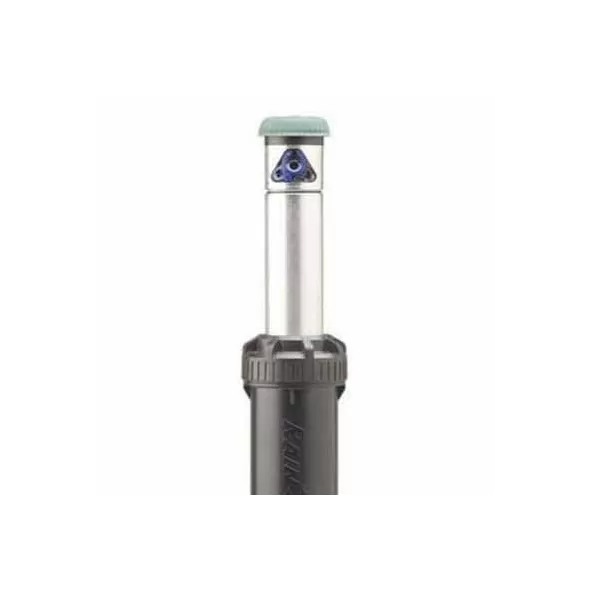

Rain Bird 8005 Rotor 5" Full/Part Circle w/ SAM, SS | B81300

Specifications

Brand	Rain Bird
Advanced Features	Check Valve
Case Quantity	12
Flow Rate	3.8 to 36.3 gpm
Inlet Size	1 in.
Pop-Up Height	5 in.
Riser Material	Stainless Steel
Spray Pattern	Full/Part Circle
UPC	739460013007

Shop for Rain Bird 8005 Series Rotor, 39' to 81' Radius, 1" Inlet Pop-Up Height: 5 in. Riser Material: Stainless Steel Spray Pattern: Full Circle Adjustable (0 - 360) Features and Benefits The Rain Bird 8005 Series Rotor is perfect for parks, sportsfields and other large turfs. The Rain Bird & reg; 8005 Rotor is built rugged to withstand the harsh conditions and vandalism present in commercial rotor applications. It has been designed and tested to ensure the high reliability demanded by the market today. With its extensive customer identified features, it is versatile enough to fit all applications. The Rain Bird 8005 Rotor, with Its extensive customer identified features and 80 foot radius, is ideal for sportsfields, parks and other large turf applications. Includes: 1 complete set of standard nozzles per rotor 1 Set of Instructions (1 per shipment) * Adjustment tool not included since standard flat-head screwdriver is sufficient Vandal resistance, brass reinforced turret for increased side impact durability Memory Arc returns the rotor to its original arc setting Non-strippable drive mechanism prevents damage from vandals Easy, wet, dry arc adjustment with slotted screwdriver through top of rotor from 50° to 330° part-circle, 360° non-reversing full-circle. Full and part circle operation in one unit Left and right side trips adjustable for ease of installation without turning the case and loosening the pipe connection SAM Seal-A-Matic check valve 3-port, color-coded Rain Curtain nozzles for optimal long-range, midrange, and close-in watering 5 year warranty Memory Arc returns the rotor to its original arc setting Non-strippable drive mechanism prevents damage from vandals Sneaker Armor construction of nozzle turret and riser withstands vandal kick Optional stainless steel riser model helps deter vandalism on public turf areas Easy; wet; dry arc adjustment with slotted screwdriver trough top of rotor from 50 degrees to 330 degrees part-circle; 360 degrees non-reversing full circle Full and part circle operation in one unit to reduce inventory requirements Left and right side trips adjustable for ease of installation without turning the case and loosening the pipe connection Seal-A-Matic (SAM) check device/riser to help prevent low head drainage Water-lubricated gear drive Standard rubber cap (Green) Rain Curtain nozzles with three ports for optimal long-range; mid-range; and close-in watering resulting in superior uniformity Nozzles are interchangeable from the front with no special tools Self-adjusting turbine regulator allows nozzle replacement with no other adjustments required Heavy duty retract spring ensures positive pop-down Five-year trade warranty Product Details 1" (26/34) NPT or BSP female threaded inlet. SAM check device holds up to 10 feet (3.1 m) of head. Nozzle outlet trajectory is 25 & deg;. Rain Curtain Nozzles: 12 - beige 14 - light green 16 - dark brown 18 - dark blue 20 - red 22 - yellow 24 - orange 26 - white Dimensions Exposed diameter: 1 7/8" (4,8 cm) Overall diameter: 3 1/8" (7,9 cm) Overall height: 10 1/8" (25,7 cm) Pop-up height: 5" (12,7 cm) Note: Pop-up height measured from the cover to center of the primary nozzle port. Overall body height is measured popped down
