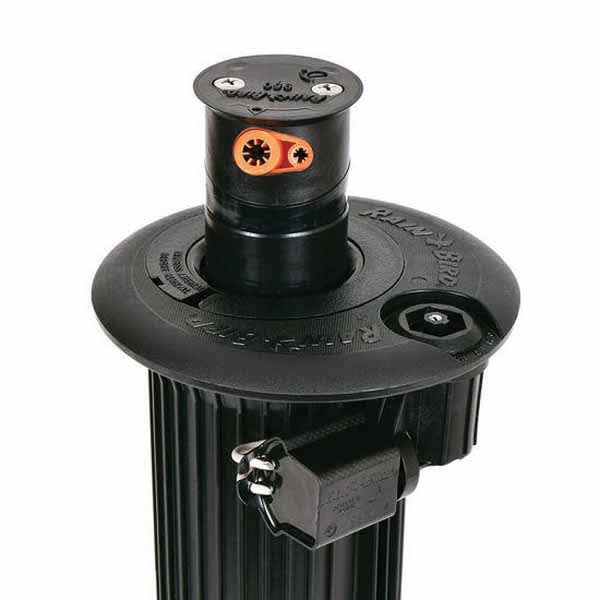

Rain Bird 950E Series Golf Rotor Part Circle 86' 50.4 gpm 150 psi Black Electric | GRE561830

Specifications

Brand	Rain Bird
Advanced Features	Pressure Regulation
Coverage Radius	86 ft.
Flow Rate	50.4 gpm
Nozzle Color	Black
Spray Pattern	Part Circle
UPC	077985040185

Rain Bird, Golf Rotor, Adjustable Part Circle Arc, 950E Series Green Electric Coverage Arc Adjustable Part Circle 40° to 345° Coverage Radius: 86 ft. Flow Rate: 50.4 gpm Maximum Stream Height: 20' (6.1 m) Features and Benefits For fairways and the rough, the EAGLE™ 950 rotor series provides superior coverage. Closed-Case Provides Proven Debris Resistance True closed-case construction of EAGLE rotors extends the life of the rotor by protecting the motor from debris, outside elements and environmental changes. The industry's only self-flushing mode at pop-up and pop-down adds another barrier to debris that is crucial in fine sand and silty soil types. The closed-case design also permits installation to grade. Part circle version with electric body Offers the versatility to meet any challenge, regardless of the climate, soil type, water use and fertigation requirements. Some EAGLE series rotors are interchangeable. Simply install the new internal assembly inside the existing case-without rewiring. Easily interchangeable color-coded nozzles allows rotors to be easily tailored to differing course applications and requirements. ACME thread inlet features the o-ring seal style for positive seal. Unique flow-around-the-motor design reduces friction and ensures reliable performance with all types of water conditions-even reclaimed water. EAGLE rotors are easily serviced from the top. The simple removal of snap rings provides quick access to the internal assembly and valve - with no digging. And arc adjustment can be made from the top using only a screwdriver. Top-Serviceable Rock Screen and Replaceable Valve Seat Product Details Inlet Threads: 1.5 in ACME Female Threaded Body/Valve: E - Electric Pressure Range: Maximum Inlet Pressure: 150 psi (10.3 bars) Dimensions Body Height: 13.4" (34.0 cm) Pop-Up Height to Mid-Nozzle: 2.25" (5.7 cm) Top Diameter: 7" (17.8 cm)
