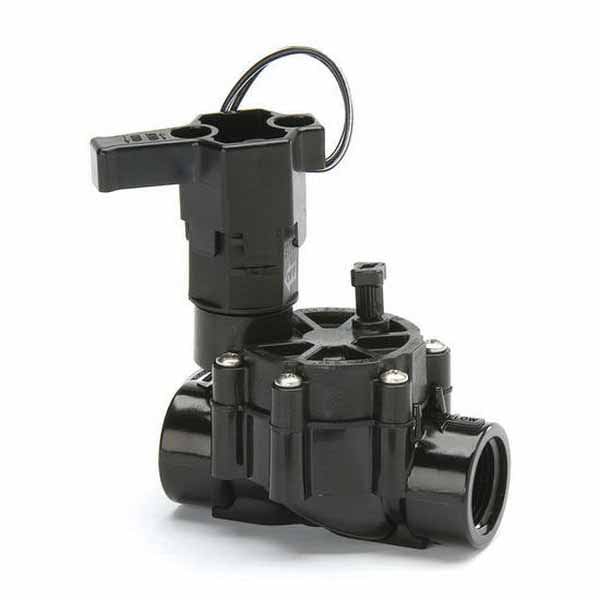

Rain Bird DVF In-Line Valve with Flow Control 1" FPT | RBL100DVF

Specifications

Brand	Rain Bird
Body Material	Heavy-Duty Plastic
Case Quantity	20
Connection Size	1 in.
Connection Type	FNPT
Electrical Rating	24 VAC 50/60 Hz, 0.3 A Inrush, 0.19 A Holding at 60 Hz
Flow Control	Yes
Master Valve Status (Normally Open/Normally Closed)	Normally Closed
Valve Type	Sprinkler Valve
UPC	739460013991

Shop for Rain Bird DVF 1" FNPT Valve with Flow Control Double-filtered (diaphragm and solenoid) pilot-flow design for maximum reliability and grit resistance Internal bleed for spray-free manual operation Energy-efficient, low-power encapsulated solenoid with captured plunger and 90-mesh (200 microns) solenoid filter Features and Benefits The Rain Bird DV/DVF valve is the premium valve product chosen by more professionals than any other valve on the market. Its long history of reliable performance makes it the natural choice for your landscape. Its consistent, problem-free performance means you can spend less time thinking about your irrigation system and more time enjoying your landscape. Use DV/DVF series valves in locations where the use of a separate pressure vacuum breaker (PVB) or a double-check valve is required by city codes to protect against backflow. Check your local city codes to determine what type of valves are required. Buna-N, balanced pressure diaphragm with self-cleaning 90 mesh (200 microns) pilot water filter and captive spring Unique, easy-to-turn pressure assisted flow control mechanism (DVF models only) External bleed to manually flush the system of dirt and debris during installation and system start-up Accepts Rain Bird TBOS latching solenoid for use with most battery-operated controllers Operates in low-flow and Landscape Drip applications when a 200 mesh filter is installed upstream *Not recommended for use with two-wire control systems Product Details Pressure: 15 to 150 psi (1,0 to 10,4 bar) 100-DVF Flow Control Model: 0.2 to 40 gpm (0,05 to 9.085 m³/h; 0,01 to 2,52 l/s); For flows below 3 gpm (0,68 m³/h; 0,19 l/s) or any Landscape Drip application, use a 200 mesh filter installed upstream Water temperature: Up to 110°F (43°C) Ambient air temperature: Up to 125°F (52°C) Solenoid coil resistance: 38 Ohms 24 VAC 50/60Hz (cycles per second) solenoid power requirement: 0.450A inrush current, 0.25A holding current Height : 5 3/5" (14.2 cm) Length: 4 3/8" (11.1 cm) Width: 3 1/3" (8.4 cm) Rain Bird recommends flow rates that result in discharge velocities in the supply line not to exceed 7.5 ft/sec (2.3 m/s) in order to reduce the effects of water hammer Rain Bird residential valves cannot be used with PRS pressure regulating modules Compatible with ESP-LXIVM 2-wire systems when used with the IVMSOL. Not recommended for use in other 2-wire systems DV AND DVF VALVE PRESSURE LOSS (PSI) FLOW GPM 075-DV 3/4 IN. PSI 100-DV/100-DVF 1 IN. PSI
