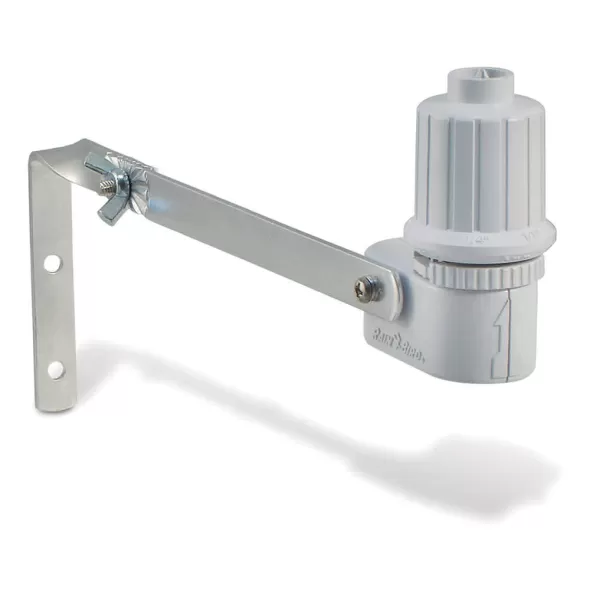

Rain Bird RSD-BEX Rain Sensor Sprinkler Shut-Off | RBLRSDBEX

Specifications

Brand	Rain Bird
Case Quantity	20
Input Current	3 A
Input Voltage	125/250 VAC
Material	Polymer
Sensor Size	6.5 x 5.4 in.
Sensor Type	Rain Sensor
Wired or Wireless	Wired
For Use With	24 VAC Control Circuits and 24 VAC Pump Start Relay Circuits
UPC	753800008157

Rain Bird Wired Rain Sensor RSD Series Sensor Connection: Wired Wire Length: 25' Type: Rain Sensor Features and Benefits The Rain Bird RSD Series rain sensor automatically shuts off your sprinkler system when it rains, so you don't have to worry when you're home or away. The RSD Series Rain Sensor easily connects to most irrigation system controllers. RSD Series rain sensors offers flexible, multiple rainfall settings which are quick and easy to adjust with a twist of the dial. Product Details Automatic rain shutoff prevents overwatering due to natural precipitation Robust, reliable design reduces service call backs Moisture sensing disks work in a variety of climates Different sensor mounts permit speed and flexibility on the job site Latching hinge maintains alignment Specs Mechanical Properties Multiple rainfall settings from 1/8" - 3/4" (5 - 20 mm) are quick and easy with just the twist of a dial Adjustable vent ring helps control drying time High-grade, UV resistant polymer body resists the elements Comes with 5" latching aluminum bracket Not compatible with ESP-SMT or ESP-SMTe controllers Electrical Specifications Application: Suitable for low voltage 24 VAC control circuits and 24 VAC pump start relay circuits.Not recommended for use with high voltage pump start, pump start relay circuits or devices Switch electrical rating: 3A @ 125/250 VAC Capacity: Electrical rating suitable for use with up to ten 24 VAC,7 VA solenoid valves per station, plus one master valve Wire: 25' (7.6 m) length of #20, 2 conductor UV resistant extension wire Certifications cULus [US and Canada], CE [European Union], RCM [Australia and New Zealand] Dimensions Overall length: 6.5" (16.5 cm) Overall height: 5.4" (13.7 cm) Bracket hole pattern: 1.25" (3.2 cm)
