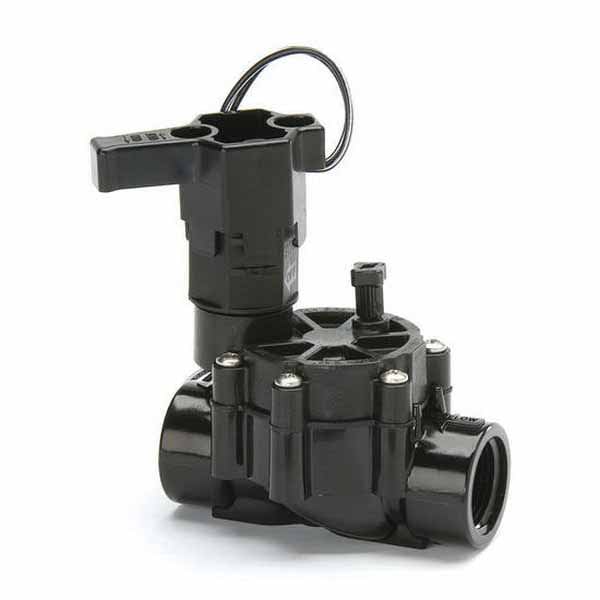

Rain Bird Sprinkler Valve, Black 15 - 150 Psi Dv Series Automatic In-Line | B72110

Specifications

Brand	Rain Bird
Body Material	Heavy-Duty Plastic
Case Quantity	20
Connection Size	3/4 in.
Connection Type	FNPT
Electrical Rating	24 VAC 50/60 Hz, 0.3 A Inrush, 0.19 A Holding at 60 Hz
Master Valve Status (Normally Open/Normally Closed)	Normally Closed
Valve Type	Sprinkler Valve
UPC	739460003237

Shop for Rain Bird DV In-Line Valve 1" 1 in. (26/34) standard in-line configuration Double-filtered pilot-flow design for maximum reliability Balanced-pressure diaphragm for long life Features and Benefits Rain Bird manufactures only the highest quality valves. Use DV/DVF series valves in locations where the use of a separate pressure vacuum breaker (PVB) or a double-check valve is required by city codes to protect against backflow. Check your local city codes to determine what type of valves are required. Product Details All of our valves work with any standard sprinkler timer Buna-N diaphragm with self-cleaning 90 mesh (200 micron) pilot water filter and captive spring Operates in low-flow and Xerigation® applications when the RBY filter is installed upstream 1.25 in. (3,2 cm) stainless steel phillips head screws Accepts latching solenoid for use with Rain Bird battery-operated controllers Dimensions Height: 4 1/2" (11.4 cm) Width: 3 1/3" (8.4 cm) Length: 4 3/8" (11.1 cm) Electrical Specifications 24 VAC 50/60 Hz (cycles per second) solenoid power requirement: 0.30 A (7.2 VA) inrush current; 0.23 A (5.5 VA) holding current Solenoid coil resistance: 38 Ohms Flow Range 0.2 to 22 GPM (0,05 to 5,0 m3/h; 0,01 to 1,39 l/s). For flows below 3 GPM (0,75 m3/h; 0,21 l/s) or any Xerigation® application, use a 200 mesh filter installed upstream Operating Pressure 15 to 150 psi (1.0 to 10.4 bar) Warranty 5 years
