Description
Specifications
| Brand | Regency Wire |
| Conductor Material | Bare Copper |
| Insulation Material | PVC |
| Insulation Thickness | 0.045 in. |
| Number of Conductors | 1 |
| Solid/Stranded | Solid |
| Voltage Rating | 600 V |
| Warranty | Limited |
| Wire Gauge | 16 Gauge |
| Wire Roll Length | 2500 ft. |
| Wire Type | Irrigation Wire |
| UPC | 785801825709 |

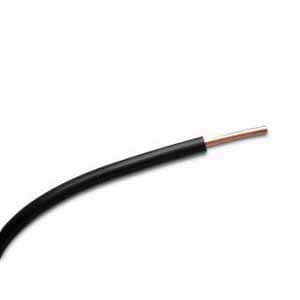

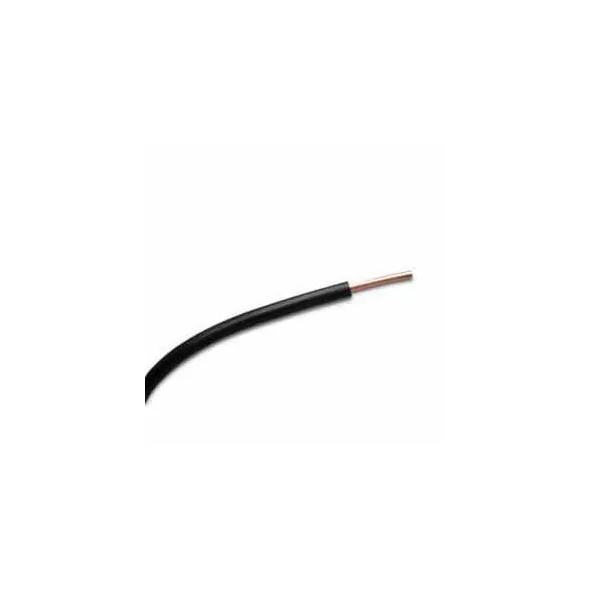

Regency's single conductor UF/TWU Irrigation Wire is manufactured for the purpose of direct burial power wire applications in accordance with Article 339 of the National Electric Code NFPA-70. Conductor construction is soft drawn bare copper meeting the requirements of ASTM Specification B-3 and B-8. Gauge sizes 18 thru 8 are solid conductors. Sizes 6 thru 4/0 are stranded conductors. The insulation is a high quality polyvinylchloride (PVC) for systems applications of up to 600 volts and conductor temperatures up to 60 C. The UF/TWU Irrigation Wire is constructed in accordance with Underwriters Laboratories, Inc. standard 493 and 83, as well as CSA 22.2 No. 75
