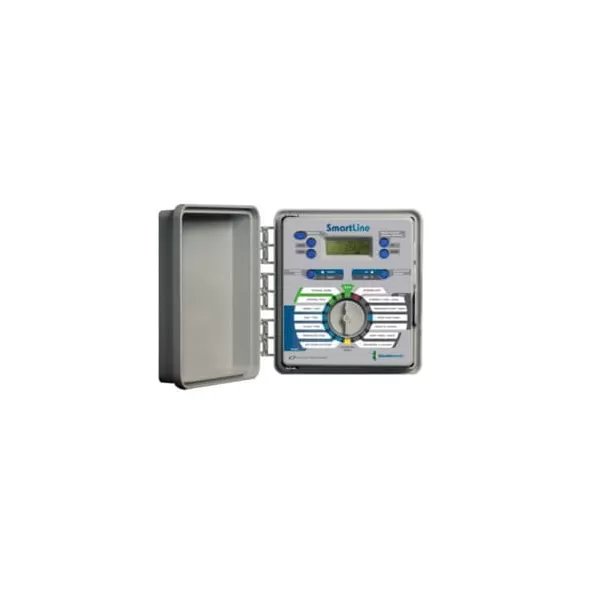

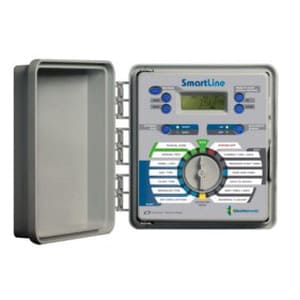

Weathermatic SMARTLINE 4 Station Indoor/Outdoor Controller | WMTSL1600

Specifications

Brand	Weathermatic
Fixed or Modular	Modular
Frequency Rating	60 Hz
Input Voltage	120 VAC
Material	Plastic
Number of Stations	4 Station
Output Current	1.6 A
Output Voltage	24 VAC
UPC	78053410279
Use Location	Indoor/Outdoor

Weathermatic Base Controller, 4 Stations Indoor/Outdoor 9 1/8" x 4" x 10-1/2" 4 independent programs ”“ each stacks or can operate simultaneously 8 start times per program Indoor/outdoor rated Zone run times settable from 1 min. to 9 hrs. 55 min. Rain/freeze sensing on/off button with tri-color LED indicator Rain delay of 1 ”“ 7 days SLW5/SLW1 Weather Station rain delay programmable from 0 ”“ 99 hours Seasonal % adjust by program, by month Omit time of day window, day(s) of week, and up to 7 calendar dates Programmable zone-to-zone delay 1 min. ”“ 3 hrs. Watering days: custom days of the week, odd/even, or interval days Run/Soak cycles by program Large backlit LCD display Non-volatile memory ”“ with no battery required Internal transformer with pre-installed 6' line cord (SL1600, SL1620 only) 2 simultaneous watering modes: basic mode and smart mode. Each zone can run in either mode independent of other zones, even in the same program. Basic mode: user controlled conventional operation Smart mode: daily automatic programming adjustments 5 user-selectable languages Simultaneous solenoid operation: 3 solenoids (SL800/SL1600), 5 solenoids (SL4800) Features and Benefits ZIP Code input or latitude input Sprinkler type input Plant type input Soil type input More/less ET tuning Watering run times Review menu displays accumulated ET deficits by zone Display maximum run time and minimum soak time Displays temperature readings (daily high/low) for previous 5 days Accumulates total run times by zone from the last reset date Clear deficits for all zones Extended rain delay programmable from 0 ”“ 99 hours Zone-to-zone delay Master valve timing sequence with zone valve programmable Master valve/pump start operation assignable On/Off by zone Clear program function Clear all function Grow-in program Two independently programmed master valves Normally open or normally closed master valve operation Real time milliamp display Flow sensor data review (requires SmartLink® Aircard) Real time flow display (requires SmartLink® Aircard)
