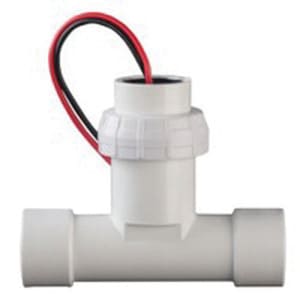

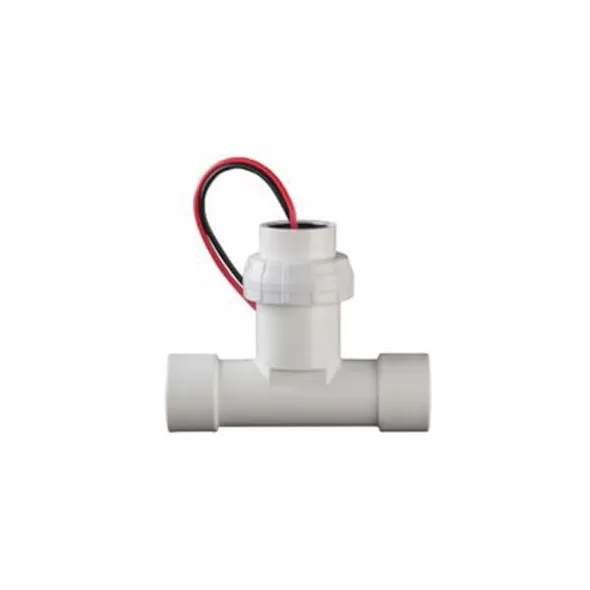

Wired 1.5" PVC SLFSI Series 2 Wire Flow Sensor | WMSSLFSIT15

Key Features

• Threaded retaining nut instead of retaining pin makes it easier to service in a valve box, more moisture resistance for electronics resulting in longer life
• Molded mounting tee for improved control of dimensions for more consistent measurement and improved performance at low flow
• Unique 4 bladed lightweight impeller measures lower flow rates, detects flow as low as 20% of published minimum rate of other impeller sensors
• Smart electronics detection system contains a micro-processor for better signal filtering and conditioning, detection circuit also contains superior over-voltage and overcurrent protection
• Affordable enough to install on nearly all new and old systems
• 2 Single conductor solid copper U.L. listed #18 AWG leads with direct burial insulation
• Wiring may be extended up to 2000 ft. with direct burial, twisted pair shielded
• Transducer Performance - 600 uA at 35 VDC Quiescent current, 1.2 VDC at 50 mA On State
• Hope impeller, tungsten carbide shaft, type 1 pace saddle, sensor housing, retaining nut, Buna-n o-ring
