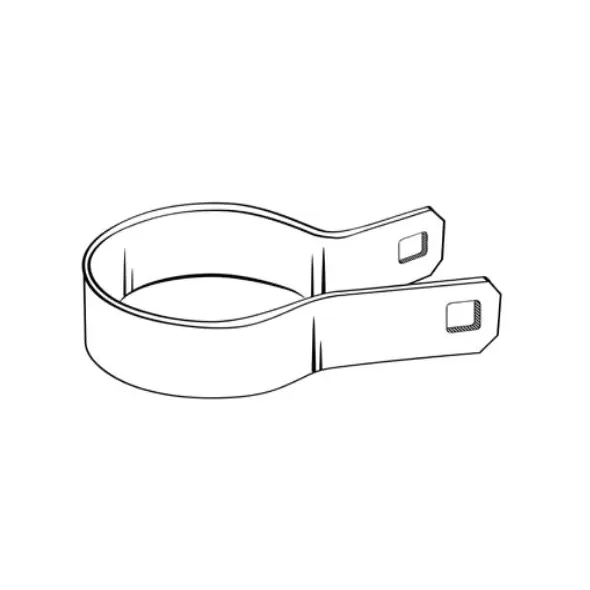

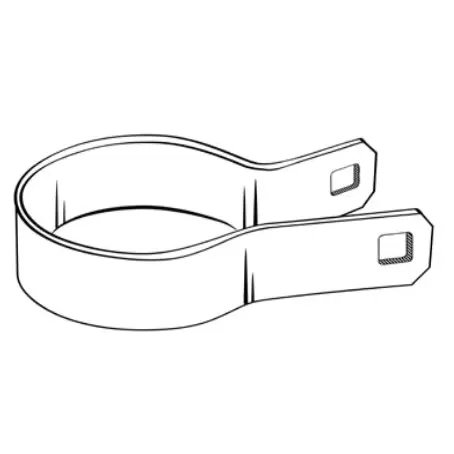

Tension Band, (L) 2-3/8" Pressed Steel or Cast Iron | FG238TBR

Specifications

Length	2-3/8 in.
Material	Galvanized Steel

Tension and brace bands are fabricated from pressed steel or cast iron and galvanized with a minimum of 1.2 oz/ft2 (366 g/m2 ) of zinc, or aluminum alloy 6063- T5, 6063-T6, or 8176-H19 (ASTM B211/ B211M or B221/B211M). Tension bands have a minimum material thickness of 14 ga. (0.074 in. (1.88 mm) and a minimum width of 3/4 in. (19 mm). Brace bands have a minimum material thickness of 12 ga. (0.105 in. 2.66 mm) and a minimum width of 3/4 in. (19 mm).
