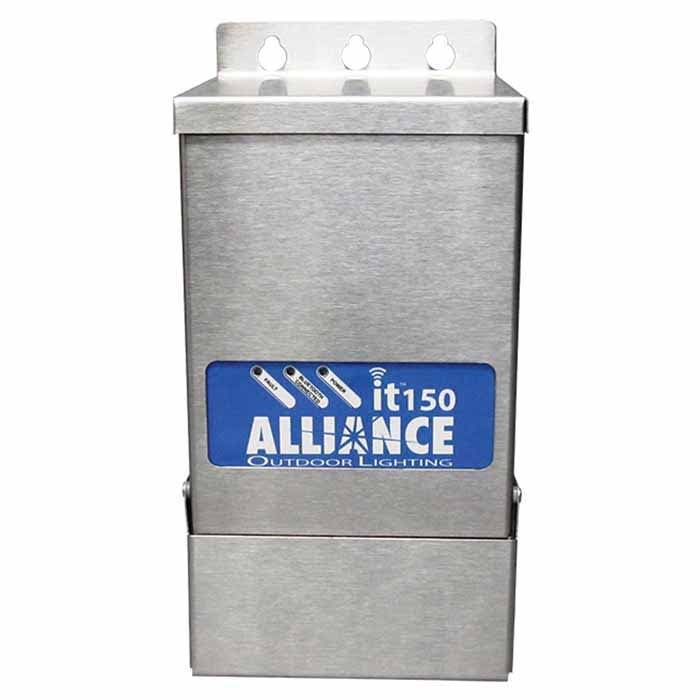

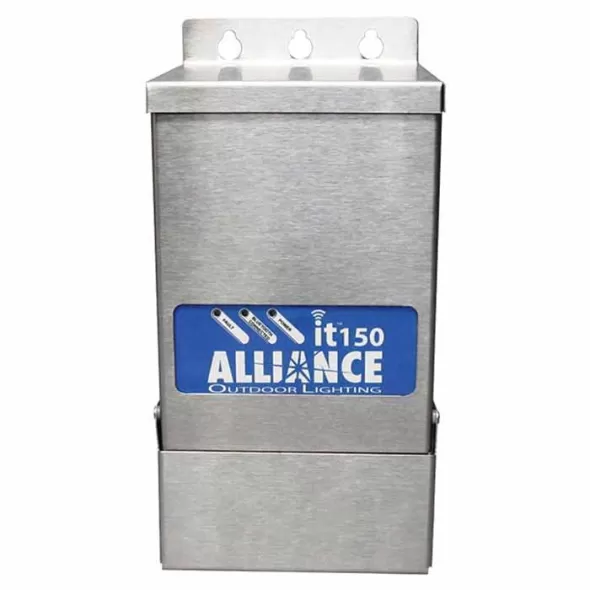

Alliance Outdoor Lighting Transformer, 120 V Primary | IT150

Specifications

Brand	Alliance Outdoor Lighting
AMP Rating	1.5 A Load
Housing Material	Stainless Steel
Number of Taps	2
Power Rating	150 W
Primary Voltage	120 V
Voltage	14/14 V
Wattage	150W

Shop for Alliance Outdoor Lighting Transformer 150 Watts Intelligent transformer Low voltage power supply for indoor/outdoor Features and Benefits Max Amperage (Load): 1.5 amps Max Input (Primary Voltage): 120volts Secondary Voltage: 12 volts* Available Voltage Taps: 14v, 14v Exterior Construction: Stainless Steel Warranty: Lifetime Certification: UL Listed to U.S. and Canadian safety standards for low voltage landscaping lighting. Product Details Multiple taps (14v) Bluetooth ready Astronomical timer Phone app driven Pre-loaded programs Quick Start Guide This Quick Start Guide gives you the basic mounting and device application (app) download instructions for your newly purchased Alliance Intelligent Transformer ("it"). This unit is equipped to communicate using Bluetooth Smart and works with your smartphone to make setup and programming your Intelligent Transformer quick and easy. Mounting Installation This unit is suitable for indoor or outdoor use. WARNING - Risk of Fire. If the installation involves running wiring through a building structure, special wiring methods are needed. Consult a qualified electrician. WARNING “ Risk of Electric Shock. Install power unit 5 feet (1.5m) or more from a pool, spa, or fountain. Where the power unit is installed (a) indoors within 10 feet (3.0m) of a pool, spa, or fountain or (b) outdoors, connect the power unit to a receptacle protected by a GFCI. An outdoor power unit must use a GFCI protected hooded flush-type cover plate receptacle marked “Wet Location”. WARNING - Do not use an extension cord. The transformer must be properly grounded per National Electric Code. Mount the "it" unit at least 12 inches (0.3m) off the ground and away from direct irrigation spray. Install in an open-air setting and do not bury. It is best to centrally locate the transformer between fixtures. Use the mounting template at the top and bottom of this page to locate the screws to mount the “it” unit. Calculate total fixture load and add 10%. This total should not exceed the rated transformer output. Do not overload. You will be able to verify the output load power using the “Power Meter” screen on the Alliance “it” app loaded onto your phone or tablet (see app download instructions below). You may use any combination of output terminal lugs for your fixture wiring. Use 12 gauge or larger direct burial cable and strip insulation 3/8 inch (9.5mm) minimum, twist wire strands, and insert into the terminal lug. Each output lug will hold up to two 12 gauge wires. Tighten terminal lug screws firmly and re-tighten after one week. Plug the "it" unit power cord into a live AC outlet. The green “POWER” LED will turn on when AC is present. Device Application Download Instructions After completing the mounting instruction above, download, install, and run the Alliance Ourdoor Lighting app on your smartphone. This step is required to complete "it" setup. Verify that your smartphone is Bluetooth Smart capable (required for "it" compatibility). Turn your device's Bluetooth and Location Services on. For Apple devices, go to the "App Store" or for Android devices go to the "Play Store" and search for “Intelligent Transformer”. The search should return with an app entitled "Alliance". Download the app to your device. Plug the "it" unit into a live AC outlet. Open the Alliance “it” app on your smartphone. Select the "it" unit the serial number you are installing (the serial number will appear on the app and should match the serial number on the transformer's rating label). After selecting your unit, the yellow “BLUETOOTH CONNECTED” LED on the unit will begin to blink, indicating that the unit has connected wirelessly via Bluetooth to your smartphone. The GPS coordinates of your location and the current date/time are automatically transferred from your smartphone to the "it" once the Bluetooth connection is made. The “DUSK TO DAWN” program is set as the default program. This program will turn the lights on at dusk/sunset and off at dawn/sunrise all nights of the week. To choose a different program or to define custom timer settings, visit the “Programs” screen on the Alliance “it” app. Note: If your smartphone's location services are turned off, the Alliance “it” app will prompt you to enter the local zip code. Once the zip code is entered, the "it" location is automatically saved. On the “Dashboard” screen, press the lighting fixture symbol to turn the fixtures on or off to verify the system is working properly. Press the three bars symbol in the top left corner of the app. This displays the app menu and allows you to select other screens in the Alliance “it” app. For detailed instructions on how to select other preprogrammed schedules, customize a schedule, or monitor Getting Started Step 1: Download it Scan the QR code or go to the Play Store if you have an Android phone or the App Store if you have an iPhone. Search "Intelligent Transformer" and look for the "it" app icon. Download and install the app. Step 2: Plug it in Plugin your transformer and bring up the app on your phone (be sure the Bluetooth is enabled). The app will find your transformer by its specific serial number. Click on the serial number to start using your transformer. You could rename your transformer to anything you like. Step 3: Program your settings Use your phone to set your desired on and off times, or just let "it" use the default setting of sunset to sunrise.
