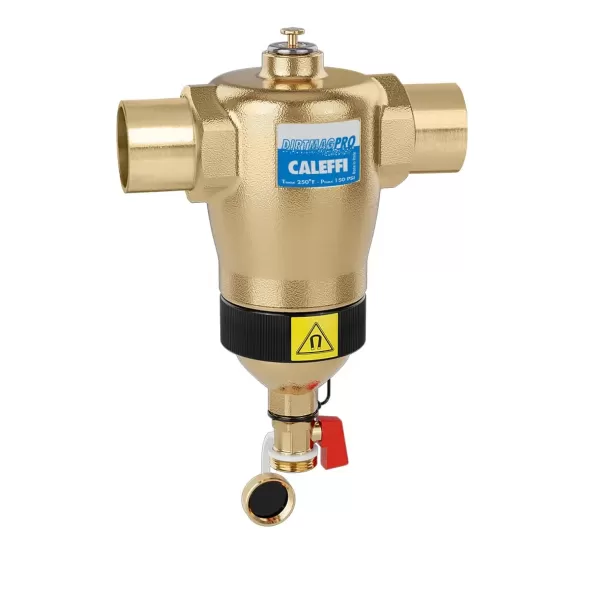

CALEFFI DIRTMAGPRO SWEAT DIRT SEPERATOR W/ MAGNET 1-1/4" X 1-1/4"

Specifications

Brand	Caleffi
Micron Rating	5 micron
UPC	8016615659832

In heating and air conditioning control systems, the circulation of water containing impurities may result in rapid wear and damage to components such as pumps and control valves. It also causes blockages in the heat exchangers, heating elements and pipes, resulting in a lower thermal efficiency within the system. The dirt separator removes these dirt particles from the fluid, collecting them in a large collection chamber, from which they can be drained even while the system is in operation. This device is capable of efficiently removing even the smallest particles, with extremely limited head loss. The DIRTMAG PRO dirt separator with dual magnets extends the caleffi dirt separator family by adding a powerful neodymium magnetic stack inside a drywell inserted into the top of the body within the flow stream. Additional magnetic flux increases the speed of magnetite (ferrous impurities) removal from the hydronic fluid for maximum protection. Insulation shells are available separately.
