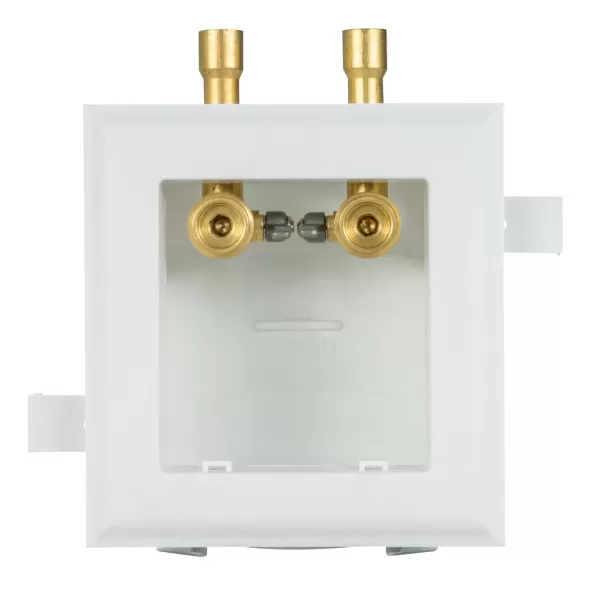

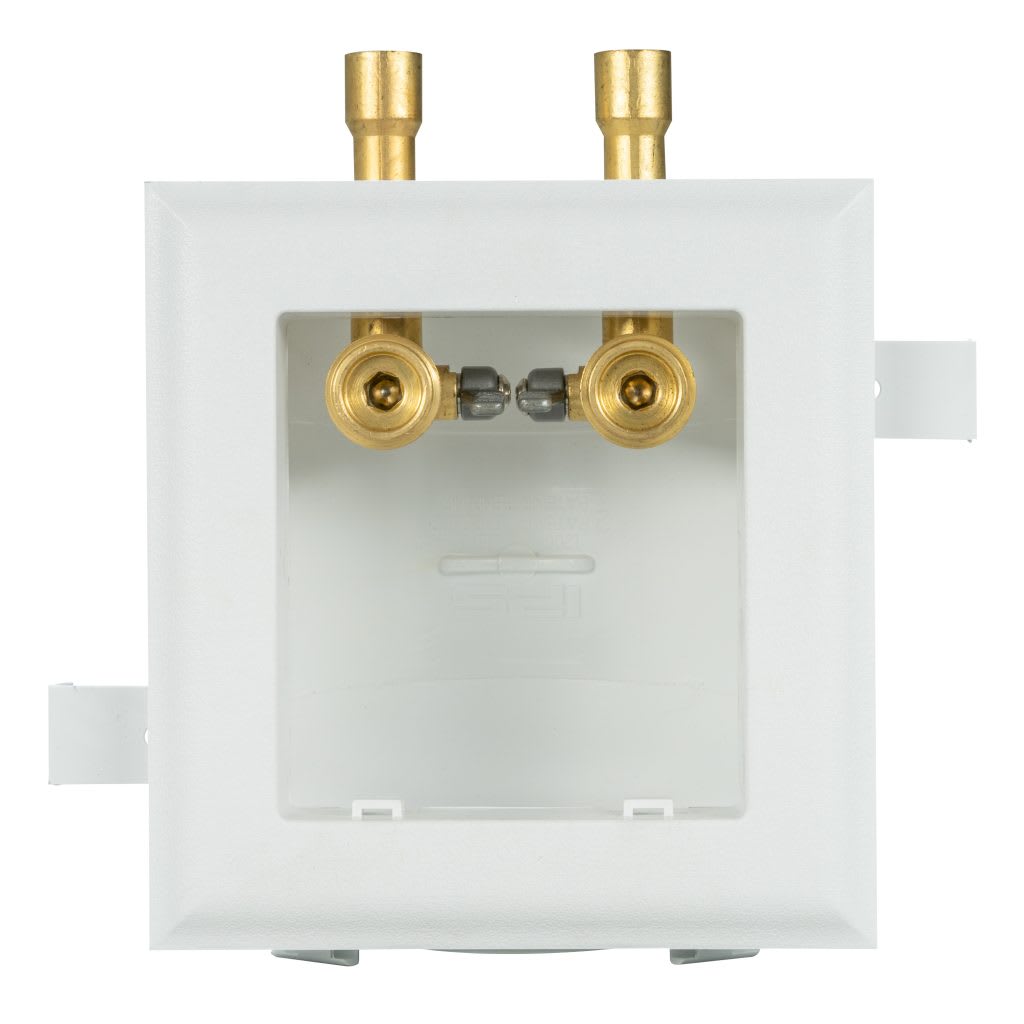

Washing Machine Outlet Box, FR, WMOB TM F1807 CONX | 83038_alt

Specifications

Type	Outlet Box
UPC	012181830383

The water-tite multibox fire-rated washing machine outlet box is configured for simple and secure installation, making it a reliable choice for contractors and homeowners. This washing machine outlet box is ETL certified and is fire rated for both one- and two-hour-rated walls. It has an intumescent pad attached to the back of the box that swells in the event of fire, acting as an insulator to prevent excessive heat from passing through the structure. This single-box unit has multiple valve knockouts and two drains: one for a standard 2-inch washing machine drain and an optional 1-inch drain to pipe the box to the DWV (drain, waste, and vent) system. The supply valves are durable forged brass with an anti-rotational design, making them long-lasting and easy to access and use. This one-piece washing machine outlet box features integrated mounting flanges and can be installed more quickly than separate drain and valve boxes. It comes with a faceplate (6-1/2 inches wide by 6-7/8 inches high) that is interchangeable with all multibox outlet boxes and is able to accommodate up to two sheets of 5/8-inch drywall. The box has top and bottom stabilizer-bar slots and nail slots for optional extra support. Choose from a standard pack with an attached faceplate or a contractor pack with an unattached faceplate.
