DIY Drip Irrigation System: How to Build an Efficient Garden Watering Setup

DIY Drip Irrigation System and Its Benefits

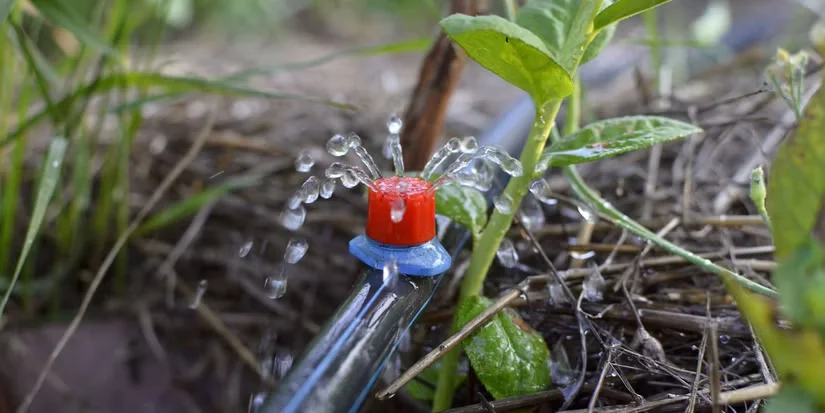

Drip irrigation is a way to water plants that uses tubing, emitters, or micro-drip lines to slowly apply water to the soil. Rather than watering a large area, it delivers water to the root zone where it's needed.

• Saves Water: The major benefits of drip irrigation are water savings. Water can be wasted with sprinklers due to wind drift, evaporation, and run-off. Drip irrigation helps to avoid these losses by delivering water directly to the roots.
• Promotes Healthier Plants: It is good for the roots to be moist. It also helps to keep moisture-related diseases away by keeping the leaves dry. This creates a healthier growing environment for vegetables, herbs, and flowers.
• Reduces Daily Work: Drip irrigation is faster than hand watering, especially for large gardens. Drip irrigation systems can be set up to automatically water the garden.
• Budget-Friendly Option: A DIY system can be constructed with inexpensive materials. Homeowners can start small and then add to the system as needed.

Materials Needed for a DIY Drip Irrigation System

A DIY drip irrigation system can be built with affordable and easy-to-find materials available at the Growcycle marketplace.

• Garden Hose: Main water supply for the system.
• Main Drip Tubing: Carries water through the garden or planting area.
• Feeder Tubing: Carries water to individual pots or plants.
• Drip Emitters: Slowly deliver water to the roots.
• Connectors: Joins tubing, splits lines, or makes turns.
• Stakes: Secures the tubing and the drip system.
• Filter: Prevents debris from getting into emitters.
• Pressure Regulator: Prevents damage from water pressure.
• Timer: Saves time and automates watering.

Step-by-Step: How to Build Your DIY Drip Irrigation System

Building a DIY drip irrigation system is simple when it is done step by step. A good setup helps plants get enough water while saving time and reducing waste.

Step 1: Plan Your Layout

Measure the garden beds, pots and lawn edges where water is required first. Indicate the positions of the plants and verify the spacing. This assists in determining where the tubing must be. Next, decide where to run the main tubing and any smaller lines. A simple drawing can make installation easier.

Step 2: Connect to the Water Source

The watering system usually starts from an outdoor tap or garden hose. In case of automatic watering, a timer can be added initially. Then, add a filter and pressure regulator. The filter helps prevent dirt from blocking the emitters, while the regulator controls water pressure. The pressure regulator assists in the safeguarding of the high water pressure against the tubing. Then, attach the main tubing to the water source.

Step 3: Lay the Main Tubing

Lay the main line down along rows, flower beds, or the edge of the lawn. Make sure it is near the plants so you can water the roots. Stake or clip the tubing in place. This helps keep the line in place.

Step 4: Add Feeder Lines or Emitters

Punch holes in the main tubing. Plug in feeder lines or drip emitters near the plants. Pots usually only need one emitter. For bigger plants, you may need two or more emitters to ensure that the water reaches all the roots.

Step 5: Flush and Test

Before connecting the ends of the tubing, run the water for a few minutes. This flushes out any dirt or debris. Then seal the ends and turn on the system. Look for leaks and ensure all plants get water. Adjust the flow if needed.

Step 6: Set a Watering Schedule

After testing the system, set a watering schedule. It's best to water early in the day when the weather is cooler. A timer can be set to automatically turn the watering system on and off. This time should be adjusted as needed for weather and plant factors.

Best Layout Tips for Gardens, Pots, and Lawns

The best DIY drip irrigation system distributes water evenly to plants when well designed. It also helps conserve water and simplifies maintenance.

• Gardens: Vegetable gardens are best in straight rows. The main line can be laid along each row to ensure all plants get watered. It's tidy, efficient, and can be easily modified as vegetables grow.
• Potted Plants: Small tubes can be used for DIY drip irrigation systems for potted plants. The little tube will bring water to one pot. This ensures each pot receives sufficient water.
• Lawns: A DIY drip irrigation system for lawns is best used on edges, narrow strips, or brown spots. It may not be the most suitable for large lawns. But it can be used to solve problem areas for sprinklers.

Tip: Avoid placing emitters directly on stems; keep them near the roots. This allows water to penetrate the soil so roots can absorb it and minimizes the risk of stem rot.

The Bottom Line

Creating a DIY drip irrigation hose system for gardens, pots, and lawns is a budget-friendly way to water efficiently. It conserves water, reduces effort, and helps plants grow healthier by delivering moisture directly to the roots.  Using durable tubing, emitters, filters, and timers, gardeners can create a system that will last many years. Growcycle has a variety of drip irrigation products to help build a simple homemade drip irrigation setup for gardens and lawns.
