How to Adjust Sprinkler Heads for Even Coverage

Why Even Coverage Matters

Even coverage means all areas of the lawn receive an adequate amount of water. With poor coverage, you will have dry spots, uneven growth, fungus, and runoff on the lawn. It increases your water bills as well. Adjusted sprinkler heads aid in proper adjustment:

• Healthier Plants: When water is spread evenly, the roots grow deeper.
• Water Efficiency: The amount of water falling on the sidewalks and the driveways is less, and less water is washed off by the wind.
• Lower Costs: The efficient systems operate in fewer minutes per zone, thereby requiring less investment in repairs.
• Eco-friendly Landscaping: It reduces runoff and conserves water in the area.

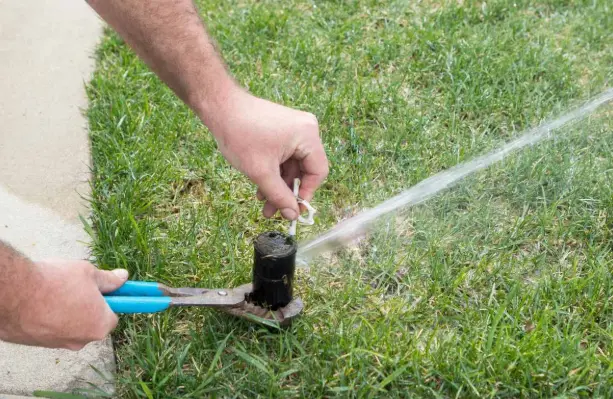

Pre-Adjustment Inspection & Preparation

A quick check before turning a single screw saves time.

1. Walk the Zones: Turn on each zone for 1-2 minutes. Search for dry spots, wet spots, and water that is spilled on hard surfaces. Identify any problem areas by flagging or chalking them.
2. Check each Head: Search for crooked heads, buried in the earth, or caught in the grass. Ensure that the riser is popped up fully. Remove any dirt, grass trimmings, or mineral deposits on the nozzles.
3. Look for Leaks and Misting: Coverage and pressure are reduced by visible leaks. When there is fine misting, the pressure is likely excessive; the water is turned to mist and blown off rather than drying the soil.
4. Gather the Right Tools: The tools and materials required will include a flat-head screwdriver, a rotor adjustment key/tool, a nozzle pull-up tool/small pliers, replacement nozzles and filters, Teflon taping tape, and a shovel to remove the heads that must be moved or replaced.
5. Map the System: Trace the areas and indicate the locations of the heads. Point out trouble spots. A simple map speeds up fine-tuning later.

Sprinkler Head Type

The kind of head you have determines what is changeable.

1. Fixed Spray (pop-up) Heads: These are fan-shaped sprays. The majority allow you to adjust the angle and reach using a tiny screw on top. They are applied to small areas such as garden beds and small lawns.
2. Rotors / Gear-driven Heads: For medium turf areas, an adjustable rotor sprinkler head for mid-size lawns lets you set arc and radius precisely. The angle and the reach are adjustable using a special key or a screwdriver.
3. Bubblers, Drip, and Specialty Nozzles: These usually don’t “spray” broadly, so adjustments are limited. If coverage is wrong, replacement or repositioning may be better. In tight planting beds, switch to the best drip irrigation systems for lawns to eliminate overspray while delivering uniform moisture.

Step-by-Step Sprinkler Heads Adjustment Process

The primary objective of the sprinkler head replacement process is to ensure that water is distributed uniformly across the lawn and does not flow onto sidewalks or roads. Water the area at a time. After every adjustment, turn on the water and check whether it spreads evenly.

1. Straighten and Set Height: The problems occur when the heads are tilted or buried deep. If a head sits too low after leveling, a swing joint riser kit to fix low sprinkler heads lets you raise it without re-plumbing the whole joint
2. Clean or Replace Nozzles: Nozzles can become clogged, resulting in uneven spray. Switch off the water, remove the stem, nozzle, and rinse the nozzle and filter. In case the spray is not even, simply change the nozzle.
3. Adjust the Arc and Radius: The arc defines the water flow. When it has spray heads, a screwdriver is used to adjust the spray pattern. For rotor heads, a rotor key helps set the direction. In windy or medium-throw zones, switch to an adjustable rotary nozzle for improved uniformity, and ensure the arc and radius match neighboring heads.
4. Run and Observe: Once adjusted, activate the zone and check to see that there is no spot coverage. Use a simple catch-can audit to measure distribution uniformity (DU).
5. Fine-Tune the Zone: Special nozzles may be required on special corners, strip nozzles on narrow strips. For precise runtimes, an 8-station smart controller with catch-cup calibration can program itself using your distribution uniformity test.

Tips to Prevent Overwatering and Dry Spots

Such practices make your lawn green, save water, and prevent runoff.

• Maintain Head-To-Head Coverage: If a head cannot access its neighbor, adjust the nozzle to the correct size. Use a dual-orifice spray nozzle to fix brown spots near heads for better close-in watering.
• Use Pressure Regulation Where Needed: Install pressure-regulating heads or valves to minimize waste and ensure even spray.  On larger systems, a 40-PSI wide-range regulator for mixed zones helps keep arcs and radii consistent across the zone.
• Trim Vegetation Around Heads: Some tall grasses or shrubs block the spray and form some dark spots. Make a small opening in each head.
• Adjust for Slopes and Clay Soils: Set shorter, repeated runtimes using cycle-and-soak scheduling for slopes and clay soils. This is good to facilitate soaking up and conserving water.
• Seasonal Checks: Adjust watering times with the changing seasons. Use a wireless rain/freeze sensor to skip watering after storms prevents runoff and icing.

Call a Professional for Sprinkler Heads Adjustment

Call a professional if:

• You feel that the water pressure is not balanced or that there are numerous weak spots.
• Even after cleaning and adjustments, the spray pattern remains irregular.
• Leaks or broken heads should be replaced.
• There are still gaps in the coverage in big or complex landscapes.
• You do not know which nozzle sizes and spacing are the right ones.
• The system combines the various rotors and sprays in the same zone, which is not balanced.
• You are updating or renovating your landscaping.

Benefits of Hiring a Professional

Hiring a professional isn’t just about convenience; it’s an investment in your landscape’s health and efficiency. Here’s why it’s worth it:

• Expert Diagnosis: Experts will easily identify the actual causes of uneven water in your yard. They seek clogged filters, low water pressure, or a poor design. They measure water movement with special gauges and mapping equipment and ensure that none of the zones are overloaded.
• Precise Adjustments: Professionals will understand how to position each sprinkler in terms of angle, distance, and direction. They follow the manufacturer's regulations, so each sprinkler is in the correct location and does not consume a lot of water.
• Water and Cost Savings: An optimized system can reduce water consumption by up to 30%. In the long run, it leads to huge savings, particularly in areas where water is costly or restricted.
• System Longevity: It is not only that the professionals set heads but also test valves, pipes, and controllers. It is a maintenance that prevents leakages and saves you on future repair expenses.
• Customized Solutions: Each yard is unique. A technician will be able to propose newer nozzles, pressure regulators, smart controllers, or drip zones for specific plants. This is a water-saving plan that makes plants healthy.

Find a trained irrigation technician to spot underlying issues, adjust all sprinklers properly, and ensure the entire system is watered evenly. A large number of technicians offer fast service and seasonal maintenance year-round.

The Bottom Line

To have a healthy green lawn, the grass should be watered well and evenly, and it begins with proper sprinkler head adjustment. Most homeowners can handle minor problems independently with a few simple tools and close checks. If you have tried these steps and still have dry or wet spots on the lawn, you should call a professional. Tune-ups and regular maintenance will conserve water, reduce bills, and keep the yard fresh and healthy throughout the year.
