How to Use Drip Irrigation for Raised Beds Without Overwatering

Planning the Raised Bed Drip Irrigation Layout

A successful installation begins with proper planning. It is easy to design an efficient layout when one is aware of the raised bed size, the water source, and the crops to be grown.

1. Measure the Raised Beds

Measure the length and width of each raised bed before anything is installed in any tubing. Narrow beds may require only a single drip line, while wide beds typically require two or three parallel lines to saturate the entire bed.

2. Decide on Main and Lateral Tubing

The primary line normally follows an edge or follows the center of the raised bed. Based on this line, lateral tubes branch out to distribute water evenly. The tees and elbows enable one to easily move the tubing through the bed and to access the entire crop rows.

3. Choose an Effective Layout

Different layouts are available depending on the bed size:

• Beds Under 3 Feet Wide: One center drip line may be enough.
• Beds 4 Feet or Wider: Two or more parallel lines, which are spaced evenly, should be used to maintain a uniform amount of moisture.
• Beds Containing Mixed Crops: Divide the beds or lines to ensure you can control the amount of water each type of plant receives.

Correct Drip Line Spacing for Vegetables

The spacing of emitters is also significant to the distribution of moisture. Most raised beds perform well with emitters spaced 6 to 12 inches apart. Close spacing is used with shallow-rooted veggies such as herbs and lettuce. Tomatoes, peppers, and squash plants have deeper roots and should be spaced farther apart.

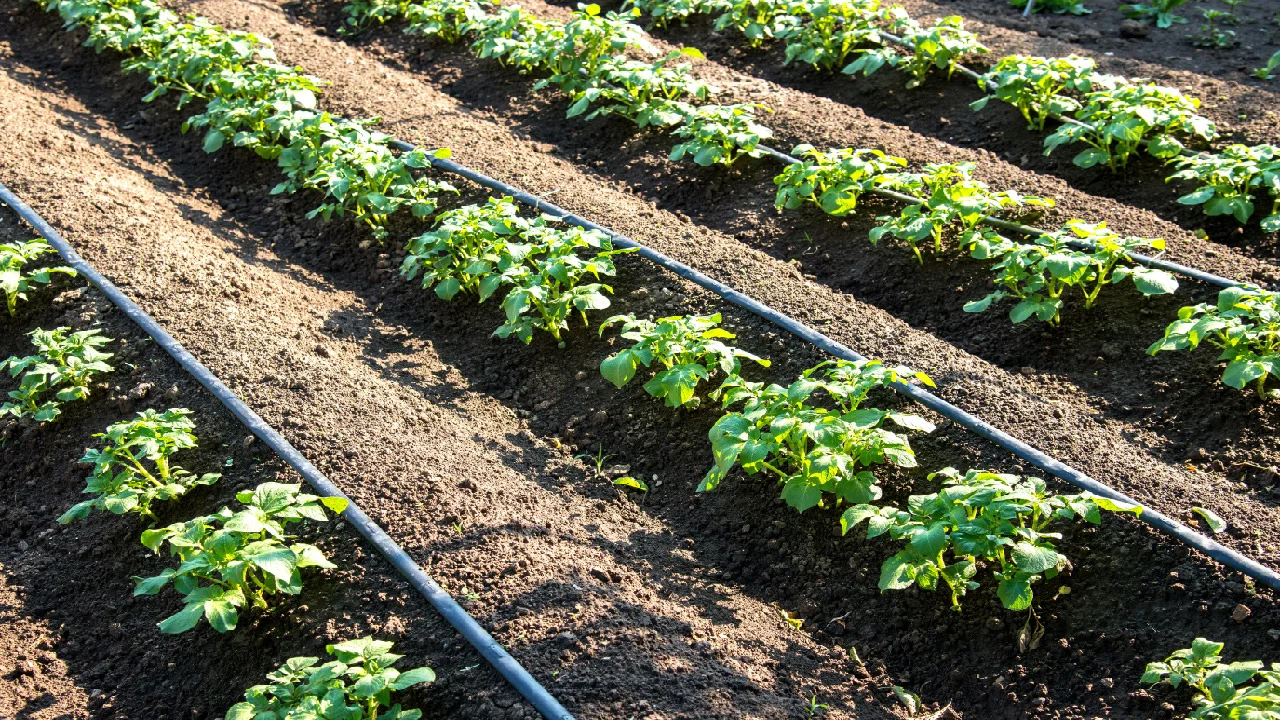

Install drip lines near the roots of the plants to conserve water. In the case of small seedlings, place the lines adjacent to the seedlings. Since roots spread naturally, as the plants mature, the lines continue working as the roots grow.

Adjusting Flow Rates for Different Plants

Not all crops require the same amount of water. Drip systems make it easy to adjust flow rates by choosing the right emitters.

• Low-Flow Emitters: Low-flow emitters emit approximately 0.5 gallons per hour. They are suitable for planting herbs, greens, and those that do not take much water. They prevent the soil from becoming wet and keep the plants moist.
• Medium-Flow Emitters: Medium-flow emitters yield approximately 1 gallon per hour. They assist in the vegetable growth and prevent too much wetness in the soil.
• High-Flow Emitters: At high-flow emitters, approximately 2 gallons per hour are emitted. Large or thirsty plants such as tomatoes, cucumbers, squash, and melons require them due to their deep or far-reaching roots.

Best Practices to Prevent Overwatering

A large amount of water may cause plants to lose nutrients, rot roots, and become fungal. Healthy soil is maintained by good practice habits of the system.

• Use Pressure Regulators and Filters: The regulator ensures that all sprinklers receive an equal supply of water. The filters ensure the dirt does not enter the lines and the water flows continue.
• Set Automated Timers: Timers prevent the system from running too long and maintain a constant watering schedule. It is preferable to water in the morning since water is uptaken by the soil better in the morning when it is cooler.
• Monitor Soil Moisture: Measure with a meter or finger. This tells whether the bed is either too wet or too dry. The ground must be wet, but never sloppy or sticky.

Drip Irrigation Installation and Maintenance

The simplest type of drip system involves hooking the main tube to a hose or an outside tap. A backflow preventer secures the household water. A filter and a regulator are added to maintain constant pressure.

Installation Steps

1. Install the primary line in a way that it will serve all the beds or connect several beds with connectors.
2. Make side lines in every raised bed.
3. Wrap the pipes with posts to keep them in place.
4. Test the system to ensure that all sprinklers are operational.

Maintenance Routine

• Wash the system at the onset and at the end of the growing season.
• Check the sprinklers for leaks, twists, or clogs.
• Replace worn-out parts as needed to maintain uniform watering.

How to Hire Drip Irrigation Installation Services for Raised Beds

1. Identify irrigation providers for raised beds, not just lawns.
2. They should go to your farm to examine the bed setup, the crops, and the water pressure.
3. Ask them to provide you with a clear plan that would demonstrate the distance between the emitters, the direction of the tubes, and the quantity of water flow.
4. Compare their prices, the materials they use, warranties, and maintenance plans.

Benefits of Hiring a Drip Irrigation Professional

The irrigation system will work a lot better when handled by a trained professional.

• Expert System Design: Experts determine the number of emitters, the distance between them, and the speed of water moving in each raised bed. They identify issues that first-time learners usually overlook.
• Lower Risk of Mistakes: In case the system is installed improperly, then it may leak, unevenly distribute water, or even waste it. A professional divides such risks at the initial stage and makes the system work.
• Better Water Management: Experts turn the timers on and off, propose different lengths of watering plants, and switch the zone of plants that need less water. This makes crops healthy and consumes water effectively.
• Long-Term Durability: Good materials and installation will ensure the system is long-lasting and less expensive to repair.

You can have it easier by finding a trusted Drip Irrigation Pro for Raised Beds in the Growcycles verified network. A seasoned installer would be able to visit your garden, recommend the most effective layout, and install a dependable system that would save money by saving water and keeping the plants healthy throughout the year.

The Bottom Line

Drip irrigation for raised beds makes watering more efficient. Gardeners need only the right setting (in layout and spacing) to maintain soil at a steady moisture level without being excessively watered. Whether installed as a DIY project or by a professional, a well-planned drip system saves water, protects plant roots, and supports healthier growth all season long.
