Solar Water Pumps for Gardens and Ponds: Efficient, Eco-Friendly Watering

Ponds and gardens can only remain healthy and beautiful with a constant water supply. A lot of people either use electric or fuel-powered pumps to maintain the flow of water, but these conventional pumps also have a number of issues. Electric pumps consume energy and this can increase the household bills. Conventional pumps also have some impact on environment. Fuel pumps produce smoke, noise, and fumes immediately at the location and this disturbs the serene nature of a garden or a pond.

A better alternative is to use solar water pumps. These pumps collect the sun's energy with solar panels, and use it to power the pump. Some systems have batteries to preserve excess energy, while others operate directly during the day. Since they operate using renewable solar energy sources, they eliminate the high costs, pollution and maintenance problems associated with use of traditional pumps.

What Is a Solar Water Pump?

A solar water pump is a system that supplies water by using sunlight as an energy source. But instead of being powered by the grid or fuel like petrol or diesel, it runs on solar panels. These panels, also known as photovoltaic (PV) panels, soak up sunlight and produce electricity. The electricity is utilized to power a pump that pushes water from one location to another, including from a pond, well or tank into a garden, fountain or solar powered garden irrigation.

Main Components

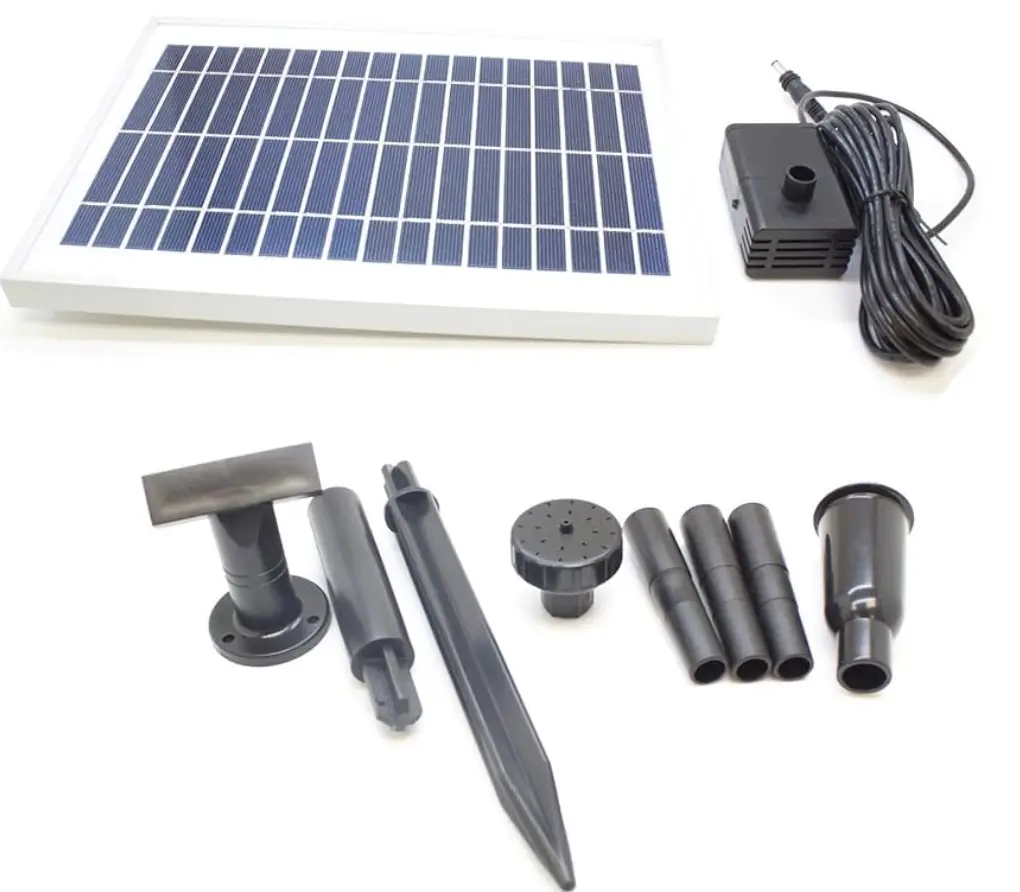

A typical solar water pump consists of three main components:

• Solar Panels (PV panels): They accumulate the sun’s rays and turn them into power.
• The Pump: This refers to the pump that moves water from one part of the system to another. Pumps can be different types:
• Surface pumps are mounted at ground level and are ideal for shallow sources.
• Submersible pumps sit in the water and can push water to the surface from deeper levels.
• Floating pumps sit on a pond or lake and draw water directly from it.
• Optional Batteries or Controllers: Other systems incorporate batteries as energy storage during rainy days or even at night. Controllers aid in the control of power, ensuring that the pump operates as designed and saving the system from substantial wear.

Types of Solar Pump for Pond Aeration

The electric type of solar water pumps can also be categorized according to the kind of electricity that they use:

• DC (Direct Current) Pumps: These run from the solar panels directly and do not require conversion. They tend to be more efficient and easier to install.
• AC (Alternating Current) Pumps: For these pumps, an inverter is required to convert the solar panel’s electricity from DC power into AC power. They come in handy when replacing a conventional pump with solar.

How They Work

A solar water pump functions primarily based on sunshine. The panels gather energy when the sun is shining and then the pump extracts it from the ground. The brighter the sun, the more power is available, and the better the pump performs. On overcast days, the pump may function more slowly, and if no batteries are part of the system, it will stop at night. The solar power varies during the day so the pump needs to be matched with the available power. This is called power matching.

Benefits of Using Solar Water Pumps

Solar water pumps offer a number of benefits to homeowners and gardeners. They not only make sense, but save money and protect the environment.

1. Reduced Energy Costs

Solar pumps, which rely on the sun’s energy, don’t have to use electricity from the grid. This implies that there will be no additional fee on electricity bills in case the pump operates several hours a day. The savings can be huge in the long run as opposed to conventional pumps that make use of paid sources of energy.

2. Environmental Benefits

Solar water pumps promote the use of clean energy. They don’t burn fuel or rely on electricity that’s mostly generated from fossil fuels. This helps to minimize carbon emissions and promotes a greener way of life. For gardens and ponds, that means the pleasure of water features without the worry of potentially damaging the environment.

3. Off-Grid and Remote Use

One of the great advantages of solar pumps is that they can be placed in almost any location. They don’t require power outlets or extended wiring. That makes them ideal for remote gardens, sprawling estates or situations where electricity is hard to come by.

4. Safety Advantages

Solar pumps tend to operate on lower voltages, making them safer to site near water. The greatest advantage of this pump is that it has good security and there is no risk compared to the electric pumps. This is especially useful for ponds or water features where children or pets may be nearby.

5. Quiet Operation and Better Appearance

In contrast to disruptive fuel pumps, solar water pumps are peaceful. This means the garden or lake can enjoy peace. They also do not require the mess of cables running along the ground, as solar panels can be placed in a tidy sunny spot. This is more appealing and less obtrusive.

Key Technical Considerations & Design Choices

The installation of a solar water pump is to be planned. The correct design guarantees that the system is efficient, economical and problem free in future. There are various factors that one must put into consideration before purchasing or installing a pump.

1. Sizing the System

The initial one is to become aware of the required amount of water per day. In the case of a pond, this can be the act of moving the entire amount of water in the pond after every couple of hours to ensure that it remains clean and well-oxygenated. In the case of a garden, the need will be determined by the kind of plants and the area that will be sprayed with water. After the day-to-day water requirement is established, the size of the pump and the panels can be adjusted so as to match the requirements.

2. Static Head and Dynamic Head

Water does not move on its own—it needs energy to be lifted or pushed.

• Static head is the height the water has to be raised, such as from the pond to a waterfall.
• Dynamic head includes other resistances, such as the length of the pipe, bends and friction inside the pipes. Both must be measured to select the right pump. A pump that is too small will not deliver enough water, while an oversized pump wastes money and power.

3. Sunlight Availability

Since solar pumps depend on the sun, the amount of sunlight in the location matters. In places with long sunny days, smaller panels may be enough, but in areas with short or cloudy seasons, larger solar panels or battery backup may be necessary. Consider seasonal variations as well, if the pump will be running all year.

4. Type of Pump

The various pumps perform better under different conditions:

• Surface pumps are good for wells that are 6 feet or less in depth.
• Submersible pumps are placed underwater and are ideal for deep wells or ponds.
• Floating pumps sit on top of the water and are often used for ponds or fountains.

The choice depends on the depth of the water source and the desired flow rate.

5. Power and Electronics

Solar pumps can run on two types of electricity:

• DC pumps connect directly to solar panels and are more efficient for smaller systems.
• AC pumps need an inverter to convert power but are useful for replacing existing electric pumps.

A controller may be included to protect the pump and manage power. Some systems also use batteries to store energy for night time or cloudy days, though this increases cost and maintenance.

6. Pipes and Plumbing

Pump performance is influenced by the pipes design. Friction increases when user have long and narrow pipes, which translates to a decreased flow of water. Larger pipes and fewer bends enable water to move more freely. Optimizing pipe size and length can also increase efficiency.

7. Solar Panel Placement

The panels need lots of direct sunlight to work well. Panels should be positioned away from trees, buildings or other items that provide shade. The panels also matter, specifically in terms of the orientation and tilt angle to ensure that they can face the sun as much as possible throughout the day. Consistent cleaning is also required since dust and grime can hinder power production.

Solar Pump Installation Tips

The best solar water pump system is a well installed one. The right system is more efficient, safer and prolongs the life of equipment. Here are some important points to consider for the right installation.

1. Choosing a Site

The solar panels require the sun's rays to operate effectively and therefore the location must not be shaded with trees, fences or structures. The panels to be used should be where they are exposed to sunlight most of the day. The pump itself must be placed near the source of water so as to minimize the pipes and power wastage. The ground must be firm so that the panels and the pump are free of danger and are not easily moved under different weather conditions.

2. Mounting the Solar Panels

Solar panels can be installed in various ways:

• Fixed mounting is the simplest and most common, with panels set at a steady angle.
• The angles of the panels can be adjusted four times a year to catch more sunlight each season.
• Tracking systems will automatically follow the path of the sun, for optimal energy production, but can be more costly and are generally not necessary for small garden or pond applications.

3. Protecting Components

Each component of the system must be safeguarded to prevent its damage. They cannot operate when they are exposed to water and the wires must be isolated to avoid short-circuits. The pump needs to be well put where it won’t move or tip. Pipes have to be sealed at the joints and connections so there are no leaks. A waterproof box or wrap can also keep electrical elements dry from showers or splashes.

4. Dealing with Seasonal Issues

The seasons can alter how the pump operates. Pumps and piping in cold areas should be drained, or insulation applied. In extreme heat and dry weather, the pump may have to run longer so it is recommended that the user monitor the performance of the system and water levels frequently. In seasons with diminished sun, larger solar panels or battery storage could be employed to keep the pump running.

5. Safety Precautions

While solar water pumps operate using low voltage, it is important to choose safety first.

• Remove and reinstall the panels in a fixed position so that they do not move even during high winds.
• The electrical parts should be properly handled to prevent shocks.
• Pipes and panels should also be located in places that do not cause people who are walking past to trip.

Summary

Off grid solar water pumps are a smart and eco-friendly way to keep gardens and ponds healthy. Solar pumps are able to operate over several years with proper planning and maintenance giving the best solar water pump for fountain or to irrigate gardens. They are easy to carry, secure and dependable and would be a great option to any person who prefers convenience and speed as well as environmental friendliness and longevity.
