Step-by-Step Guide to Repairing a Sprinkler System

1. Safety First: Before Starting Any Repair

Check the system to ensure that it is safe before working on it.

1. Switch off the sprinkler system by turning off the shut-off valve, usually at the side of the house or in a valve box.
2. Set the controller to off or rain mode so the zones do not turn on by default.
3. When necessary, relax the pressure by creating a temporary opening in a manually made zone after the water has been turned off.
4. Remember why a backflow preventer matters when working on irrigation lines, especially if you’re disconnecting fittings.
5. Use simple gear, such as gloves and eye protection, particularly when cutting PVC and handling dirt and debris.

2. Fixing Sprinkler Valves

Each zone is supplied with sprinkler valves. When a valve fails, the water may continue to flow despite turning off the system, or a zone may not turn on. Weak water pressure or puddles around the valve box would also be other signs. Valve problems are usually brought about by dirt and debris. Over time, tiny particles may accumulate within the valve and prevent it from closing normally.

1. Find the Valve Box: The valve boxes are typically found in the front yard or near the house base. A lid is normally removed using a screwdriver.
2. Obvious Damage: Inspect broken fittings, loose wires, and broken valve bodies. They can demonstrate why the valve is not functioning.
3. Close the Valve Carefully: Most valves have screws on top. Turn off the water, unscrew them and remove the top cap.
4. Wipe the Diaphragm and Internal Parts: This part of the valve is a rubber diaphragm that helps close and open the valve. Wash it and the valve body with clean water to remove sediment and dirt.
5. Inspect Parts for Wear: Check wear, tears, cracks or warped rubber. If the diaphragm or spring appears damaged, these parts are typically replaced, and the problem is resolved.
6. Reassemble and Test: All parts should be reassembled, the screws should be tightened, the water should be switched on, and the zone should be operated as per the controller.

3. Repairing Broken Or Leaking Pipes

Broken pipes are buried under the surface but give clear indicators. They are wet spots in the lawn, water bubbling up from the ground, or an unexpected reduction in water pressure in one area. Freezing, soil movement, or nearby accidental pipe breakage may cause cracks.

1. Find the Leak Area: Run the zone briefly and check for pooling or bubbling. Then switch the water off and then dig deeper.
2. Dig Minutely and Uncover the Pipe: Dig a hole deeper than the pipe to get a working room. Avoid cutting into lines with a shovel.
3. Clean and Dry the Work Area: Clean the pipe by wiping the mud off to leave the cut and connection clean.
4. Cut Out the Damaged Section: Erase the split or fractured one using straight cuts.
5. Dry-fit the Replacement Piece: Test and measure the new pipe and couplings against the old ones, then glue. The alignment should be straight to ensure that the joints are not bent.
6. Connect the Repair:
• For PVC: Apply primer, then cement, then push pieces together firmly.
• For Poly Pipe: Use the correct barbed fittings and clamps.
7. Test Before Backfilling: Switch on the water and turn on the zone. Test all the joints under the armpits. It should be filled back after it is completely dry.

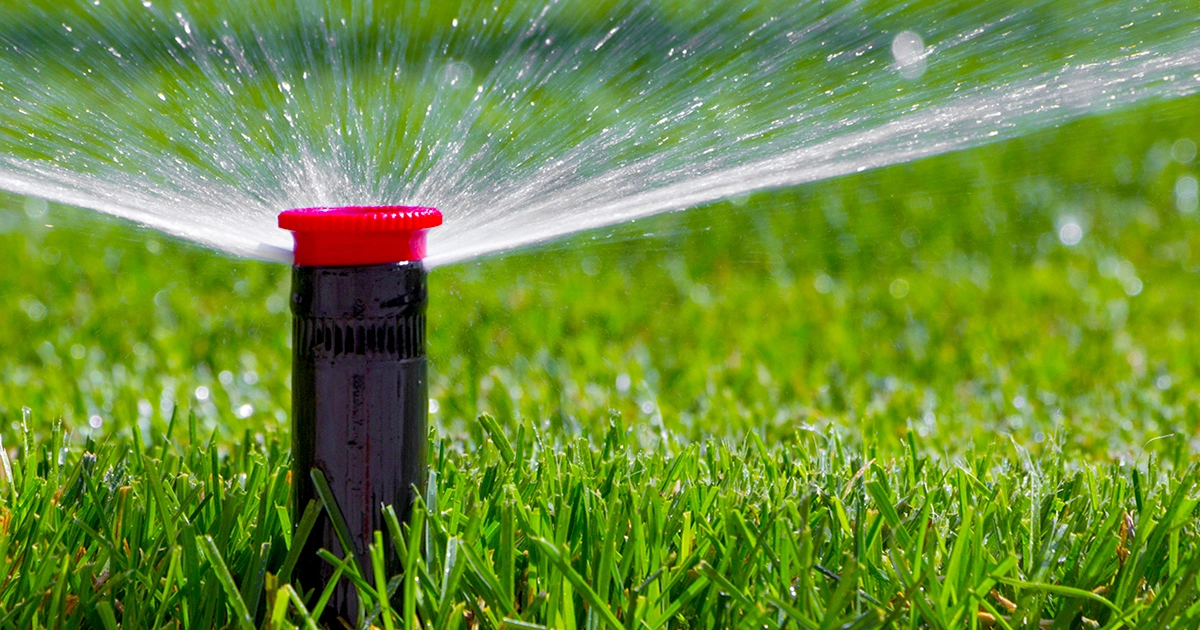

4. Fixing Malfunctioning Sprinkler Heads

The most noticeable element of the system and the easiest to repair is sprinkler heads. A few common issues include a broken head, a clogged nozzle, and a broken head. Weed trimmers, foot traffic and debris can easily destroy sprinkler heads.

1. Turn off the System Water: This prevents water from blasting out when you take the head off.
2. Expose the Head: Meanwhile, dig a little ring around the head. Draw the soil up to a sufficient extent to seize the body.
3. Remove the Head: Torque the head anti-clockwise. In case it is mounted on a riser, the riser can also rise.
4. Wipe and Clean the Filter/Nozzle: Many spray heads have a small filter screen. Rinse it. Clear debris from the nozzle.
5. Replace if Damaged: If the head cracks or the pop-up is old, replace the entire head. Restrict the nozzle type and size to maintain uniform water coverage.
6. Test and Adjust: Run the zone. Adjust spray direction and arc so it waters plants—not sidewalks or driveways. If you need a temporary setup while you troubleshoot, considersimple hose timers to automate watering while you troubleshoot repairs.

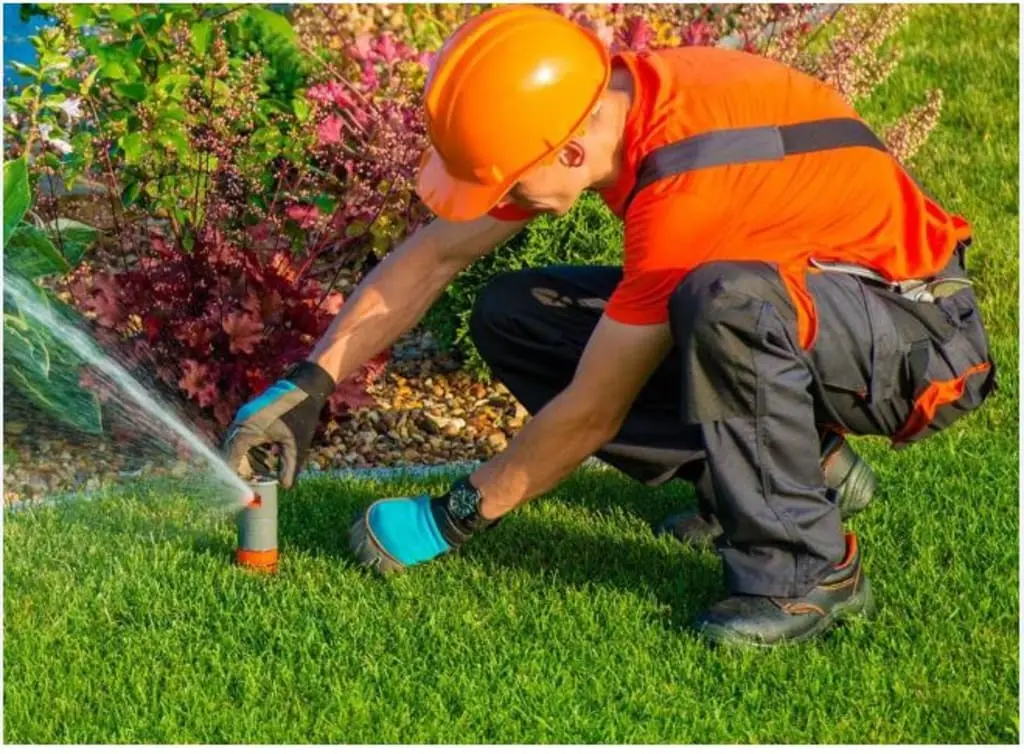

DIY vs Hire Sprinkler System Repair Experts

Sprinkler repairs may also be completed as a DIY when it comes to repairing sprinkler heads, minor pipe leakages or cleaning valves. DIY irrigation repair can save money and provide fast fixes without necessarily waiting for an appointment.

However, some cases require professionals. Bursting large pipes, electrical issues, or repeated valve breakdowns could require specialized equipment and expertise. If the system layout is large or repairs appear too complicated, it is possible to hire an expert to avoid additional damage and costly errors.

How to Hire a Sprinkler System Repair Professional

When you include assistance, some measures will prevent the loss of money and repeat visits:

1. Seek Irrigation Experience: A person who frequently services sprinkler systems will quickly identify issues and select the appropriate components.
2. Ask What They Will Check First: A good pro will often refer to pressure testing, valve checks, and zone-by-zone inspection.
3. Request a Clear Estimate: It is intended to isolate work, parts, and additional excavation costs or emergency calls.
4. Confirm Part Quality and Compatibility: Even watering of crops is important because of using matched heads and proper valve parts.
5. Ask About Warranty on Repairs: Most of these are renowned companies that will stand behind their work within a specified period.

These are the steps to identify a trusted sprinkler system repair service that meets the criteria of being licensed, experienced, and well-versed in local irrigation requirements.

The Bottom Line

Most issues with sprinkler systems can be resolved using simple tools, careful actions and a little patience. Frequent inspections and timely maintenance help prevent water wastage and costly losses. For beds or narrow strips that keep giving trouble, consider drip irrigation options that reduce overspray and repeated sprinkler issues. On bigger or more complicated problems, hire someone to keep the system lean and running as intended.
