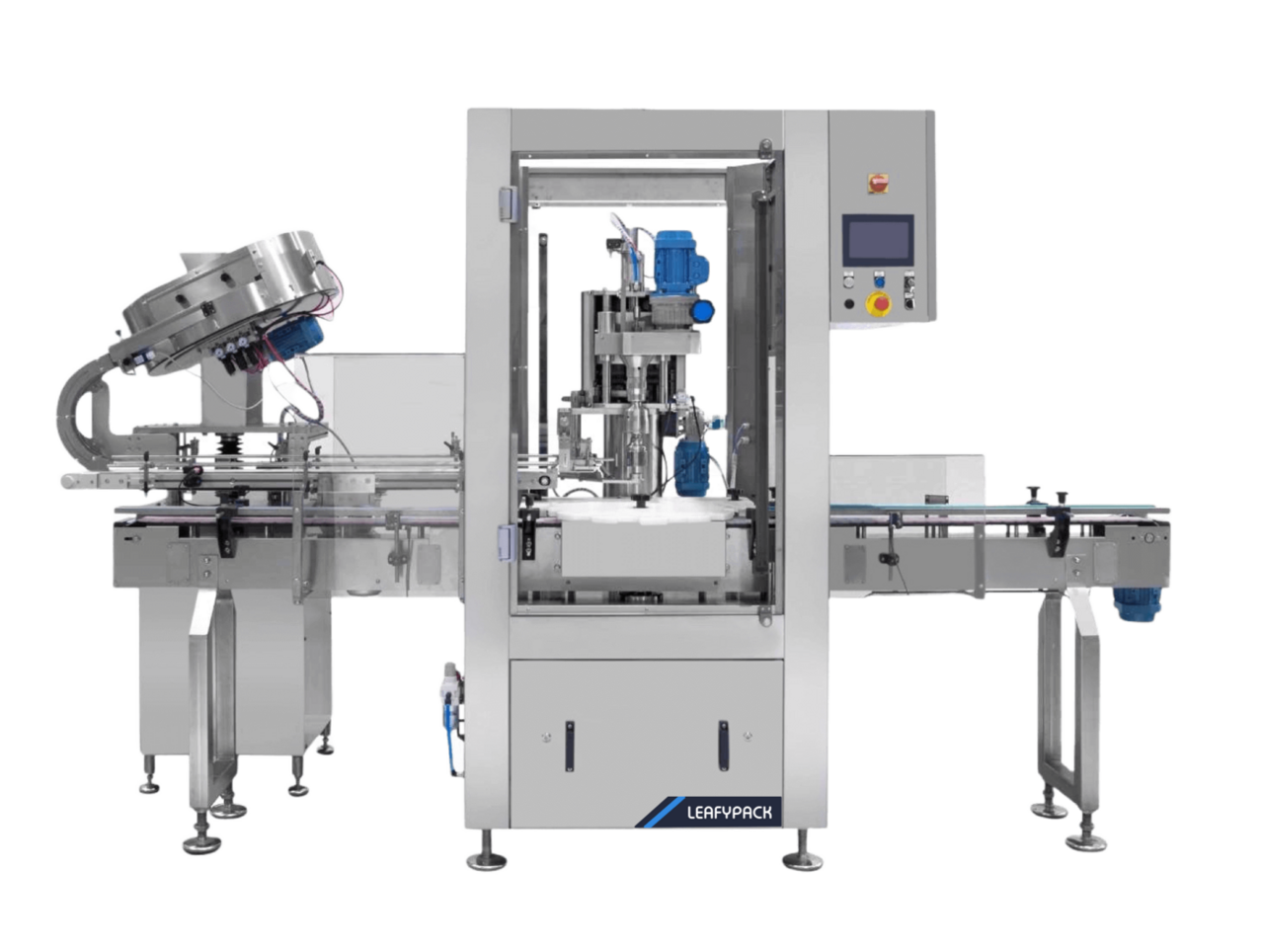

Automatic Capping Machine with Lid Feeder

In stock
0.00
Brand: LeafyPack
Request Quote
+
Request Bulk Order Quote

Shipping & Policies

Estimated Delivery This delivery estimate is based on the time it will take for the seller to ship out your order and for the carrier to deliver it.
Ships from United States

Returns: 30 days refund/replacement You can return any item within 30 days of delivery for a full refund or replacement, as long as it's unused and in its original packaging. Some products may be subject to restocking fees—see our return policy for full details.

Payment: Secure Transaction All payments are handled via industry-standard encryption and fraud protection. Your card details are never stored by us, and you’re covered by buyer-protection policies for a worry-free checkout.

TECHNICAL SPECS

· Conveyor belt size: 100 x 100 mm
· Belt height from floor: 950 ± 50 mm
· Chain width: 82.5 mm
· Structure of the machine made of SS 304, positioned on adjustable feet in height, built in high resistant material.
· Safety protections stop the machine should a problem occur on the stars preventing bottles from breaking and machine damaging.
· Stainless steel electrical panel placed at machine side with ‘auxiliaries’ commands at 24 volts.
· Electronic controls of the machine via PLC touch screen.
· All devices in charge with transfer and movement of the bottles are realised in HD polyethylene to ensure the minimum wear and a fully silent functioning.
· Complete with entry sensor for automatic start and exit sensor for “too many bottles” accident
· Machine supplied with one set of tools for working one product format and “one cap” format.

PLC & ELECTRICAL CABINET

Stainless steel electric board with low voltage controls, placed at machine side. Complete with electrical photocells placed in the enter and on the exit, in the case of problems and no arrival of bottles, the machine stops. Machine speed electronically adjusted by means of inverter. The Machine is complete with stainless steel electric board with low voltage controls, placed at machine frame side. Electronic control of the machine by a SIEMENS PLC touch screen. (Allen-Bradley or other brands available on demand).

PRELIMINARY / INDICATIVE Voltage
400 Volt 3PH + N + T
Frequency
50 Hz
Auxiliary
24V
Power consumption
7.5 kW
Air consumption
950 Lt. / Min at 14.5 PSI

· Suitable to close PLASTIC / GLASS bottles with pre-threaded caps.
· Automatic machine complete with cap sorter placed on independent frame with manual height adjustment.
· Horizontal cap transport with photocells.

PICK & PLACE Divide

· Closing head built in SS 304
· The closing head installed on the capper is a hysteresis closing head with continuous torque. The hysteresis technology offers transmission without contact and therefore without wear. The hysteresis capping heads ensure high accuracy of repetition of the torque (± 2%) and with their continuous closing torque (no impact), are therefore the optimal choice for the application of plastic pre-threaded screw caps, better suited than conventional magnetic heads with permanent magnet and with intermittent torque. The capping head limit torque can be adjusted up to 3.4 Nm. SS 304 heads provide excellent corrosion resistance and wear.

  • Electronic control of the electro valves by means of an encoder, adjustable by the PLC.
  • Electrical adjustment of the speed by inverter.
  • Manual height adjustment.
  • 1 M of conveyor at machine inlet.
  • 1 M of conveyor at machine outlet.
  • Conveyor belt motorization.
Banner Image

SELL MORE
WITH GROWCYCLE

Join as a seller and connect with thousands of B2B buyers nationwide!

Sign Up

Automatic Capping Machine with Lid Feeder
In stock
0.00

Description

The Automatic Capping Machine with Cap Feeder machine is suitable for sealing package of rotary covers of plastic bottles, glass bottles, etc. This machine is mainly applicable to dust proof plastic lid sealing with round bottles, such as various PET plastic, iron, aluminum, paper cans, etc. With the advanced product design, reasonable structure, and simple operation, it is an ideal packaging equipment for your bottles and jars.
