Low-Volt Station (DSV-1)

Low-Volt Station (DSV-1)

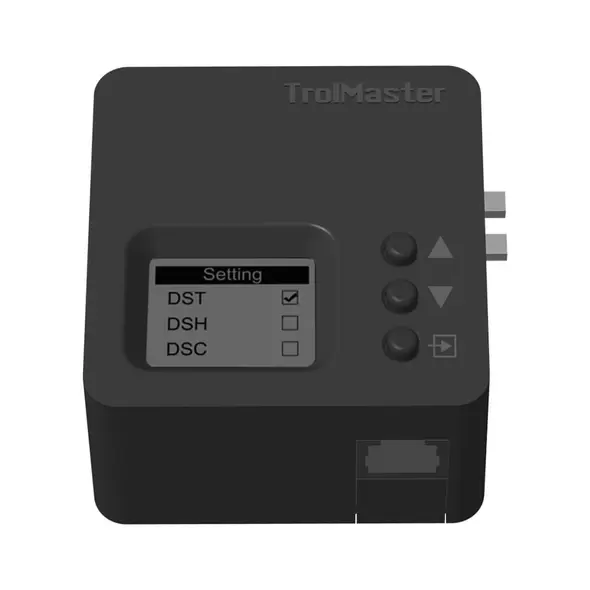

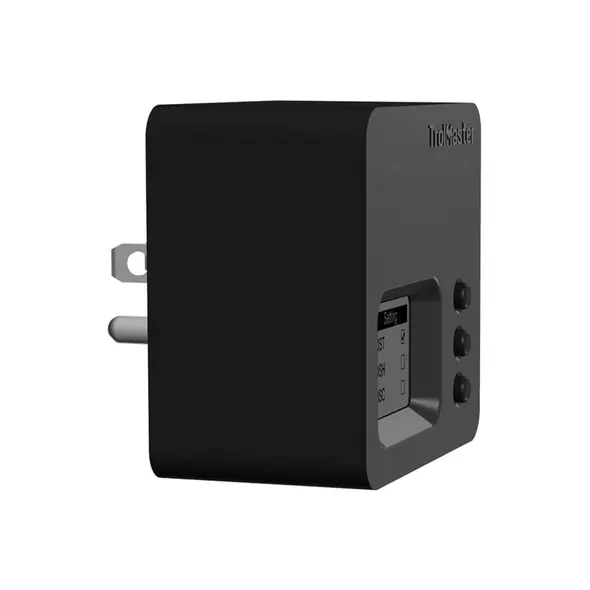

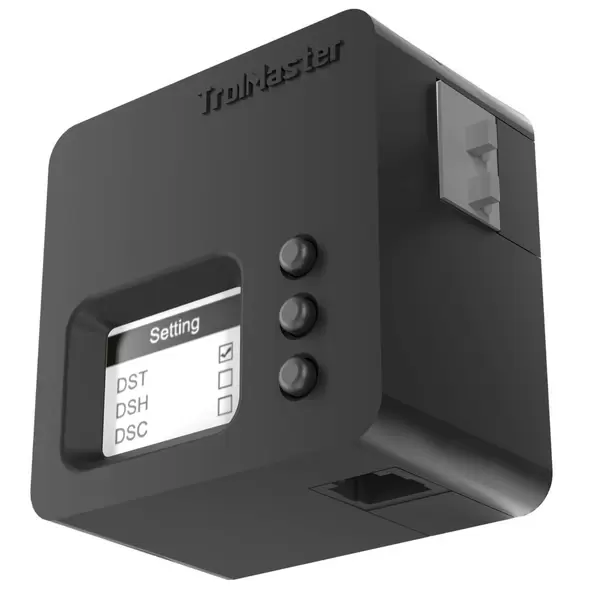

The TrolMaster DSV-1 is a versatile low-voltage output module designed for seamless integration with the Hydro-X and Aqua-X controller systems. This module is uniquely configurable to function as a control unit for temperature, humidity, and CO2 levels, or as a timer, making it a multipurpose tool for comprehensive environmental management.

The DSV-1 offers flexibility in voltage output, allowing users to select either 12 or 24 VDC with a capacity of up to 0.5 amps, or 12 or 24 VAC up to 4.8VA. This capability enables the module to cater to a variety of low-voltage devices. Once configured, the DSV-1 actively controls the connected low-voltage device, ensuring optimal operation based on the user's specified settings.

Ideal for applications requiring precise control over devices like solenoids, valves, and audio-visual alarms, the DSV-1 provides the necessary 12 to 24-volt AC or DC power these devices need to function efficiently. Its adaptability and ease of use make it an invaluable component in any setup requiring detailed environmental control.

Additionally, the DSV-1 features a manual override function. By pressing and holding the top button on the module, users can manually switch the module's output ON or OFF, offering an immediate control option that enhances flexibility and responsiveness in managing system operations. This feature is particularly useful in scenarios where quick adjustments are necessary, providing users with direct control over their system's components without navigating through complex settings.
