240V Humidity Device Station (DSH-2)

240V Humidity Device Station (DSH-2)

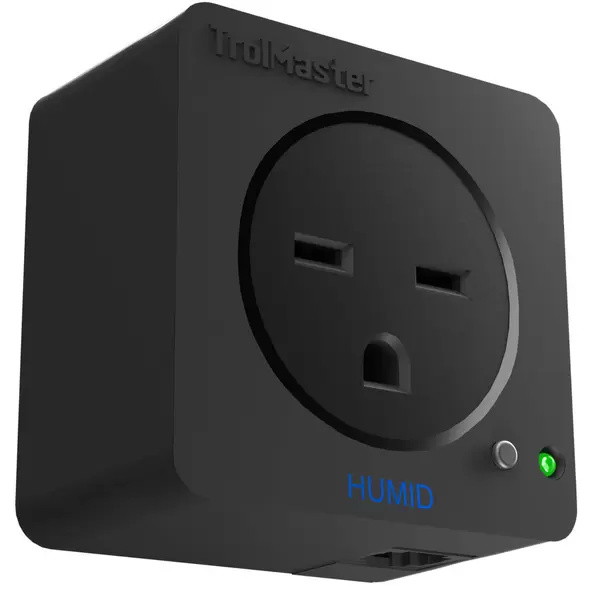

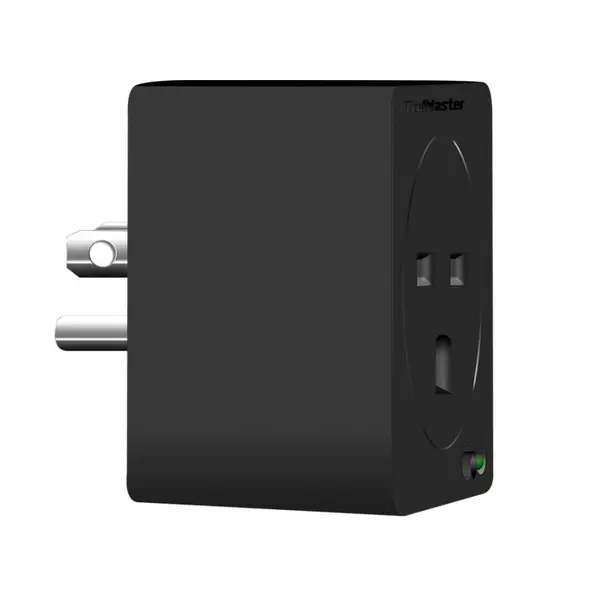

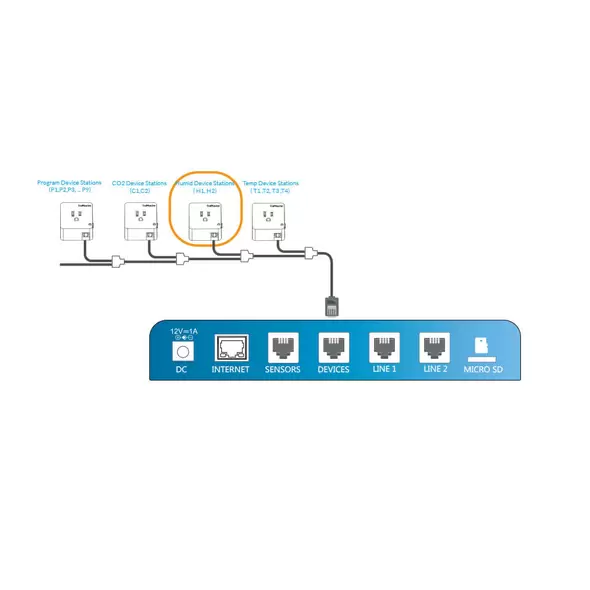

The TrolMaster DSH-2 Humidity Control Module is an essential tool for efficiently managing humidity in environments controlled by the Hydro-x system. Designed to connect and regulate standard humidifying or dehumidifying devices, this module supports devices operating within the global voltage standard of 100-240 VAC, 50/60 Hz, and can handle loads up to 10 amps. To ensure safe operation and avoid the risk of current overload, it is advised to use the DSH-2 with dehumidifiers that consume less than 7 amps.

The module is equipped with an LED status indicator that provides immediate feedback about its operational state:

• Blinking Green Fast: Indicates that the module has either not been addressed to the controller or there is a connectivity issue. Users can address or link the module by pressing the small button on it during the initial setup.
• Blinking Green Slow: Signals that the module is properly addressed and connected to the controller but is currently inactive (turned OFF).
• Solid Green: This shows that the module is addressed, connected, and actively engaged (turned ON).
• Blinking Red: Warns of an overload condition. If this occurs, the module should be unplugged to reset and prevent damage.
• Manual Override: By pressing and holding the button on the DSH-2, users have the option to manually override the system, allowing them to turn the connected device ON or OFF as needed without interfacing with the main controller.

This functionality not only enhances the ease of use but also provides a high degree of control, making the DSH-2 a reliable choice for precise humidity management in various applications. Whether for residential, commercial, or agricultural setups, the TrolMaster DSH-2 ensures optimal humidity levels are maintained, contributing to the overall efficiency and effectiveness of environmental control systems.
