240V Temperature Device Station (DST-2)

240V Temperature Device Station (DST-2)

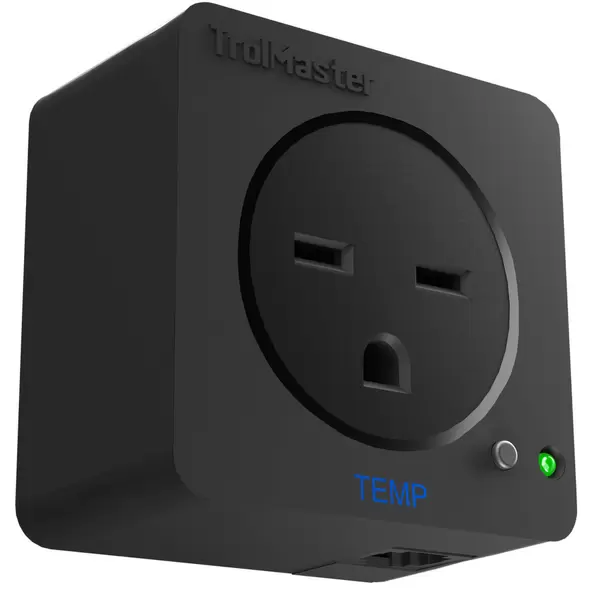

The TrolMaster DST-2 Temperature Control Module is an essential tool designed to facilitate the seamless integration and control of standard heating or cooling devices with the Hydro-X system. This module is highly adaptable, and capable of managing any heating or cooling apparatus that operates within the global voltage standard of 100-240 VAC at 50/60 Hz, and it can handle loads up to 10 amps. Such versatility makes the DST-2 an ideal choice for a wide range of residential and commercial HVAC applications, offering users a robust solution for precise temperature management.

One of the distinctive features of the DST-2 is its sophisticated LED status indicator system, which provides clear and immediate feedback on the operational status of the module. The LED indicators function as follows:

• Fast Blinking Green: This rapid blinking signifies that the module has either not been successfully addressed to the controller or there is an issue with the connection to the controller. Users can easily address or link the module by pressing the small button on its body when initially installing it, which resolves the connectivity issue.
• Slow Blinking Green: A slow blink in the green LED indicates that the module has been properly addressed and is currently connected to the controller but remains in the off position. This status helps users confirm that the module is ready for use and functioning correctly, albeit not actively controlling a device.
• Solid Green: A solid green light is an indication that the module is both addressed to the controller and actively engaged in controlling a connected device. This steady illumination shows that the module is in operation and the connected heating or cooling system is currently turned on.
• Blinking Red: A blinking red LED alerts the user to an overload condition within the module. To safeguard the module and connected devices, it is recommended to unplug the module to reset and clear the overload, ensuring continued safe operation.

Moreover, the DST-2 provides an additional level of user control with its manual override feature. By pressing and holding the designated button on the module, users can directly toggle the connected device on or off. This manual intervention capability is especially useful in situations where immediate adjustments to the heating or cooling outputs are needed, bypassing automated controls for direct user interaction.

Overall, the TrolMaster DST-2 Temperature Control Module combines robust control capabilities with user-friendly features, offering a comprehensive solution for managing indoor environments efficiently and effectively. Its design emphasizes ease of use, reliability, and flexibility, making it a valuable component of any modern HVAC system.
