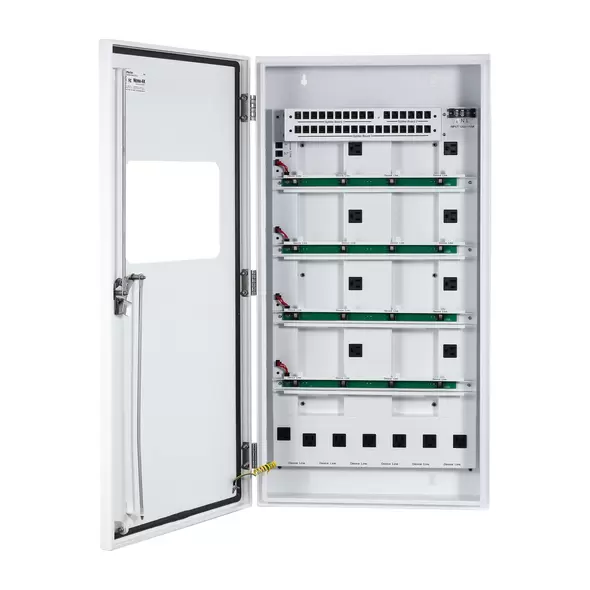

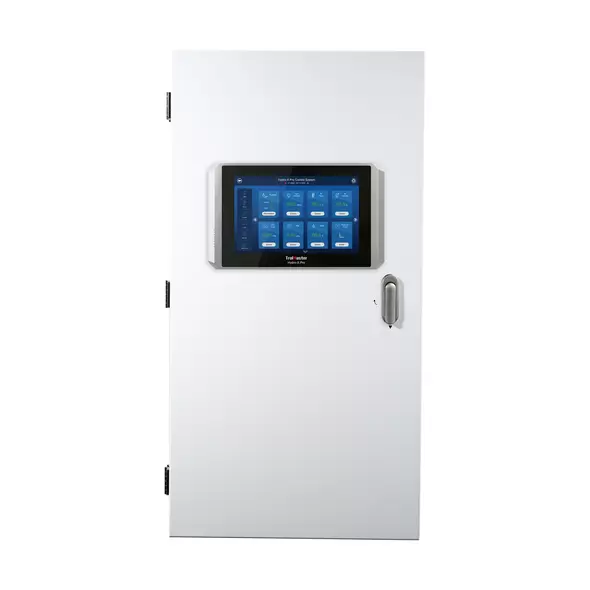

35” Large Controller Cabinet for Hydro-X Pro (SCC-2)
The SCC-2 35" Controller Cabinet offers a sophisticated modular electrical enclosure and wire management system tailored for TrolMaster Control systems, including the Hydro-X Pro and Aqua-X Pro. This cabinet is expertly designed to facilitate the professional installation of any of TrolMaster’s controllers.
It provides a secure and organized space where all device stations can be mounted inside the electrical cabinet, ensuring they remain clean and dry. This setup not only enhances the operational efficiency of your control system but also extends its durability by protecting the components from environmental exposure.
The SCC-2 allows for the safe mounting of power supplies and modules, while its design simplifies the organization of RJ12 cables, creating a streamlined and accessible setup for all connected devices.
Specifications:
- Controller Cabinet: 1 unit
- Installation Manual: 1 unit
- RJ-12 Cables:
- Long RJ-12 Cables: 4 units
- Short RJ-12 Cables: 26 units
- Power Cables (for OA6-24/OA6-110): 8 units
- OA6-24/OA6-110 Screw Set: 18 sets
Dimensions:
- Length: 35 inches
- Width: 18 inches
- Height: 6.26 inches
Cabinet Capacity:
- Splitter Board #1: 10 ports (top)
- Splitter Board #2: 6 ports (top)
- Splitter Board #3: 17 ports (top)
- Splitter Board #4: 4 x 4 ports (middle splitter bars)
- Splitter Board #5: 6 ports (bottom)
- Power Outlet Configuration: 8 + 1 + 6
Operating Conditions:
- Enclosure Rating: IP56 (equivalent to NEMA 4X rating)
- Temperature Resistance: Operates effectively within a temperature range of 32°-104°F.
- Input Voltage: 120V
- Maximum Amperage: 15A
These specifications highlight the robust design and extensive connectivity options of the controller cabinet, making it suitable for a wide range of industrial applications.
