6 Outputs 24V Control Board (OA6-24)

In stock
0.00
(0 reviews) Write a review
10 days
Brand: TrolMaster
$9526
Request Bulk Order Quote Chat Now

Product Features:

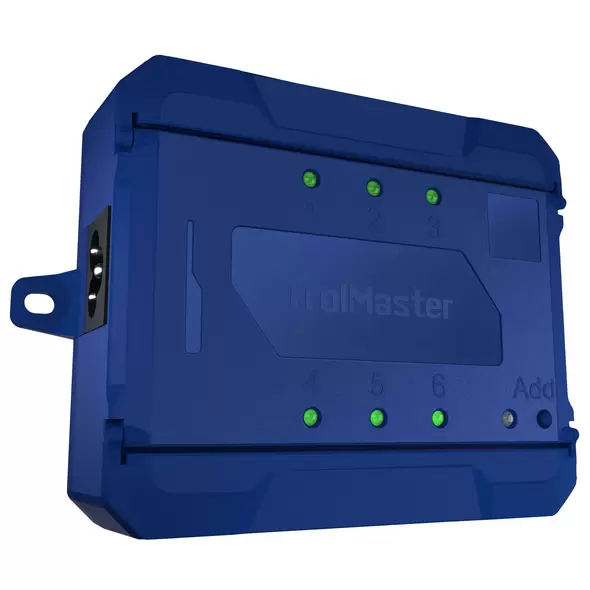

  • LED Power Indicator: Includes a main LED power indicator for quick visual confirmation of operational status.
  • Addressing Button: Features an addressing button to facilitate easy setup and integration with control systems.

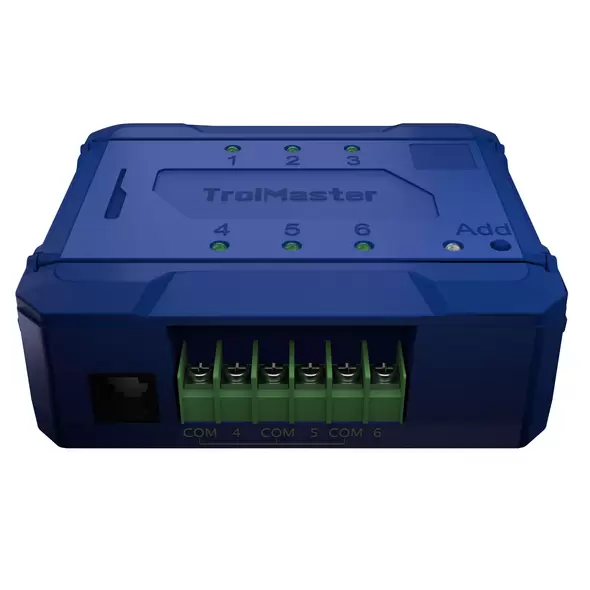

  • 6 Individually-Controlled 24V Outputs: Equipped with six 24V outputs, each controlled independently to cater to specific needs.
  • Individual LED Indicator for Each Output: Every output is paired with its own LED indicator, providing clear, at-a-glance monitoring of each channel's status.

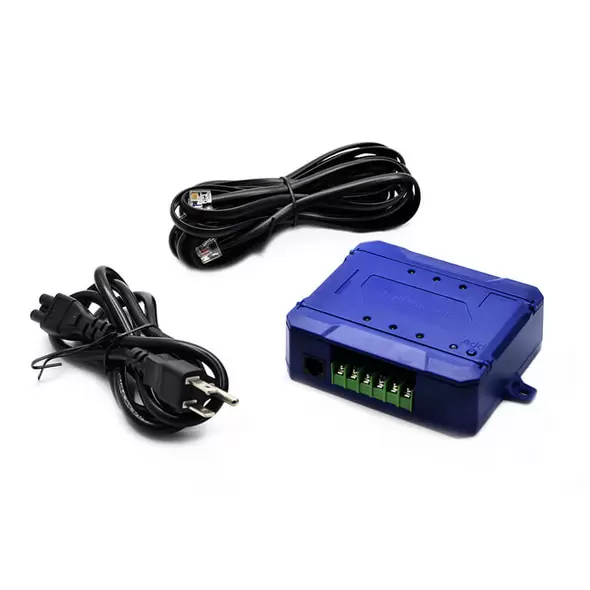

  • Double RJ12 Cable Sockets: Comes with dual RJ12 cable sockets to support daisy-chain connectivity, allowing for easy and scalable integration.
  • Input Voltage Range: Accepts a broad input voltage range of 110-240 VAC, making it suitable for various global electrical standards.
  • Maximum Input Current: Supports a maximum input current of 0.42A, ensuring efficient power management.
  • Maximum Output Voltage/Current: Delivers up to 24VAC with a 0.15A current per output, offering sufficient power for multiple applications.
  • Optimal Working Conditions: Designed to operate within environmental conditions of 32°-122°F and humidity levels up to 90%, ensuring reliability and performance in diverse settings.
Available from these sellers (1)
Sold by:
5.00
(2 reviews)
In stock
$9526
6 Outputs 24V Control Board (OA6-24)
In stock
0.00
(0 reviews) Write a review

Reviews

Average Star Rating:
0.00 (0 reviews Total)
  • 5 stars
    0
  • 4 stars
    0
  • 3 stars
    0
  • 2 stars
    0
  • 1 star
    0
Have you used the product?
Tell us something about it and help others make the right decision
Show reviews with:
5 stars (0 reviews)
4 stars (0 reviews)
3 stars (0 reviews)
2 stars (0 reviews)
1 star (0 reviews)

No reviews found

Description

6 Outputs 24V Control Board (OA6-24)

The TrolMaster OA6-24 Control Board is specifically engineered for the comprehensive management of multiple 24VAC solenoid valves, offering a streamlined and effective solution for irrigation systems. Capable of controlling up to six valves, each unit allows for individual timer settings, ensuring precise watering schedules tailored to various zone requirements. For larger systems requiring expanded control, up to five OA6-24 units can be linked to a single Aqua-x controller. This configuration enables up to 30 separately managed outputs, accommodating extensive irrigation setups.

Additionally, the OA6-24 is designed to integrate seamlessly with the Aqua-x's "master pump link" feature. By connecting a DSP-1 module to the OA6-24, an automatic linkage between the pump and the control board is established. This innovative connection ensures that whenever any of the 24VAC irrigation zones on the OA6-24 are activated, the DSP-1 module will automatically power the pump. This automated coordination between the pump and the valve operation enhances the efficiency and reliability of the irrigation system, reducing manual intervention and ensuring optimal watering across all controlled zones.

The combination of the OA6-24 control board and DSP-1 module represents a robust solution for advanced irrigation management, making it ideal for agricultural, landscaping, and commercial gardening applications.

Attachments

OA6-24 Manual (OA6-24_User_Manual.pdf, 1,404 Kb) [Download]

OA6-24 Tech Sheet (OA6-24_Tech_Sheet.pdf, 709 Kb) [Download]
