HI-FLO Coupling Connection With Ball Valve - 3/8" Tubing Connection

In stock
0.00
HFC-200
Brand: EZ-FLO
$29900

Shipping & Policies

Estimated Delivery This delivery estimate is based on the time it will take for the seller to ship out your order and for the carrier to deliver it.
Ships from United States

Sold by EZ-FLO

Returns: 30 days refund/replacement You can return any item within 30 days of delivery for a full refund or replacement, as long as it's unused and in its original packaging. Some products may be subject to restocking fees—see our return policy for full details.

Payment: Secure Transaction All payments are handled via industry-standard encryption and fraud protection. Your card details are never stored by us, and you’re covered by buyer-protection policies for a worry-free checkout.

  • Mainline Sizes: Available in 2″ to 4″.
  • Connections: Socket x socket for gluing into PVC pipe.
  • Material: Schedule 40 PVC.
  • Tubing Connections: Standard sizes of 3/8″ and 1/2″.
  • Primary Use: Connecting Engineered Systems, adaptable to other models.
  • Pressure Adjustment: Enables differential pressure adjustment for efficient injection across various flow rates.
  • High Feed Rates: Supports faster feed rates with higher differential pressure.

Distinctive Features:

  • Full port ball valve with no reduction in diameter.
  • Large diameter venturi fittings for improved performance in lower flows.
  • Larger inlet and outlet ports for larger diameter tubing.

Tell us what you need

Banner Image

SELL MORE
WITH GROWCYCLE

Join as a seller and connect with thousands of B2B buyers nationwide!

Sign Up

Quantity options

  CODE Availability Price
HI-FLO Coupling Connection With Ball Valve - 3/8" Tubing Connection
HFC-200
In stock
$29900
HI-FLO Coupling Connection With Ball Valve - 3/8" Tubing Connection
HFC-250
In stock
$40500
HI-FLO Coupling Connection With Ball Valve - 3/8" Tubing Connection
HFC-300
In stock
$57900
HI-FLO Coupling Connection With Ball Valve - 3/8" Tubing Connection
HFC-400
In stock
$78500

Description

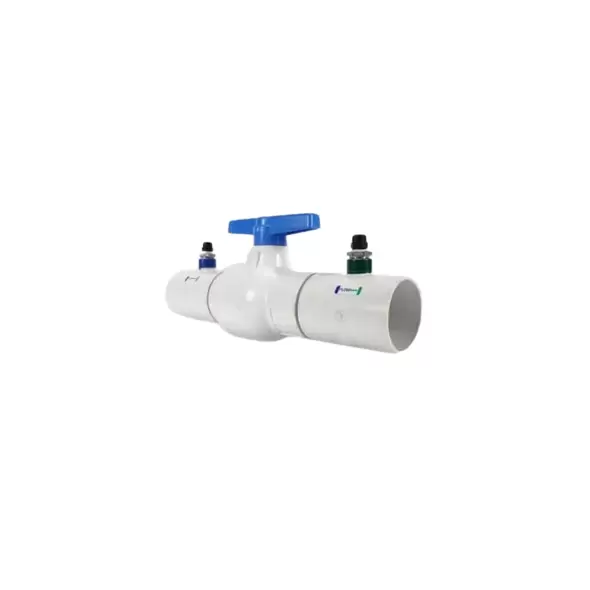

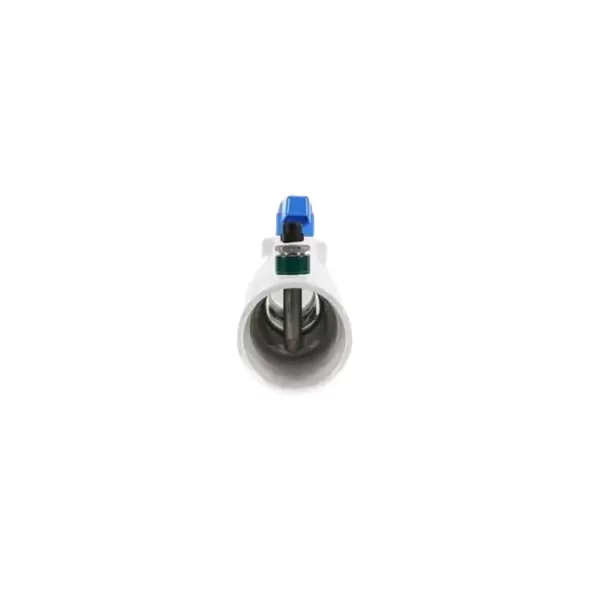

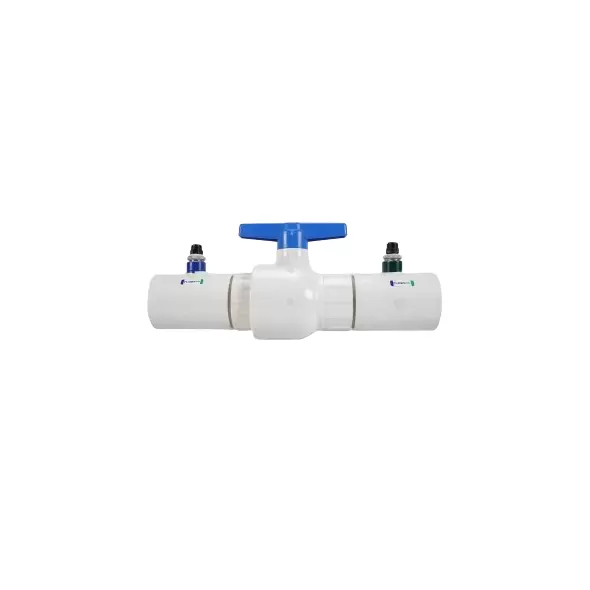

The Hi-Flo Coupling (HFC) ball valve connectors are designed to accommodate mainline sizes ranging from 2 inches to 4 inches, featuring socket x socket connections for seamless integration with PVC piping through a gluing process. Constructed from durable Schedule 40 PVC, these connectors offer versatile tubing connections with standard sizes of 3/8 inch and 1/2 inch. While primarily intended for use with Engineered Systems, the HFC connectors can also be adapted for compatibility with other models.

The HFC ball valve connectors are engineered to allow precise adjustment of differential pressure between the inlet and outlet connections within an irrigation system, ensuring effective injection across a broad spectrum of flow rates. This capability is particularly advantageous for applications requiring higher feed rates, which necessitate an elevated differential pressure.

Several distinctive features differentiate the HFC from standard Coupling Ball Valves:

  • Enhanced Inlet and Outlet Ports: The HFC connectors have larger ports to accommodate larger diameter tubing, facilitating improved flow management.
  • Advanced Venturi Fittings: These connectors feature large-diameter venturi fittings that enhance performance, particularly in lower flow conditions.
  • Complete Port Ball Valve Design: The HFC boasts a complete port ball valve, ensuring no diameter reduction thereby optimizing flow efficiency.

Ultimately, the Hi-Flo Coupling (HFC) ball valve connectors are a superior choice for irrigation systems. They offer advanced pressure adjustment capabilities, improved performance across various flow rates, and robust construction for reliable long-term use, making them a compelling option for your system.
