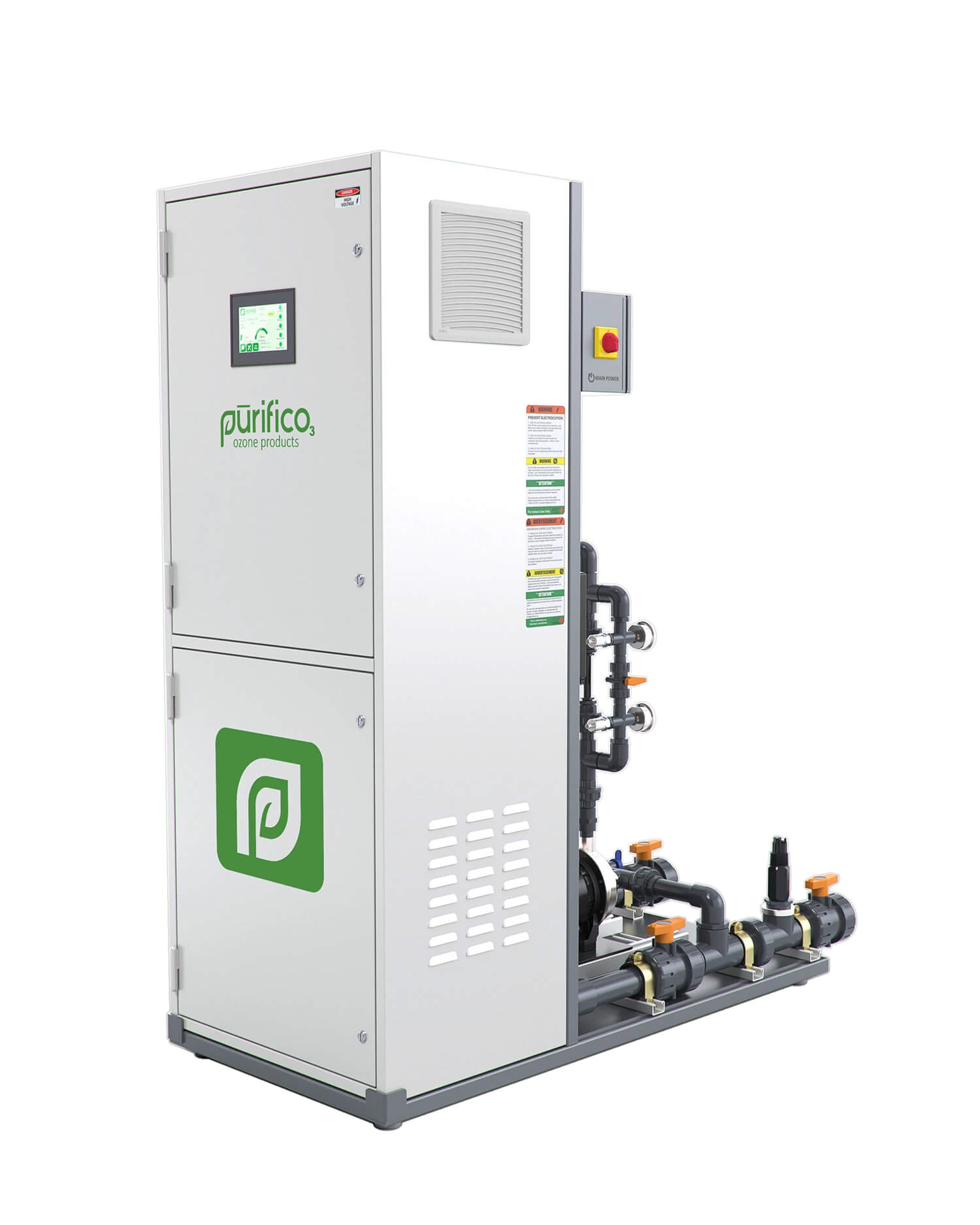

S Series - Cabinet W/Wet-End Ozone System

The Purifico S Series Cabinet Ozone System with Wet-End Configuration is tailored to the most advanced water treatment strategy for disinfection and bacterial control. The high level of treatment operational safety is ensured by additional proprietary control technology. Along with a standard stainless steel recirculation pump, the S Series actively conserves ozone output ranging from 40gph to 320gph.

The S Series appliance is unmatched in a blend of logical control and potent ozone discharge within a wet-end configuration. It fits into an industrial sanitation or high-volumed recirculated water or even a water treatment focused system.

The brain of the S Series goes to the Siemens LOGO-8 logic module PLC along with a colored touchscreen HMI. Both synergetically, the user is guided within navigation among many reported processes. At the control board, functions setting, including treatment level changes, and execution supervision are fully possible.

The system can operate other facilities through Modbus and PRIVA connections. With ZONE proprietary platform, the operators have remote control and monitoring over the system twenty-four seven.

Performance Incorporated with Durable PTI Ozone Cell

All S Series systems include an ozone reaction cell which is known for absolute dependability and mechanical charm, quietness, compactness and rugged sturdiness: PTI single pressurized PTI ozone reaction cell. This product from the USA is astonishing in the ozone generation and in its low maintenance demands during the peak demand times.

Furthermore, with the thermostatically controlled cabinet, the internal environment of the unit is filtered, thermally clean, and safe giving an additional life to the components of the unit. internal components. The cleaning is also provided by ARIEL-TECH filtered fans further ensures thermal stability and safety of the system.

S-Series Advanced Pump and Wet-End Design

Another unique characteristic which distinguishes S Series is its incorporation of a swim end assembly, owing to the additional 0.75 to 3.0hp Ebara stainless steel recirculation injection pump. This feature improves the strength of the system’s pump without causing turbulence in the water flow resulting in relaxing conditions. In addition, it enables effective ozone treatment injection well below the water stream.

The “side-stream” and “flow-through” configurations can be adjusted without difficulty, improving operational flexibility. The system's design and water flow can dictate treatment methods.

In the case of incomplete disinfection, the timed delay pump controller guarantees that flow stoppages are maintained until tanks or water lines have fully treated.

Additional Safety and Advanced Monitoring Features

For accuracy and saftey, the S Series is equipped with:

• Pressure, vacuum and flow gauges,
• Safety switches preventing the system from operating under hazardous conditions,
• ORP controller which adjusts ozone output according to dynamic oxidation levels.With these safety layers, the system not only guarantees treatment, but also protects personnel, facility infrastructure, and other property damages.

Flexible Customized Options

Additional customization for specific geo-industrial or environmental standards is available on the S Series as optional upgrades. Other options also include:

• Additional Residual ORP Control output confirmation sensor.
• Remote ozone sensing ATI unit for further measuring external zones.
• Expansion Dual or Quad 10 m³/h Nano-Bubble generators for enhanced microscale aerosol sanitization.

These modifications improve the apex ozone verification and control, essential for accuracy enhancement within facilities that are extreme treatment meticulosity.

Capacitiy Based Model Specifications

The S Series incorporates four models each tailored to a distinct operational level:

Model 40S

• Ozone Output: 0 – 40gph @ 10% concentration

• Oxygen Input: 5Lpm, 93% dry oxygen

• Dimensions: 24”W x 70.5”H x 16”D

• Voltage: 220V – 50/60Hz, 1PH – 5AMP

Model 80S

• Ozone Output: 0 – 80gph @ up to 15% concentration

• Oxygen Input: 10Lpm, 93% dry oxygen

• Dimensions: 24”W x 70.5”H x 16”D

• Voltage: 220V – 50/60Hz, 1PH – 10AMP

Model 160S

• Ozone Output: 0 – 160gph @ up to 15% concentration

• Oxygen Input: 20Lpm, 93% dry oxygen

• Dimensions: 28”W x 74.5”H x 20”D

• Voltage: 220V – 50/60Hz, 1PH – 20AMP

Model 320S

• Ozone Output: 0 – 320gph @ up to 15% concentration

• Oxygen Input: 30Lpm, 93% dry oxygen

• Dimensions: 28”W x 74.5”H x 20”D

• Voltage: 220V – 50/60Hz, 1PH – 30AMP

Because these models provide balanced design uniformity with scaling flexibility, they can be utilized for retrofit applications and new installations.

Final Words

The Purifico S Series Cabinet Ozone Systems have been developed to achieve proper and effective water treatment with exceptional uniformity. Each Logic Control Unit, Ozone Cell, Integrated Wet-end circulation pump, and dual configuration design works separately and together toward optimal adaptability and efficiency.

Within the S Series, several industry-specific features as well as facilities with precision, cleanliness, and process control requirements are customizable and readily available. In addition to these, the unit also comes with integrated sensors, remote control, nano-bubble sensors, and optional residual sensors.
