Skytree Cumulus

In stock
0.00
(0 reviews) Write a review
Brand: Skytree
$21,50000
Chat Now

The Skytree Cumulus is an efficient, modular CO2 generation system designed for small-scale applications such as vertical farms, algae cultivation and pharmaceutical facilities.

This unit provides a clean, fossil-fuel-free source of CO2 by capturing it directly from ambient air, producing up to 20 kg (44 lbs) of CO2 daily. Its scalable design allows multiple units to be connected, making it an ideal solution for facilities that require a controlled, onsite source of CO2.

Key Features

  1. Clean CO2 Source: Captures CO2 from the atmosphere without burning fossil fuels, providing an eco-friendly CO2 source for sustainable operations.
  2. Flexible and Affordable: Available for purchase or lease, with low energy consumption and competitive pricing per ton of CO2.
  3. Modular and Independent: Easily deployed and maintained, with options for scaling CO2 production by connecting up to three main units per control unit.
  4. Skytree Cloud Integration: Provides 24/7 monitoring and real-time insights for continuous, reliable CO2 management.

Tell us what you need

+
Skytree Cumulus
In stock
0.00
(0 reviews) Write a review

Reviews

Average Star Rating:
0.00 (0 reviews Total)
  • 5 stars
    0
  • 4 stars
    0
  • 3 stars
    0
  • 2 stars
    0
  • 1 star
    0
Have you used the product?
Tell us something about it and help others make the right decision
Show reviews with:
5 stars (0 reviews)
4 stars (0 reviews)
3 stars (0 reviews)
2 stars (0 reviews)
1 star (0 reviews)

No reviews found

Description

Applications

  • Vertical Farms (Food and Flowers): Supports optimal plant growth by supplying necessary CO2 levels for photosynthesis.
  • Algae Cultivation: Enhances biomass yield with a controlled, onsite CO2 source.
  • Cultivation: Promotes faster growth and higher yields.
  • Pharmaceuticals: Delivers a clean and consistent CO2 supply for various pharmaceutical manufacturing needs.

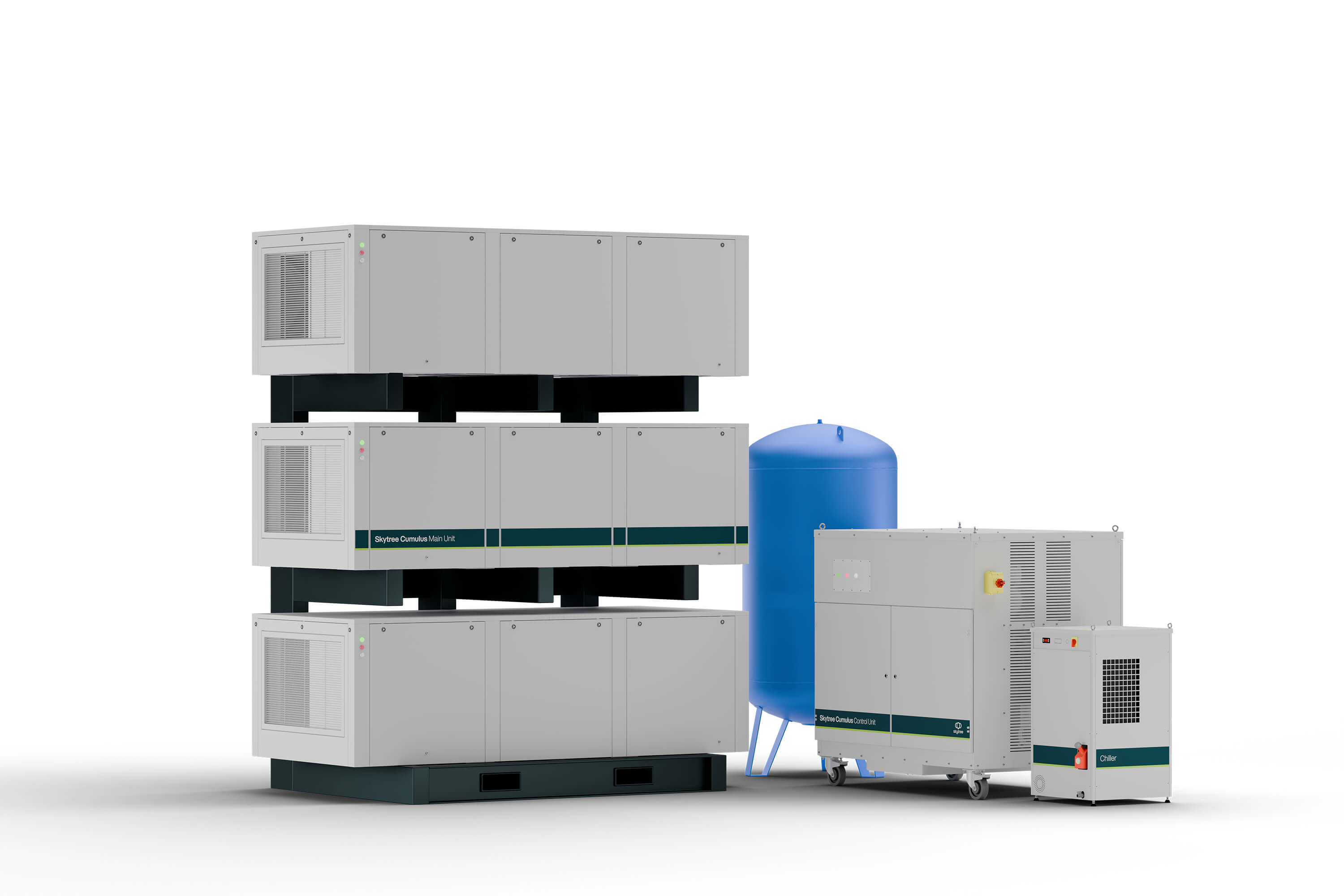

Skytree Cumulus System Components

  1. Main Unit: Captures up to 20 kg (44 lbs) of CO2 per day from ambient air.
  2. Control Unit: Scalable control that allows the connection of up to three main units for increased CO2 capture.
  3. Storage Tank: Stores CO2 and integrates with existing systems. Customizable tank capacity and pressure options are available.
  4. Skytree Cloud: Monitors system performance in real-time, providing actionable insights for CO2 management.

CO2 Generation Process – Three Steps

  1. Adsorption: Air is drawn in by a fan, and CO2 is captured on a specialized filter.
  2. Desorption: The filter is heated, releasing the captured CO2.
  3. Release: The CO2 stream is compressed and stored, allowing for a broad range of applications.

Technical Specifications

  • CO2 Capture: 20 kg (44 lbs) per day
  • CO2 Purity: >90% (up to 99% optional)
  • Energy Consumption: 4 kWh per kg of CO2

Operating Requirements

  • Optimal Temperature: 5-30°C (41-86°F)
  • Optimal Humidity: 10-80% relative humidity
  • Space Requirements:
    • Main Unit Dimensions: 3.09 m (10.14 ft) x 1.4 m (4.6 ft) x 1.17 m (3.84 ft), Weight: 700 kg (1550 lbs), Peak Power: 40 kW
    • Control Unit Dimensions: 1.81 m (5.94 ft) x 1.28 m (4.2 ft) x 1.8 m (5.91 ft), Weight: 650 kg (1450 lbs), Peak Power: 10 kW
    • Storage Tank: Capacity of 1500 L (400 gal) and pressure up to 10 Bar (145 psi)

Certifications and Ratings

  • IP Rating: IP21
  • Certificates: CE-certified for safety and compliance

The Skytree Cumulus provides a reliable, sustainable CO2 generation solution for small-scale applications, ensuring flexibility, cost-effectiveness, and environmental responsibility. With its modular setup and advanced CO2 capture technology, Skytree Cumulus is an ideal choice for industries seeking clean, independent CO2 generation.

Attachments

Tech Sheet (Skytree_Cumulus_Technical_Datasheet_TDC20_v2409041.pdf, 332 Kb) [Download]

View all variations as list

  CODE Quantity Availability Price
Skytree Cumulus 1x Main Unit 44 lbs of CO2 per day
In stock
$21,50000
Skytree Cumulus
672BA5827A98D
1x Cumulus Control Unit - Supports up to 3x Units
In stock
$11,00000
Skytree Cumulus
672BA5776EFDC
3x Main Units 132 lbs of CO2 per day
In stock
$64,50000
Skytree Cumulus
672BA572AE32Fff
2x Main Units 88 lbs of CO2 per day
In stock
$43,00000
