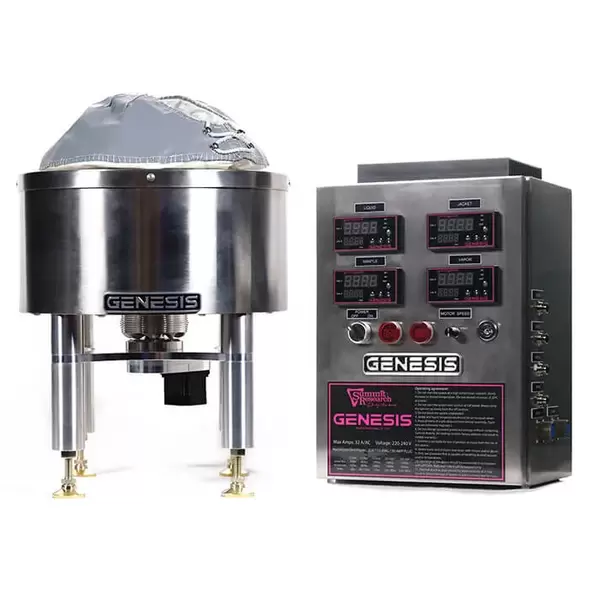

Genesis Heating Mantle

The Genesis Magnetic Heating Mantle is a top-tier piece of laboratory equipment designed to set new benchmarks in safety, efficiency, and longevity. Representing the pinnacle of design, engineering, and technology, Genesis offers unparalleled operational capacity and durability, making it the ultimate choice for laboratory heating needs. No other manufacturer delivers the advanced features or robust construction found in the Genesis line, ensuring a significantly longer lifespan and higher performance.

Whether for short path distillations or other heating applications, Genesis offers unmatched control and precision. With the C1D2 certification, the Genesis mantle is engineered to operate safely in hazardous environments. Furthermore, the option for UL/CSA/ETL certification reinforces its commitment to the highest standards of safety and quality. For those seeking the best in laboratory heating, Genesis is an all-in-one solution that streamlines processes and optimizes workspace.

Advanced Features for Maximum Performance and Safety

Custom Programmed PIDs: The Genesis Magnetic Heating Mantle includes four precision PIDs (Proportional-Integral-Derivative controllers) for maintaining optimal temperature control. These PIDs are designed to monitor and adjust temperatures at four critical locations:

• Location 1: Liquid Temperature (Adjustable)
• Location 2: Jacket Temperature (Adjustable)
• Location 3: Internal Mantle Heater Temperature
• Location 4: Vapor Temperature

By allowing independent monitoring and adjustment of these temperature points, the Genesis provides precise control for short path distillations and other sensitive laboratory procedures. This ensures that the heating process is fine-tuned for safety and efficiency.

High-End Components: Built with MIL-Spec power connections and a robust 48v power supply & motor controller, Genesis offers industrial-grade reliability and performance. The inclusion of RTD pt1000 high temp potted probes ensures accurate temperature readings, even at high temperatures, and guarantees long-term durability.

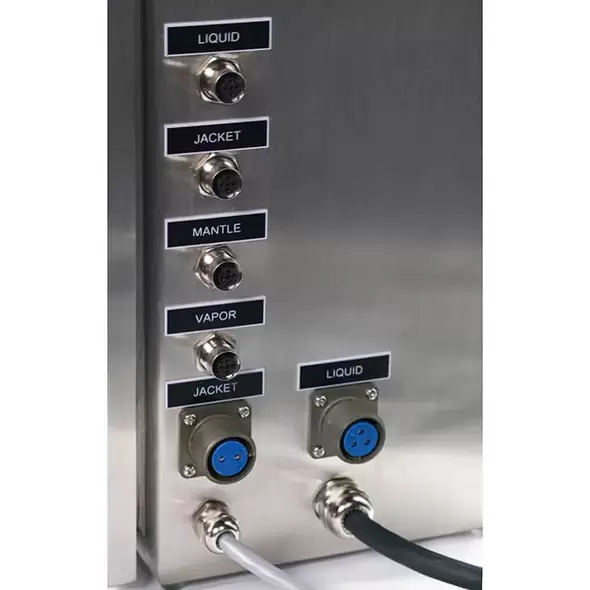

Breaker and Control Architecture: Genesis is equipped with a sophisticated control architecture designed for safety and operational ease. It also features communication temperature ports, which allow for enhanced monitoring and data collection during operations.

Compact and Space-Efficient Design

For laboratories where space is at a premium, the Genesis Magnetic Heating Mantle’s design is highly adaptable. The control box can be wall-mounted to save valuable bench space, ensuring a clutter-free work environment. For 2-liter and 5-liter models, users can request a smaller footprint control box, which makes it even more space-efficient.

• Genesis Control Box Dimensions: 16.5” (h) x 12” (w) x 8” (d)
• Genesis Jr. Control Box Dimensions: 13” (h) x 10” (w) x 8” (d)

This flexibility ensures that your laboratory setup remains both efficient and functional, regardless of the size or scope of your operations.

Multiple Capacity Options for Varied Applications

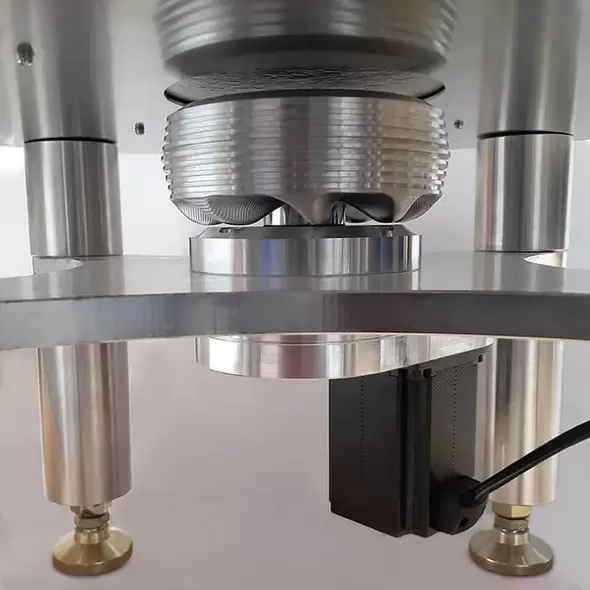

The Genesis Magnetic Heating Mantle comes in several sizes to accommodate different volume needs, ranging from 2 liters to 50 liters. Each size maintains the same superior build quality and performance, with feet designed for stability and the ability to adjust height by 4 inches for easier access.

Genesis Mantle Dimensions:

• 2-Liter Mantle: 14" (h) x 10.75" (w) x 10.75" (d) with feet 7.75"x7.75" apart
• 5-Liter Mantle: 14.625" (h) x 13" (w) x 13" (d) with feet 9.25"x9.25" apart
• 12-Liter Mantle: 17.5" (h) x 16.25" (w) x 16.25" (d) with feet 11.75"x11.75" apart
• 22-Liter Mantle: 18.125" (h) x 18" (w) x 18" (d) with feet 13"x13" apart
• 50-Liter Mantle: 21.625" (h) x 22.5" (w) x 22.5" (d) with feet 16"x16" apart

Each model is engineered to handle its respective capacity while providing precise temperature control, making the Genesis line suitable for a wide variety of heating applications.

C1D2 Certification and Optional UL/CSA/ETL Certification for Enhanced Safety

The Genesis Magnetic Heating Mantle is proudly C1D2 certified, meaning it meets stringent safety standards for operation in hazardous environments where flammable gases, vapors, or liquids may be present. For additional compliance, the Genesis line offers optional UL/CSA/ETL certifications, further emphasizing its dedication to maintaining the highest safety and operational standards.

Recommendations for Optimal Usage

To ensure maximum efficiency and safety, follow these guidelines:

• Mounting Options: Wall-mount the control box to save laboratory space, especially in high-demand environments.
• Customizable Control Boxes: For smaller operations, request smaller control boxes for the 2-liter and 5-liter models to conserve space.
• Temperature Monitoring: Utilize the 4 communication temperature ports for precise real-time monitoring to optimize operational accuracy.
• Power and Connection Considerations: Ensure that all connections are properly installed and maintained to adhere to the MIL-Spec power connection standards for safe operation.
