SVG-3 Summit Vacuum Gauge

In stock
0.00
(0 reviews) Write a review
$2,09999
Chat Now
  • Multi-Zone Monitoring: Monitors up to 3 zones with pre-installed circuits for accurate vacuum control.
  • 2-Zone Standard Setup: Comes standard with two calibrated zones for distillation and pump monitoring.
  • UHVP Ready: Third circuit is calibrated and ready for ultra-high vacuum pressure (UHVP) sensor integration.
  • Accurate Readings: Delivers precision vacuum readings up to x10-4 range.
  • Included Components: Comes with interface, three circuits, and two KF25 sensors for accurate readings.
  • Upgradeable: Easily expand to 3-zone monitoring by adding a UHVP sensor.

Tell us what you need

+
SVG-3 Summit Vacuum Gauge
In stock
0.00
(0 reviews) Write a review

Reviews

Average Star Rating:
0.00 (0 reviews Total)
  • 5 stars
    0
  • 4 stars
    0
  • 3 stars
    0
  • 2 stars
    0
  • 1 star
    0
Have you used the product?
Tell us something about it and help others make the right decision
Show reviews with:
5 stars (0 reviews)
4 stars (0 reviews)
3 stars (0 reviews)
2 stars (0 reviews)
1 star (0 reviews)

No reviews found

Description

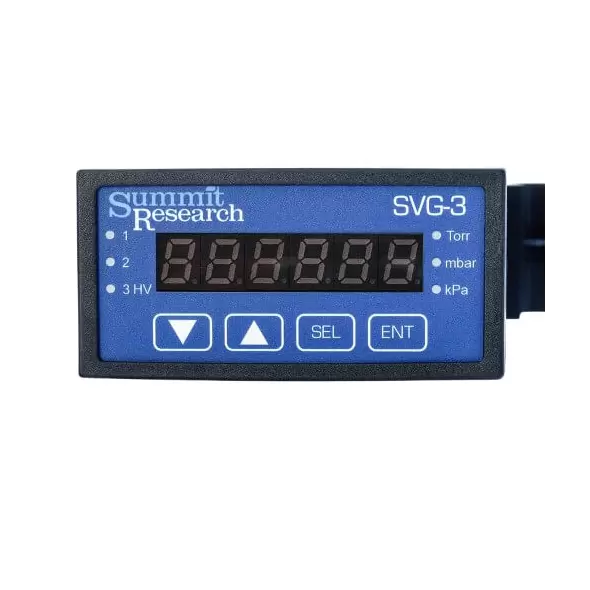

The SVG-3 Summit Vacuum Gauge is a state-of-the-art, 3-zone digital vacuum gauge, designed to provide highly accurate vacuum readings in multiple locations simultaneously. It is engineered for users who need precise data for vacuum regulation in distillation, vacuum pump monitoring, and ultra-high vacuum pressure (UHVP) applications. For the first-time user, the SVG-3 comes STANDARD with a 2-zone setup, which can monitor two locations with extreme accuracy within (A)x10-4 range. The system is expandable to a third zone, making it a versatile tool for advanced laboratory processes.

Accurate Multi-Zone Vacuum Monitoring

The SVG-3 includes two pre-installed and calibrated zones, providing accurate vacuum readings for up to two separate locations, such as the distillation area and the vacuum pump. The built-in third zone is pre-installed and calibrated, allowing users to easily add an UHVP sensor for ultra-high vacuum readings, making it a comprehensive vacuum monitoring system for a wide range of applications.

Key Monitoring Features:

  • 2-Zone Standard Setup: Allows for simultaneous monitoring of two locations, such as the vacuum pump and distillation system.
  • Third Zone for UHVP: The system includes a third circuit that is ready for an ultra-high vacuum pressure (UHVP) sensor, offering expanded functionality when needed.
  • Accurate to x10-4 Range: Delivers precise vacuum readings across a range of vacuum scales, offering high reliability and accuracy in critical processes.

Versatile Applications for Vacuum Control

The SVG-3 is designed to excel in several key areas of vacuum monitoring, from the distillation area to the vacuum pump and even ultra-high vacuum applications. It is capable of reading from different points in a vacuum system, allowing users to compare readings from the distillation process and the ultimate vacuum pulled by the pump.

Key Monitoring Locations:

  • Distillation Area: Monitor vacuum levels either at the cold trap or the reaction area, ensuring the accuracy of your distillation process.
  • Vacuum Pump Monitoring: Track the ultimate vacuum that the pump is pulling to maintain optimal performance.
  • Ultra-High Vacuum Monitoring: With the addition of a UHVP sensor, monitor ultra-high vacuum levels at a third location for advanced applications.

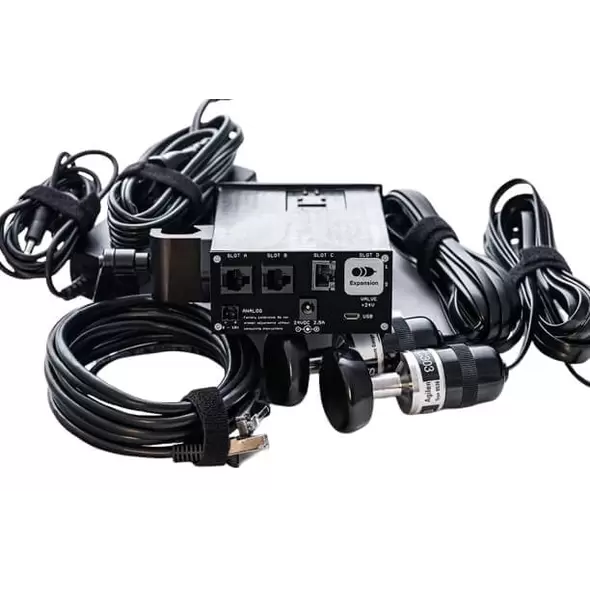

Included Components and Setup

The SVG-3 Summit Vacuum Gauge comes with three pre-installed and calibrated circuits, two of which are set up for standard 2-zone readings and the third reserved for UHVP sensor integration. The package also includes two KF25 sensors, known for their accuracy and durability, allowing users to monitor vacuum readings at the distribution adapter, distillation area, or pump.

Included Components:

  • 1x Interface: User-friendly interface for easy control and monitoring.
  • 3x Circuits: Pre-installed, calibrated circuits for 3-zone monitoring.
  • 2x KF25 Sensors: Standard 4-scale vacuum sensors for precise readings.
  • Ready for UHVP Upgrade: The third circuit is pre-installed and ready for a UHVP sensor to be added as an upgrade.

Upgrade Capabilities

The SVG-3 offers seamless expandability, allowing users to add a UHVP sensor for ultra-high vacuum readings. This upgrade is optional and can be pre-ordered with the initial setup or purchased later as needed, offering flexibility for labs that may require more advanced vacuum monitoring in the future.

Upgrade Options:

  • UHVP Sensor: Available as an add-on for ultra-high vacuum monitoring.
  • Full 3-Zone Monitoring: Expand your vacuum monitoring capabilities by activating the third zone with the UHVP sensor.

Recommendation

The SVG-3 Summit Vacuum Gauge is the ultimate solution for laboratories that require multi-zone vacuum monitoring with precision and flexibility. Its 2-zone standard setup, combined with the option to upgrade to a third UHVP sensor, makes it versatile enough for a range of applications, from distillation to high-vacuum processes. For more information or to place an order, contact Summit Research at 831-226-2948 or via email. Orders typically ship within 1-3 days after processing unless otherwise specified.

Attachments

PDF SPEC SHEET (SVG3-Start-Guide.pdf, 1,316 Kb) [Download]

PDF MANUAL (SVG-3-Manual_compressed__1_.pdf, 670 Kb) [Download]
