VacuuPure 10C

In stock
0.00
$10,60000

Shipping & Policies

Estimated Delivery This delivery estimate is based on the time it will take for the seller to ship out your order and for the carrier to deliver it.
Ships from United States

Sold by Summit Research

Returns: 30 days refund/replacement You can return any item within 30 days of delivery for a full refund or replacement, as long as it's unused and in its original packaging. Some products may be subject to restocking fees—see our return policy for full details.

Payment: Secure Transaction All payments are handled via industry-standard encryption and fraud protection. Your card details are never stored by us, and you’re covered by buyer-protection policies for a worry-free checkout.

  • Oil-Free Operation: Ensures a cleaner vacuum process without contamination.
  • Chemical Resistance: Handles aggressive gases and vapors safely.
  • Versatile Pressure Range: Operates from atmospheric pressure to 10^-3 mbar.
  • High Vapor Load Handling: Extraordinary condensate compatibility eliminates the need for gas ballast.
  • Integrated Regeneration Mode: Rapidly dries the pump for increased sample throughput.
  • Specifications:
  • Noise Level: 55 dBA
  • Weight: 21.5 kg
  • Ultimate Vacuum: 5 x 10^-3 mbar
  • Max Pumping Speed: 9 m³/h

Tell us what you need

Banner Image

SELL MORE
WITH GROWCYCLE

Join as a seller and connect with thousands of B2B buyers nationwide!

Sign Up

+
VacuuPure 10C
In stock
0.00

Description

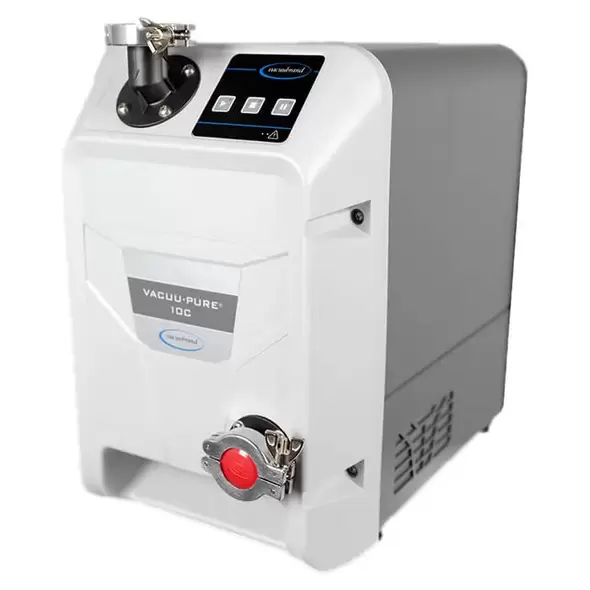

The VacuuPure 10C is an advanced dry screw vacuum pump that delivers reliable oil-free vacuum technology in the pressure range of 10^-3 mbar. This innovative pump offers three essential benefits for users: it is 100% oil-free, chemically resistant, and designed with no wear parts, making it an ideal solution for clean processes and the production of pure products.

Key Features and Benefits

  • Oil-Free Operation: The VacuuPure 10C eliminates the need for oil, ensuring a cleaner vacuum process without the risk of contamination.
  • Chemical Resistance: Capable of handling aggressive gases and vapors, this pump is engineered for high chemical resistance, allowing it to be used in a variety of applications without the need for a cold trap.
  • Versatile Pressure Range: Designed to operate effectively from atmospheric pressure down to its ultimate vacuum, making it suitable for a wide range of vacuum applications.
  • High Vapor Load Handling: The pump’s extraordinary condensate compatibility allows it to manage high vapor loads efficiently, negating the necessity for a gas ballast. This results in enhanced pumping speed and reduced noise levels.
  • Integrated Regeneration Mode: This feature enables rapid drying of the pump at the end of the process, significantly increasing sample throughput compared to other pump technologies.

Specifications

  • Max Pumping Speed: 9 m³/h
  • Ultimate Vacuum (Absolute): 5 x 10^-3 mbar (at 1013 mbar ambient pressure)
  • Max Inlet Pressure: Atmospheric pressure
  • Max Outlet Pressure: 15 mbar above atmospheric pressure
  • Ambient Temperature Range (Operation): 10 – 40 °C
  • Ambient Temperature Range (Storage): -10 – 60 °C
  • Inlet Connection: KF 25 flange
  • Outlet Connection: KF 25 flange
  • Rated Motor Power: 0.7 kW
  • Protection Class: IP 20
  • Dimensions (L x W x H): 507 x 269 x 413 mm
  • Weight: 21.5 kg
  • Noise Level (Sound Pressure Level): 55 dBA (uncertainty 3 dBA)

Included Items

The pump comes completely mounted and ready for use, with the following items included:

  • Connection with small flange KF DN 25 (including 2 centering and clamping rings)
  • User manual

For establishing a hose nozzle connection, suitable KF flanges with hose nozzle are available for order.

Recommendation

The VacuuPure 10C is a cutting-edge solution for laboratories requiring efficient, oil-free vacuum technology. Its robust design, high chemical resistance, and exceptional performance capabilities make it an indispensable tool for achieving optimal results in various vacuum applications. For further details or to place an order, please contact your local distributor.
