TG-100HVR Folding Series

The TG-100HVR Folding Series is a flexible and multifaceted LED grow light system designed for large-scale commercial horticulture. It features advanced performance configurations, custom spectrums, and remote power capabilities which set a new benchmark for professional growers in industrial horticultural lighting.

Engineered by TSRgrow to meet the demands of high-output cultivation environments, the TG-100HVR series maximizes operational efficiency while still supporting exceptional plant growth, minimizing infrastructure intricacies. The removal of in-room drivers, traditionally integrated in architectural structures, along with dimming wires and contactor systems, improves the sleekness and temperature of the growing climate and improves integration into modern growing operations.

Remote control with Tunable Power Efficiency

Through TGHV Smart Power Servers, one of the unique features of the TG-100HVR Folding Series is remote power integration. Access to these systems grants total 100% power control, providing precise control over DLI and PPFD. With this level of control, growers are capable of adjusting the light spectrum and intensity for the growth stage, crop type, and production goals.

This system integrates technology at a single point to limit overall functions, in doing so alleviating the need for supplementary cooling systems because relocatable heating elements are not placed within the grow room. Since there is no need for troubleshooting within the room, the daisy-chain plug-and-play arrangement simplifies the installation process and enables rapid deployment throughout larger commercial areas.

Operational Efficiency by Arrangement

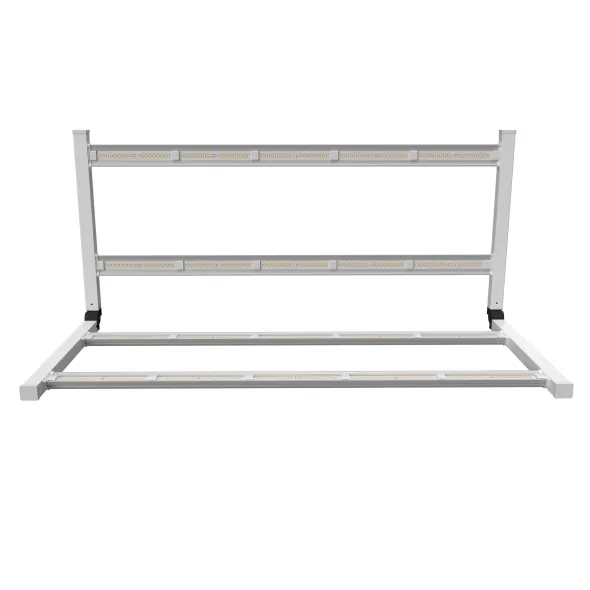

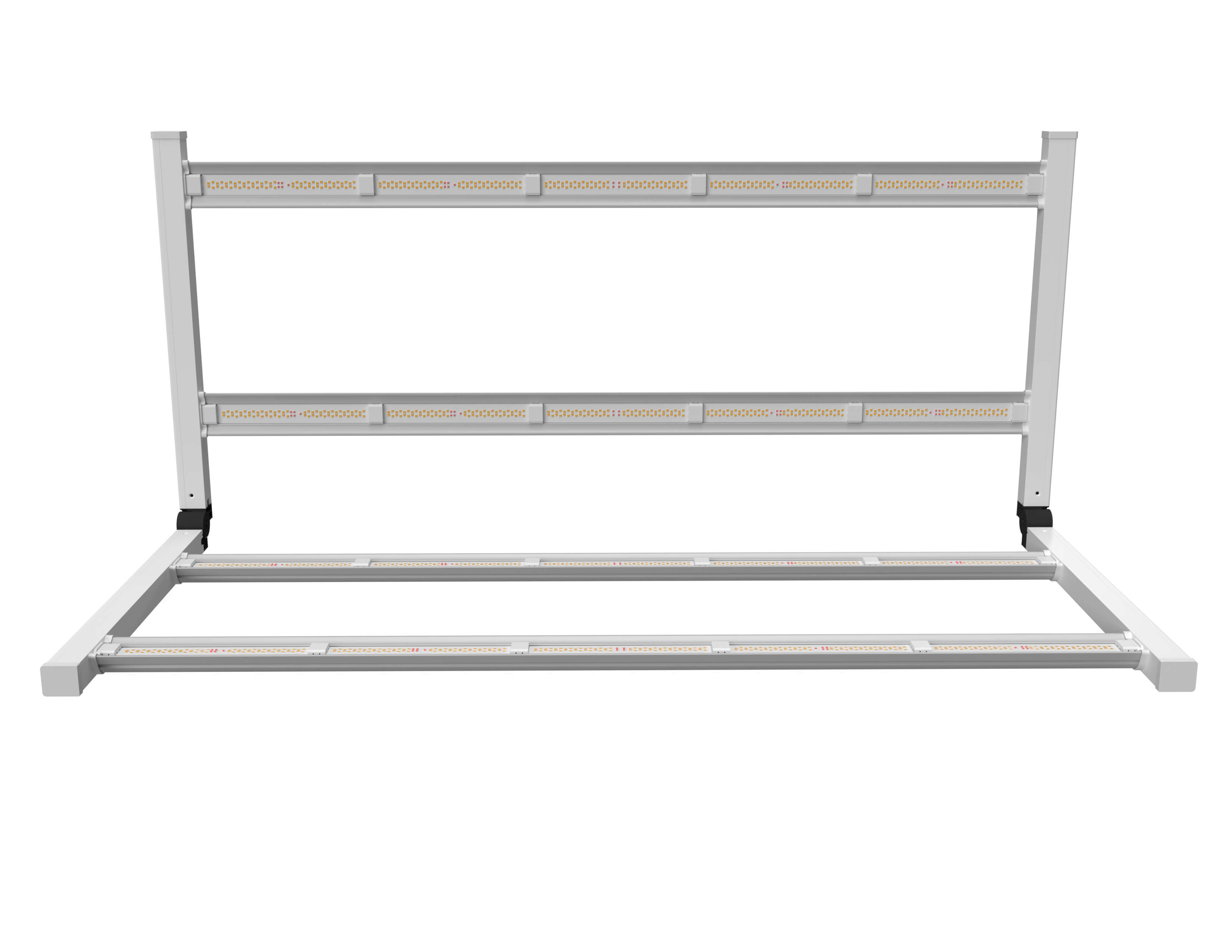

With the TG–100HVR Folding Series, performance flexibility scales with your grow. To better suit your growing objectives, a minimum of 1000W output with 8 bars is readily available and is adjustable in terms of wattage and number of bars, permitting a maximum of 750W and 6 bars or 500W and 4 bars.

To support Plants with vigorous vegetative growth and those  undergoing high-yield flowering stages, this fixture is constructed to provide a PPF output of 2700 µmol/s with a 2.7 µmol/J effectiveness helping in the active growing season. With the capability to support 0-100% dimming, full range control on output can be maintained which ensures versatility through the plant life cycle.

Broad Spectrum Coverage with Far Red and UV

This TG-100HVR is compatible with TSRgrow’s full plant spectrums as WL3 and Flower Power also being part of the supported configurations. In addition to promoting flowering and increasing yields, these lights further enhance terpene expression which enables better quality bloom features like fragrance.

Customizable UV spectrum options can be requested, enabling advanced users to optimize plant responses for resin production, pigmentation changes, and protective measures against pests. Tailored spectrums are also provided to address particular project needs or research scopes.

Industrial Grade Design and Certifications

Built to withstand wet and harsh environments, the TG-100HVR Folding Series has a complete IP66 water resistance rating, allowing continued use in constantly high humidity and wet areas. It is also UL 8800 and UL 1598 certified, marking its eligibility for commercial use while ensuring both safety and compliance.

The fixture permits passive thermal regulation without mechanical fans and active cooling systems, making it completely quiet, lowering maintenance, and providing a heat output range of 0 and 3414 BTU/hr depending on the configuration. The system is also engineered to function in -20ºC to 35ºC, further enhancing reliability in various climates and facilities.

Installation and Coverage

Each fixture is63cm x 120cm which aids efficient rack mounting or installation in open canopy schematic. The optimum mounting height for the units relative to the plant canopy is 15 to 30 cm for consistent PPFD delivery without hot spots.

Having centralized troubleshooting and maintenance systems helps control multiple fixtures within extensive areas which subsequently lowers operating costs and improves productivity. The absence of room-placed drivers and dimming wires results in reduced setup time, less clutter, and improved energy efficiency for growers.

Final Words

The TSRgrow TG-100HVR Folding Series is the first in the line of TSRgrow fixtures that seeks to address the needs of high-performing commercial cultivators. It offers intelligent remote power distribution, dynamic spectrum tuning, scalable architecture for precision cultivation, and ROI maximization.

The TG-100HVR boasts exceptional performance with unparalleled PPF, a strong build, no heat produced in the room, and centralized engdierecontrol. From large indoor farms and vertical grow systems to climate-controlled greenhouses, this lighting system is suitable for providing performance, control, flexibility, and efficiency.
