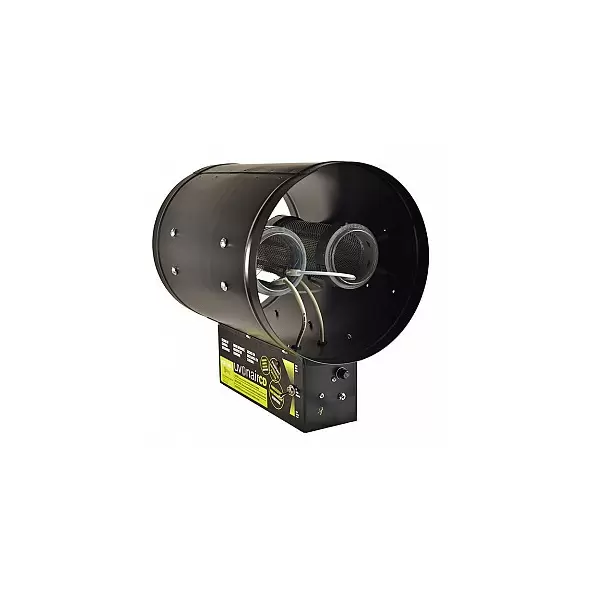

Uvonair Cd-1000-2

The Uvonair® CD-1000-2 Two Cell In-Duct Ozone Generator is a high-output Corona Discharge (CD) system designed for effective and energy-efficient odor control in large spaces. Renowned for its superior ozone production, this ozone generator is ideal for areas ranging from 20,000 cubic feet (600 m³) to 40,000 cubic feet (1200 m³). The adjustable ozone output feature allows users to regulate the ozone levels based on specific odor demands, promoting energy conservation during periods of low demand. The Uvonair® CD-1000-2 requires no servicing, making it a low-maintenance solution for continuous odor control.

Key Features

High Output Corona Discharge Technology

The Uvonair® CD-1000-2 Two Cell model is engineered with advanced Corona Discharge technology, which allows for higher ozone production compared to other models. Ozone is a powerful oxidizer that neutralizes odor molecules at their source by breaking down their molecular structure. This technology makes the Uvonair® CD-1000-2 an excellent choice for areas with persistent odors, ensuring clean and odor-free environments.

Adjustable Ozone Settings

Equipped with an adjustable (HIGH/LOW/OFF) switch, the Uvonair® CD-1000-2 allows users to modify the ozone output based on the specific odor control needs of the space. This flexibility ensures optimal performance while conserving energy during periods of low demand. Whether the room requires heavy odor elimination or lighter treatment, the Uvonair® CD-1000-2 can be tailored to suit the situation.

Ideal for Large Spaces

The Uvonair® CD-1000-2 is designed to handle large spaces between 20,000 cubic feet (600 m³) and 40,000 cubic feet (1200 m³), making it suitable for commercial and industrial applications where odor control is a significant concern. Whether used in factories, warehouses, or other large-scale environments, the unit ensures that air is treated effectively as it is exhausted through the duct system.

Versatile Duct Installation

This model is specifically designed for installation into 10-inch (25 cm) ducts. However, it can be adapted to work with other duct sizes using adapters, though airflow efficiency may be affected in larger ducts. Uvonair® CD models are highly recommended for use in high-odor situations and larger duct systems, offering flexible installation options for different HVAC setups.

Suitable for Humidity and Temperature Variations

The Uvonair® CD-1000-2 is built to perform in high-humidity areas and across a wide range of temperatures. This feature makes the unit suitable for use in diverse environments, including those with fluctuating weather or moisture conditions. The system’s robust design ensures consistent ozone output even in challenging conditions, providing reliable odor control.

Environmentally Friendly and Maintenance-Free

As an environmentally friendly solution, the Uvonair® CD-1000-2 generates no hazardous waste, contributing to a sustainable odor control solution. Ozone naturally reverts to oxygen, leaving no harmful residues behind. Additionally, the system requires no maintenance, making it a hassle-free, long-term solution for odor control in large spaces. Users benefit from a full one-year warranty, ensuring peace of mind and product reliability.

Installation and Operation

Installation Guidelines

• Placement: Install the Uvonair® CD-1000-2 at least 15 feet (5 meters) from the end of the exhaust duct to allow sufficient time for the ozone to react with the odors before the treated air is released. This ensures maximum efficiency in odor neutralization.
• Duct Compatibility: The unit is designed for use in 10-inch ducts but can be adapted to other duct sizes using appropriate adapters (not included). For larger ducts, consider airflow limitations to ensure optimal ozone exposure.
• Electrical Requirements: The system requires a 110V 60Hz power supply and comes with a 6-foot (2-meter) grounded three-prong plug, along with a surge protection fuse for safe operation.
• Fan Integration: As a safety feature, the Uvonair® CD-1000-2 must be installed in conjunction with a ventilation exhaust fan, and the ozonator should always be positioned on the output side of the fan to optimize performance.

Maintenance-Free Operation

One of the key advantages of the Uvonair® CD-1000-2 is its maintenance-free operation. The generator is designed to provide continuous odor control without the need for regular servicing or part replacement, making it a highly convenient solution for users seeking minimal upkeep. The unit’s durability and robust performance ensure long-term reliability in various environments.

Operation Directions

• Installation Support: The unit must be supported using duct-hanging wires, secured to a support bracket attached to joists above. After installation, ensure the system is airtight within the duct using duct tape or clamps to prevent any air leaks.
• Safety Measures: Ensure power is disconnected before servicing the unit, and always follow manufacturer instructions for safe and effective operation. The system should always be synchronized with the ventilation fan to ensure proper airflow and safety.
