25” Standard Controller Cabinet for Hydro-X Pro (SCC-1)

25” Standard Controller Cabinet for Hydro-X Pro (SCC-1)

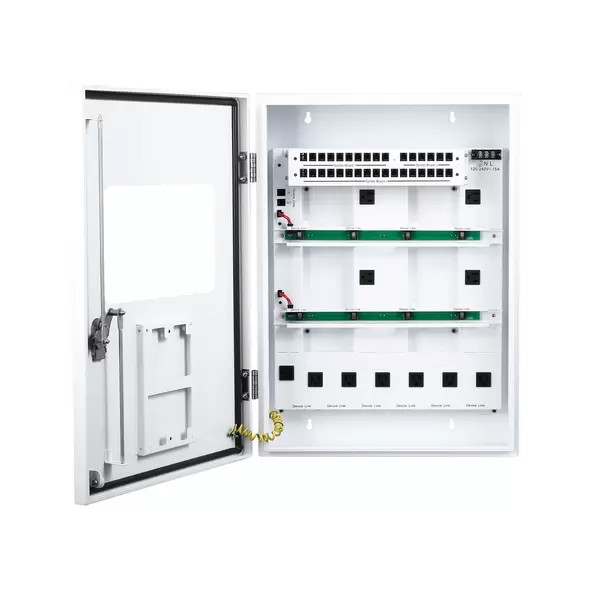

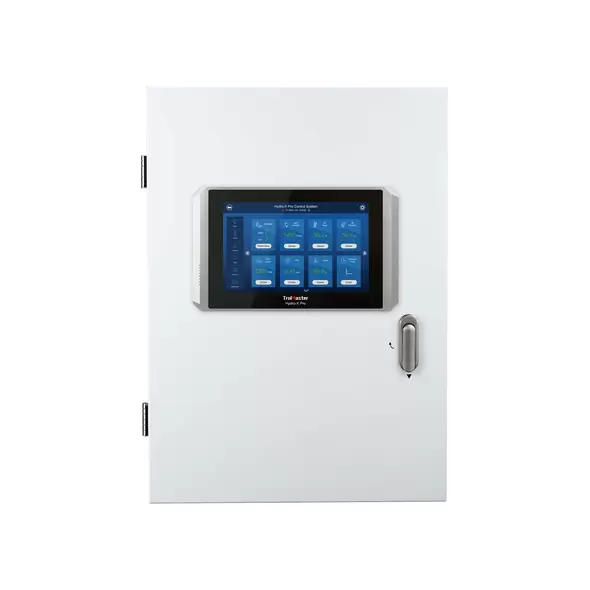

The SCC-1 25" Controller Cabinet is a modular electrical enclosure and wire management system specifically tailored for use with TrolMaster Control systems, including the Hydro-X Pro and Aqua-X Pro. This cabinet is meticulously designed to accommodate any of TrolMaster’s controllers, facilitating a professional installation.

The enclosure ensures that all device stations are securely housed within the cabinet, thereby keeping them clean and dry. It provides a safe and orderly environment for mounting power supplies and modules while also offering an efficient solution for organizing RJ12 cables.

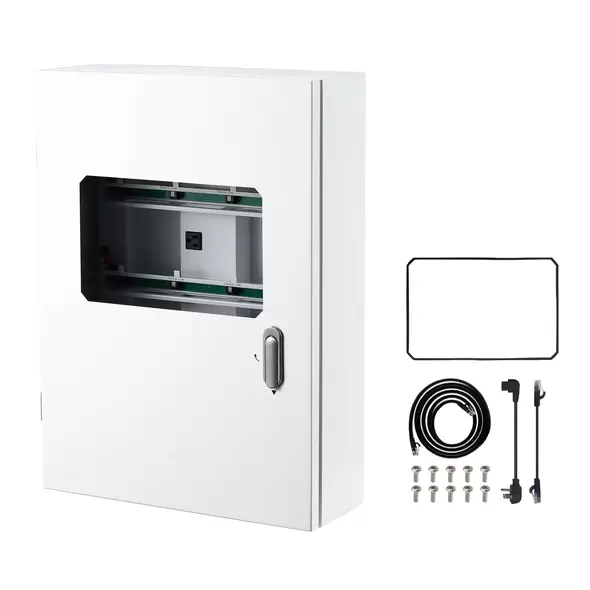

Contents:

• 1x Controller Cabinet
• 1x Installation Manual
• 4x Long RJ-12 Cables
• 16x Short RJ-12 Cables
• 4x Power Cables (for OA6-24/OA6-110)
• 10x OA6-24/OA6-110 Screw Set

Dimensions and Capacity:

• Overall Dimensions: 25" (L) x 18" (W) x 6.26" (H)
• Splitter Boards:
  • #1: 10 ports (top)
  • #2: 6 ports (top)
  • #3: 17 ports (top)
  • #4: 2 x 4 ports (middle splitter bars)
  • #5: 6 ports (bottom)
• Power Outlet Configuration: 4 + 1 + 6

Operating Conditions:

• Temperature Resistance: Operates effectively within a temperature range of 32°-104°F.
• Input Voltage: 120V
• Maximum Amperage: 15A

This comprehensive system offers both functionality and flexibility, making it an ideal choice for managing and protecting your TrolMaster control setups.

This cabinet not only enhances the physical arrangement of your control system but also contributes to the longevity and reliability of the equipment by protecting it from environmental factors.
