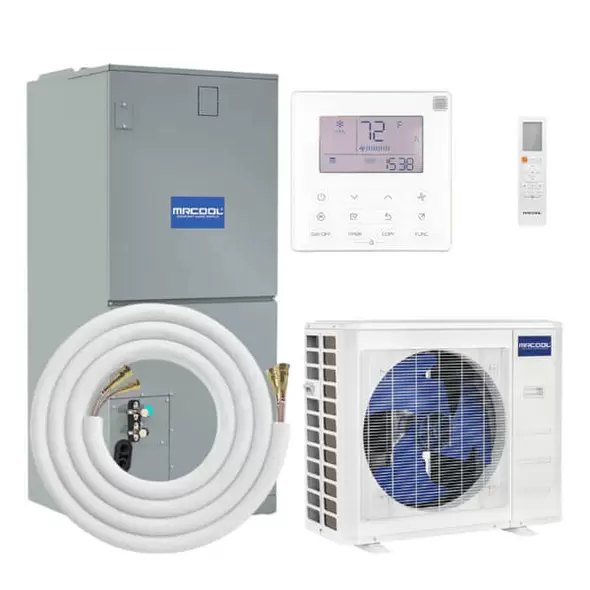

Mrcool 24K BTU HyperHeat Central Ducted Air Handler And Heat Pump Condenser - 17.4 SEER2

The MRCOOL 24K BTU Hyper Heat Central Ducted System is designed to deliver exceptional heating and cooling performance with a 17.4 SEER2 rating, ensuring high energy efficiency and cost savings. This ducted system is ideal for smaller homes and modular spaces, offering flexible installation options and advanced temperature control. Capable of operating in extreme climates, from -22°F to 122°F, it provides reliable performance regardless of the season.

Powerful Heating and Cooling for Diverse Climates

The MRCOOL Hyper Heat System ensures consistent indoor comfort, even in the harshest weather conditions.

• High SEER2 & EER2 Ratings – Achieves 17.4 SEER2 and 11.7 EER2, reducing energy consumption and lowering electricity bills.
• Extreme Temperature Range – Operates efficiently from -22°F to 122°F, ensuring performance in freezing winters and hot summers.
• Hyper Heat Technology – Provides 24,000 BTU heating and cooling capacity, maintaining a stable indoor climate.
• Quiet Operation – The condenser operates at 62 dB, while the air handler runs between 33 to 39 dB, ensuring minimal noise intrusion.

Easy and Versatile Installation

The MRCOOL 24K BTU Hyper Heat System is built with installation convenience in mind, offering multiple setup options.

• No-Vac Quick Connect Line Set – Pre-charged with R-410A refrigerant, eliminating the need for vacuuming or welding.
• Flexible Installation Options – Compatible with traditional flare and sweat fittings, providing alternatives for professional HVAC installation.
• Multi-Positional Air Handler – Supports upflow, downflow, and horizontal configurations, adapting to different home layouts.
• Compact and Lightweight Design – The air handler and condenser are engineered for space-efficient installation in modular and manufactured homes.

Durable and Low-Maintenance Design

Built from painted galvanized steel, this system ensures long-lasting performance while requiring minimal maintenance.

• Side Discharge Design – Enhances airflow efficiency, maximizing cooling and heating output.
• Slide-Out Blower Assembly – Allows for easy maintenance and quick access for cleaning and servicing.
• Self-Diagnostics Panel – Enables real-time troubleshooting, reducing the need for frequent technician visits.

Advanced Climate Control with Smart Features

This system is equipped with modern technology to enhance temperature control and user convenience.

• Wired Thermostat & Wireless Remote – Provides precise temperature adjustments for customized comfort.
• Adjustable Thermostat – Offers various operating modes, including cool, heat, dry, auto, and fan.
• Compatible with Auxiliary Heat Kits – Supports 5kW, 8kW, 10kW, and 15kW heat kits for enhanced heating capabilities.

Comprehensive 10-Year Warranty for Peace of Mind

Every MRCOOL Hyper Heat System includes an industry-leading 10-year parts and labor warranty, ensuring long-term protection.

• Automatic Warranty Activation – No registration required for labor coverage.
• AHRI Certified Performance – Complies with industry standards, ensuring reliability and efficiency.

Technical Specifications

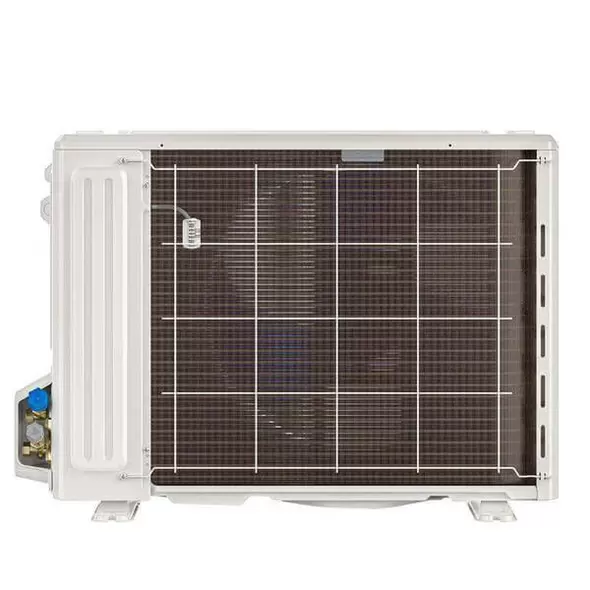

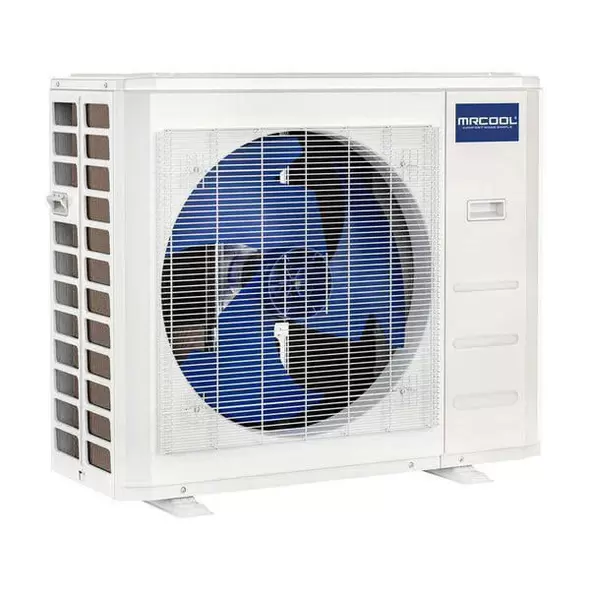

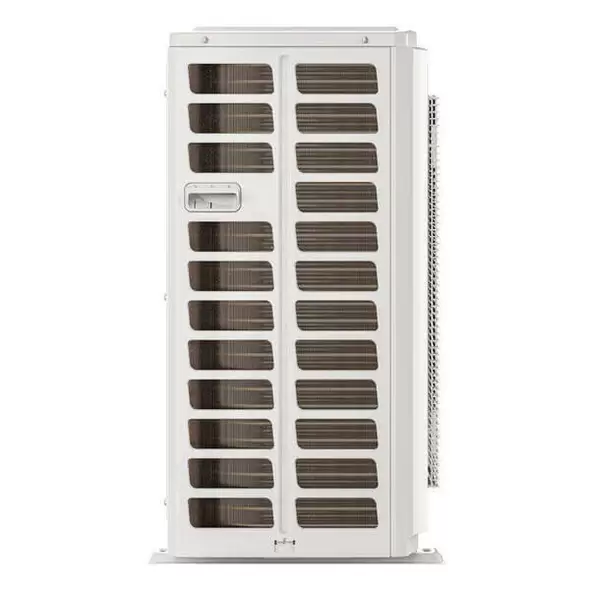

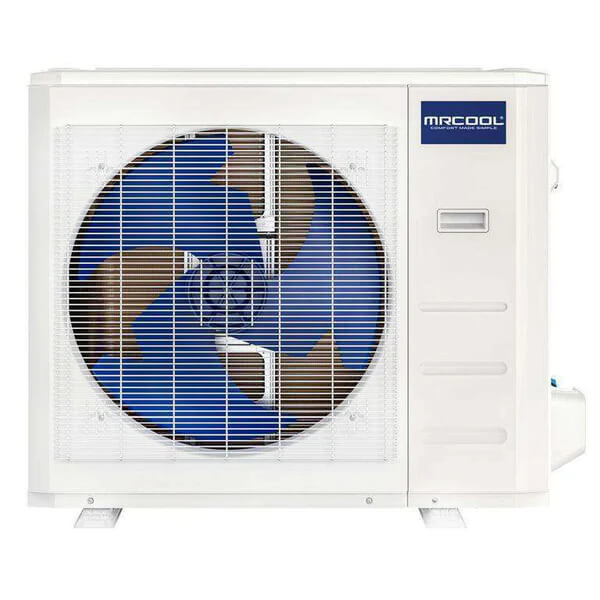

Condenser

• Dimensions: 37.24"W x 16.14"D x 31.89"H
• Weight: 136.69 lbs
• Cooling Capacity: 24,000 BTU
• Heating Capacity: 24,000 BTU
• Electrical Requirements: 208-230V/60HZ/20.5 to 35A
• Max Line Set Length: 164.04 ft
• Refrigerant Type: R-410A (102.29 oz volume)
• Noise Level: 62 dB

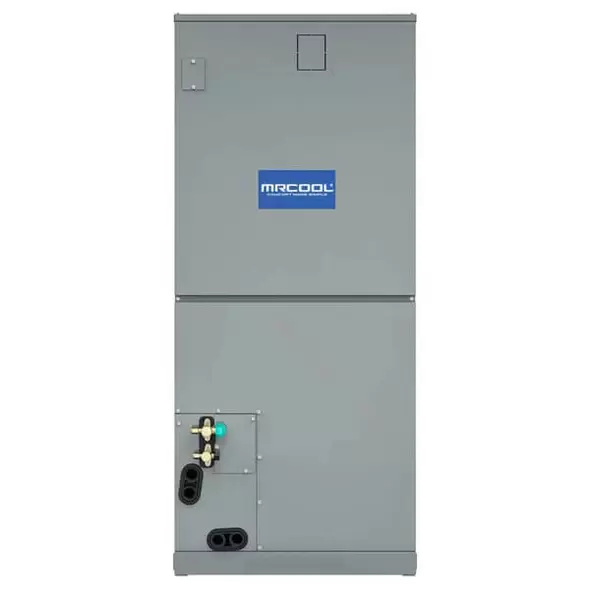

Air Handler

• Dimensions: 21.02"W x 17.52"D x 45"H
• Weight: 105.60 lbs
• Airflow Configurations: Downflow, Upflow, Horizontal Left, Horizontal Right
• Electrical Requirements: 208-230V/60HZ/4 to 15A
• Noise Level: 33 to 39 dB

Operating Conditions

• Cooling Mode Temperature Range: 5°F to 122°F
• Heating Mode Temperature Range: -22°F to 75°F
• Room Temperature Range: Cool: 61°F to 90°F | Heat: 32°F to 86°F | Dry: 50°F to 90°F

Additional Features

• Modes: Cool, Heat, Dry, Auto, Fan
• Includes: Remote & Wired Thermostat
• Certificates: AHRI Certified
• Warranty: 10 Years (Parts & Labor)

Final Words

The MRCOOL 24K BTU Hyper Heat Central Ducted System delivers exceptional energy efficiency, powerful heating and cooling capabilities, and flexible installation options. Whether you’re looking to upgrade an existing HVAC system or install a new high-performance solution, this unit is ideal for smaller homes, modular spaces, and manufactured homes. With smart controls, durable construction, and industry-leading warranty coverage, this system ensures reliable comfort in any season.
