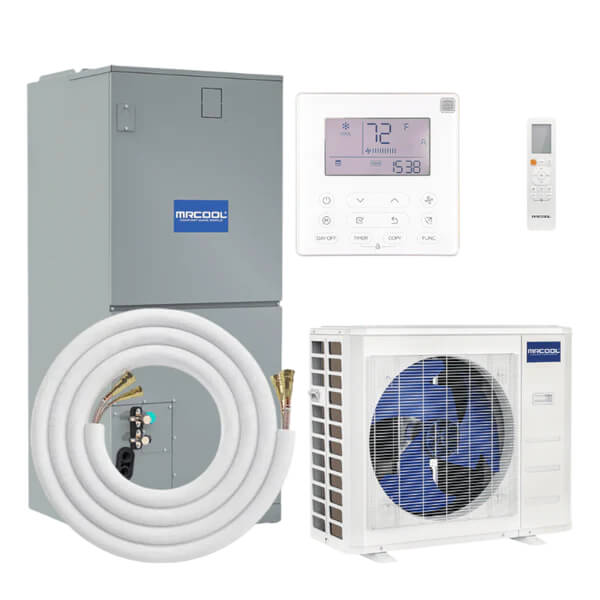

Mrcool 36K BTU HyperHeat Central Ducted Air Handler And Heat Pump Condenser - 16 SEER2

The MRCOOL 36K BTU Hyper Heat Central Ducted System is designed for powerful heating and cooling, offering 16 SEER2 energy efficiency to lower utility costs while maintaining superior comfort. This system is built to function reliably in extreme temperatures, from -22°F to 122°F, making it ideal for a variety of climates. Whether installed in modular, manufactured, or traditional homes, this system delivers consistent, high-performance temperature control year-round.

Advanced Heating and Cooling Performance

This high-efficiency system is engineered to deliver powerful heating and cooling capabilities with minimal energy consumption.

• 16 SEER2 & 10 EER2 Ratings – Optimized for energy savings, reducing your monthly electricity bills.
• Extreme Weather Adaptability – Functions in frigid winters and scorching summers, maintaining a stable indoor environment.
• Hyper Heat Technology – Provides 36,000 BTU cooling and 40,000 BTU heating, ensuring fast and efficient temperature adjustments.
• Quiet Operation – The condenser operates at 64 dB, while the air handler runs between 41 to 45 dB, keeping noise levels low.

Hassle-Free Installation with No-Vac Quick Connect

The MRCOOL 36K BTU Hyper Heat System is designed for quick and easy installation, reducing labor time and complexity.

• No-Vac Quick Connect Line Set – Pre-charged with R-410A refrigerant, eliminating the need for vacuuming or welding.
• Traditional Installation Compatibility – Also supports flare and sweat fittings, providing flexibility for professional HVAC installers.
• Multi-Positional Air Handler – Configurable for upflow, downflow, or horizontal setups, allowing adaptability in different home layouts.
• Compact and Durable Design – Engineered for space-efficient installation, making it perfect for modular and manufactured homes.

Durable and Low-Maintenance Construction

Built with painted galvanized steel, this system is designed to withstand harsh environmental conditions while requiring minimal maintenance.

• Side Discharge Design – Improves airflow efficiency, optimizing heating and cooling distribution.
• Slide-Out Blower Assembly – Enables easy access for cleaning and maintenance, reducing service downtime.
• Self-Diagnostics Panel – Helps identify system issues quickly, simplifying troubleshooting and repairs.

Smart Climate Control for Maximum Comfort

The MRCOOL Hyper Heat System is equipped with intelligent climate control features for enhanced user convenience.

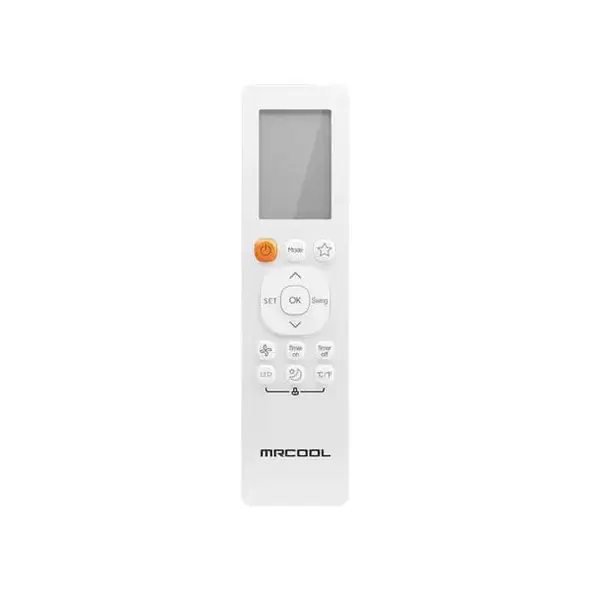

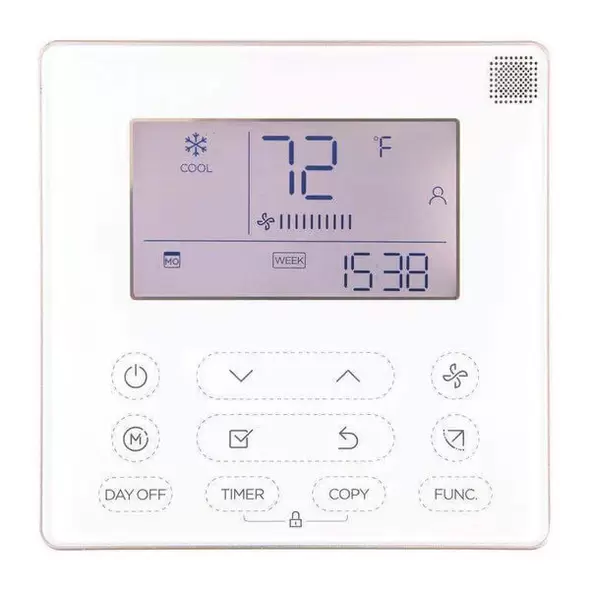

• Wired Thermostat & Wireless Remote – Provides precise temperature adjustments for customized comfort settings.
• Adjustable Thermostat – Offers multiple operating modes, including cool, heat, dry, auto, and fan.
• Compatible with Auxiliary Heat Kits – Supports 5kW, 8kW, 10kW, and 15kW heat kits for enhanced heating performance.

Comprehensive 10-Year Warranty for Long-Term Protection

Every MRCOOL Hyper Heat System is backed by a 10-year parts and labor warranty, ensuring peace of mind and reliable performance.

• No Registration Required – The labor warranty is automatically activated upon installation.
• AHRI Certified Performance – Meets industry standards, guaranteeing high-quality and energy-efficient operation.

Technical Specifications

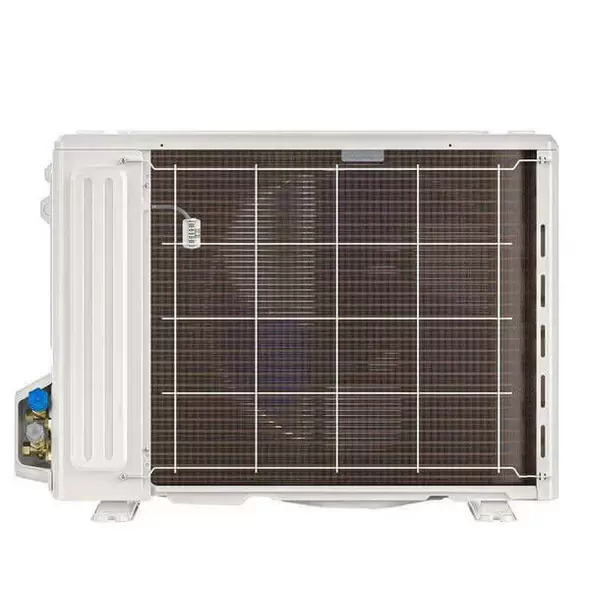

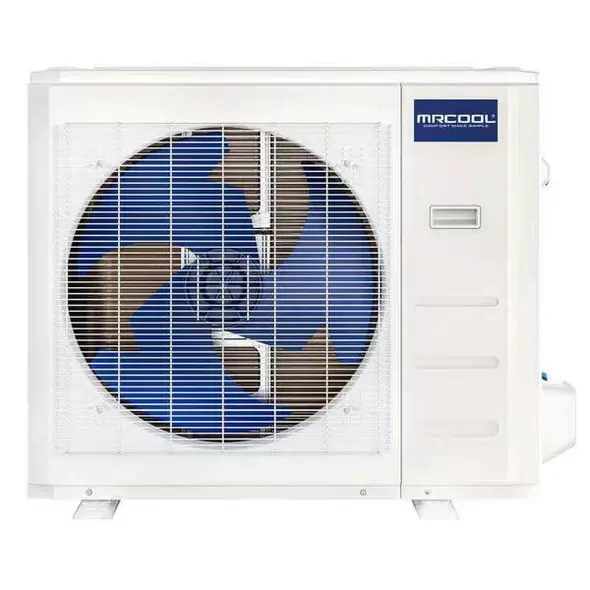

Condenser

• Dimensions: 37.48"W x 16.14"D x 52.48"H
• Weight: 227.07 lbs
• Cooling Capacity: 36,000 BTU
• Heating Capacity: 40,000 BTU
• Electrical Requirements: 208-230V/60HZ/41 to 50A
• Max Line Set Length: 213.25 ft
• Refrigerant Type: R-410A (165.79 oz volume)
• Noise Level: 64 dB

Air Handler

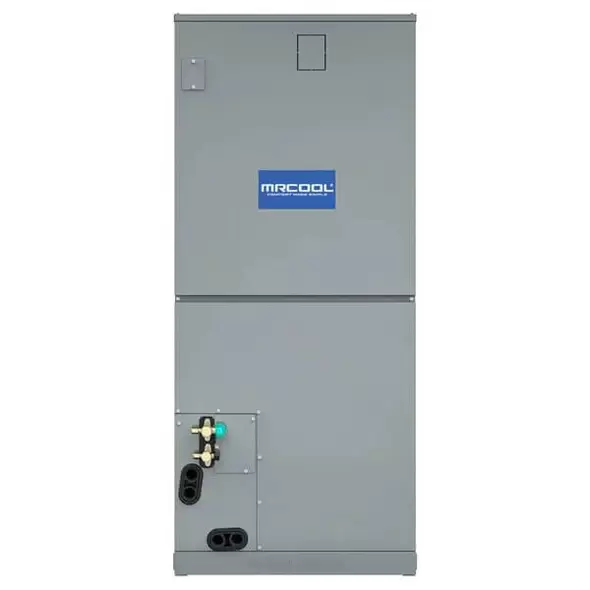

• Dimensions: 21.02"W x 21.02"D x 49.02"H
• Weight: 129.63 lbs
• Airflow Configurations: Downflow, Upflow, Horizontal Left, Horizontal Right
• Electrical Requirements: 208-230V/60HZ/5 to 15A
• Noise Level: 41 to 45 dB

Operating Conditions

• Cooling Mode Temperature Range: 5°F to 122°F
• Heating Mode Temperature Range: -22°F to 75°F
• Room Temperature Range: Cool: 61°F to 90°F | Heat: 32°F to 86°F | Dry: 50°F to 90°F

Additional Features

• Modes: Cool, Heat, Dry, Auto, Fan
• Includes: Remote & Wired Thermostat
• Certificates: AHRI Certified
• Warranty: 10 Years (Parts & Labor)

Final Words

The MRCOOL 36K BTU Hyper Heat Central Ducted System is an energy-efficient, high-performance heating and cooling solution that provides year-round comfort and installation flexibility. Whether upgrading an existing HVAC system or installing a new reliable, low-maintenance unit, this system is ideal for homes requiring efficient, quiet, and powerful climate control. With advanced smart features, a durable design, and industry-leading warranty protection, this unit ensures long-term performance and comfort.
