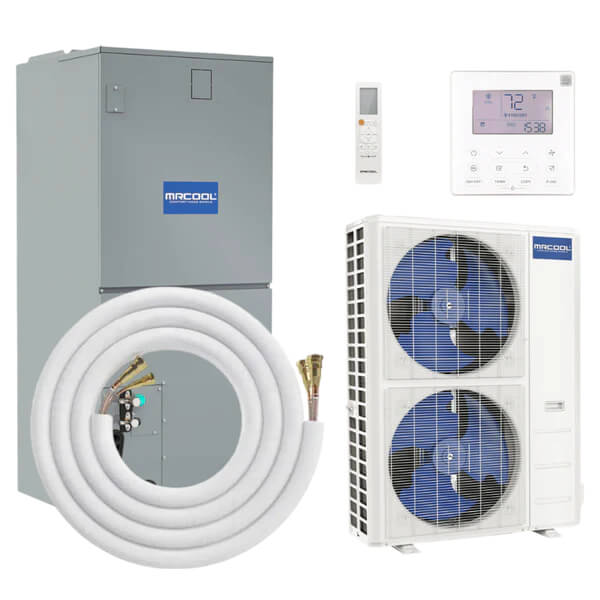

Mrcool 48K BTU HyperHeat Central Ducted Air Handler And Heat Pump Condenser - 15.6 SEER2

In stock
0.00
(0 reviews) Write a review
CENTRAL-48-HP-230A00
Request Quote
Chat Now
  • Energy-Efficient Performance – 15.6 SEER2 and 8.2 EER2 ratings for optimized energy savings.
  • Hyper Heat Technology – Provides 37,000 BTU cooling and 50,000 BTU heating for consistent comfort.
  • Extreme Climate Adaptability – Operates from -22°F to 122°F, ensuring reliable year-round performance.
  • Quick & Easy Installation – No-Vac Quick Connect Line Set for a hassle-free setup.
  • Versatile Installation Options – Supports upflow, downflow, and horizontal configurations.
  • Quiet & Durable Design – Air handler operates at 43.5 to 47 dB, condenser at 64 dB for low-noise operation.
  • Smart Temperature Control – Includes wired thermostat and wireless remote for easy adjustments.
  • Supports Auxiliary Heat Kits – Compatible with 8kW, 10kW, 15kW, and 20kW heat kits for additional heating power.

Tell us what you need

Description

The MRCOOL 48K BTU Hyper Heat Central Ducted System is a powerful heating and cooling solution designed to provide energy efficiency and superior comfort throughout the year. With a SEER2 rating of 15.6, this system optimizes energy consumption while maintaining exceptional performance in extreme climates, operating smoothly in temperatures ranging from -22°F to 122°F. It is engineered for homes up to 2,000 sq. ft., making it a perfect choice for diverse living spaces.

Advanced Heating and Cooling Efficiency

This high-performance HVAC system ensures reliable temperature control in all weather conditions.

  • 15.6 SEER2 & 8.2 EER2 Ratings – Delivers efficient energy use for cost-effective operation.
  • Hyper Heat Technology – Provides 37,000 BTU cooling and 50,000 BTU heating, ensuring fast and consistent climate control.
  • Extreme Temperature Adaptability – Functions efficiently in a wide range of outdoor conditions, from -22°F in winter to 122°F in summer.
  • Quiet Operation – Air handler runs between 43.5 to 47 dB, while the condenser operates at 64 dB, ensuring minimal noise.

Effortless Installation with No-Vac Quick Connect

Designed for seamless installation, this system reduces labor time and setup complexity.

  • No-Vac Quick Connect Line Set – Pre-charged with R-410A refrigerant, eliminating the need for vacuuming or welding.
  • Traditional Installation Compatibility – Also supports flare and sweat fittings, providing flexibility for professional HVAC installers.
  • Multi-Positional Air Handler – Supports upflow, downflow, or horizontal configurations, making it adaptable to different home layouts.
  • Extended Line Set Capability – Supports a maximum line set length of 213.25 ft., ideal for various installation setups.

Durability and Low-Maintenance Construction

Engineered with high-quality materials, this system is built for long-term use with minimal maintenance requirements.

  • Painted Galvanized Steel Housing – Enhances durability and weather resistance, protecting the system from external damage.
  • Side Discharge Design – Improves airflow efficiency, ensuring optimal heating and cooling distribution.
  • Slide-Out Blower Assembly – Enables easy maintenance and quick access for cleaning and servicing.
  • Self-Diagnostics Panel – Allows for quick troubleshooting, reducing the need for frequent service calls.

Smart Climate Control for User Convenience

This system is equipped with intelligent climate control features for enhanced comfort and efficiency.

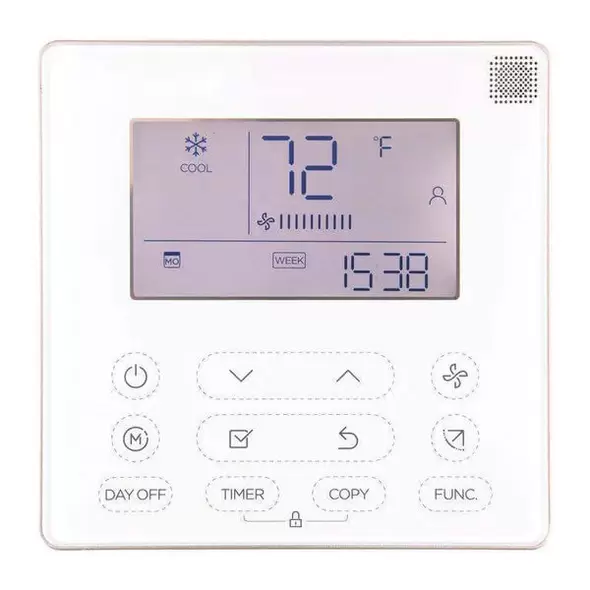

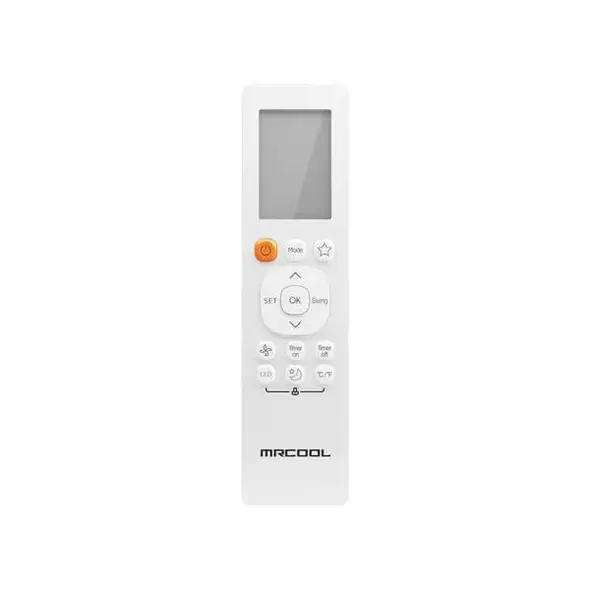

  • Wired Thermostat & Wireless Remote – Provides easy, customized climate control at your fingertips.
  • Adjustable Thermostat – Offers multiple operating modes, including cool, heat, dry, auto, and fan.
  • Supports Auxiliary Heat Kits – Compatible with 8kW, 10kW, 15kW, and 20kW heat kits, enhancing heating capabilities during extreme cold.

Comprehensive 10-Year Warranty for Peace of Mind

The MRCOOL Hyper Heat System is backed by a 10-year parts and labor warranty, ensuring long-term reliability.

  • No Registration Required – Labor warranty is automatically activated upon installation.
  • AHRI Certified – Meets industry standards, ensuring high-quality performance and efficiency.

Technical Specifications

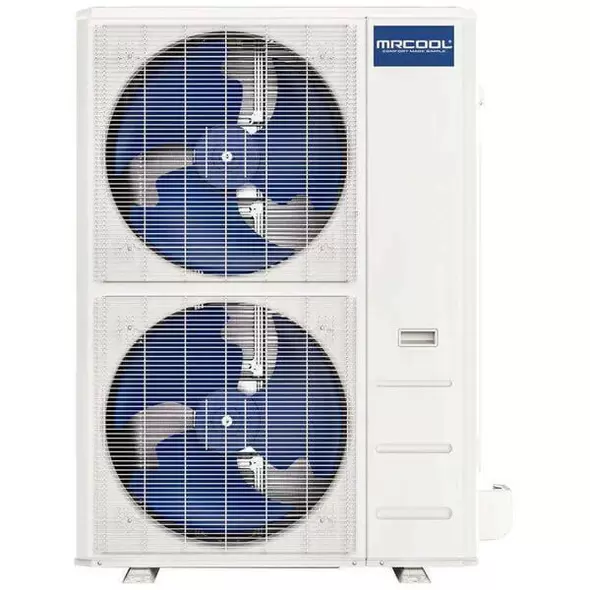

Condenser

  • Dimensions: 37.48"W x 16.14"D x 52.48"H
  • Weight: 220.24 lbs
  • Cooling Capacity: 37,000 BTU
  • Heating Capacity: 50,000 BTU
  • Electrical Requirements: 208-230V/60HZ/42 to 50A
  • Max Line Set Length: 213.25 ft
  • Refrigerant Type: R-410A (169.32 oz volume)
  • Noise Level: 64 dB

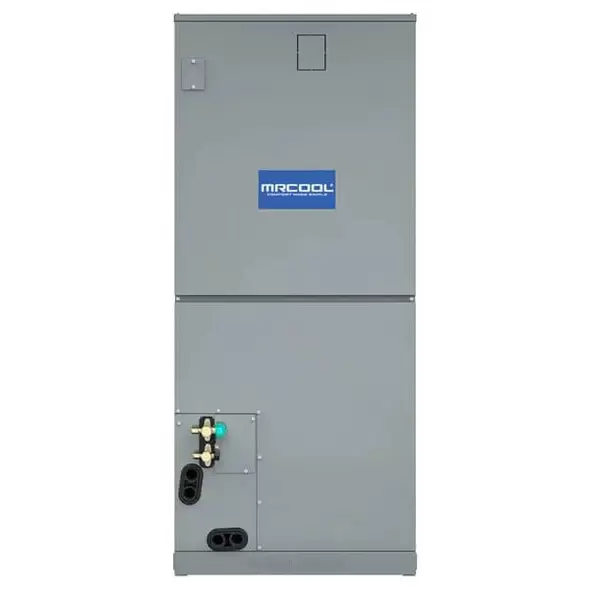

Air Handler

  • Dimensions: 21.02"W x 21.02"D x 49.02"H
  • Weight: 132.50 lbs
  • Airflow Configurations: Downflow, Upflow, Horizontal Left, Horizontal Right
  • Electrical Requirements: 208-230V/60HZ/7.5 to 15A
  • Noise Level: 43.5 to 47 dB

Operating Conditions

  • Cooling Mode Temperature Range: 5°F to 122°F
  • Heating Mode Temperature Range: -22°F to 75°F
  • Room Temperature Range: Cool: 61°F to 90°F | Heat: 32°F to 86°F | Dry: 50°F to 90°F

Additional Features

  • Modes: Cool, Heat, Dry, Auto, Fan
  • Includes: Remote & Wired Thermostat
  • Certificates: AHRI Certified
  • Warranty: 10 Years (Parts & Labor)

Final Words

The MRCOOL 48K BTU Hyper Heat Central Ducted System is a powerful, energy-efficient heating and cooling solution built for comfort, reliability, and ease of installation. Whether you need a high-performance HVAC upgrade or a durable, cost-effective climate control system, this unit offers exceptional efficiency and year-round comfort. With smart controls, flexible installation options, and a 10-year warranty, it is one of the best choices for residential heating and cooling.
