Mrcool Supplemental Add-On Emergency Heat Kit For HyperHeat Central Ducted Air Handler

In stock
0.00
(0 reviews) Write a review
CENTRALHK05
Request Quote
Chat Now
  • Emergency Backup Heating – Provides reliable warmth when the primary heat pump is inactive or struggling.
  • Seamless Compatibility – Designed exclusively for MRCOOL HyperHeat Central Ducted Air Handlers.
  • Quick Installation – Pre-wired and ready to install directly inside the air handler for fast setup.
  • Multiple Power Ratings – Available in 5kW, 8kW, 10kW, 15kW, and 20kW to match home heating needs.
  • Ideal for Cold Climates – Enhances heating performance in subfreezing temperatures for consistent warmth.
  • Compact and Durable – Built with high-quality materials to ensure long-lasting operation.
  • Optimized for Temporary Use – Provides short-term heating support during HVAC maintenance or failures.
  • Electrical Compatibility – Requires proper circuit capacity (check electrical setup before installation).
  • Wide Coverage Range – Heats areas from 1,400 to 2,800 sq. ft. based on selected kW capacity.

Tell us what you need

Description

The MRCOOL Supplemental Add-On Emergency Heat Kit is designed to provide consistent warmth when your primary heat pump system is inactive or struggling in extremely cold temperatures. As an electric heat source, this add-on is seamlessly integrated into the MRCOOL HyperHeat Central Ducted Air Handler, ensuring your home stays warm even in subfreezing conditions.

With multiple power rating options, this kit allows you to choose the right capacity based on your home’s heating needs and electrical setup. Whether used as an emergency backup or supplemental heating source, this heat kit delivers efficient and dependable performance when needed most.

Why Choose a Supplemental Heat Kit

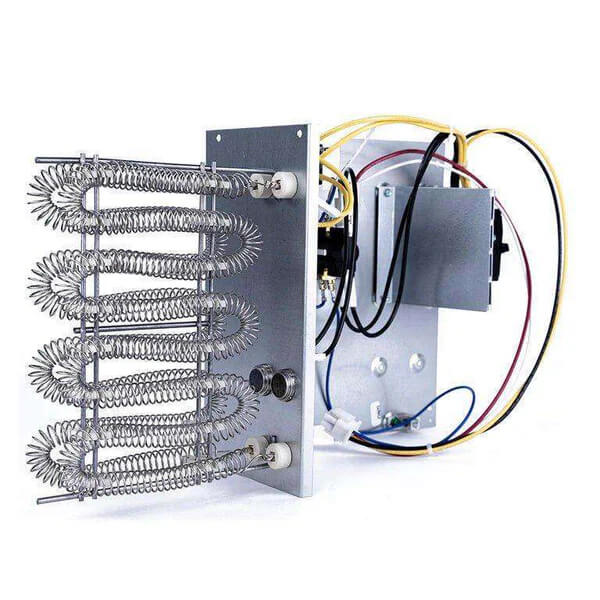

A heat kit, also known as an electric heat strip, acts as a secondary heating system to support your MRCOOL HyperHeat Central Ducted Air Handler. It functions as a direct electric heating element, warming air before distributing it through your home’s ductwork.

  • Provides backup heating when the heat pump is temporarily inoperative
  • Enhances cold-climate performance when outdoor temperatures drop to extreme lows
  • Delivers rapid heating when a quick temperature boost is required
  • Offers a short-term heating solution during heat pump maintenance or servicing

While not as energy-efficient as heat pumps, these emergency heat kits are designed for temporary use, ensuring comfort when conventional heating methods are unavailable.

Power Options to Suit Your Heating Needs

The MRCOOL HyperHeat Emergency Heat Kit is available in multiple power capacities, providing flexibility based on your home size and heating requirements. Each unit comes pre-wired for seamless installation inside the MRCOOL HyperHeat Central Ducted Air Handler.

  • 5 kW (Model CENTRALHK05) – Ideal for smaller spaces
  • 8 kW (Model CENTRALHK08) – Covers up to 1,600 sq. ft.
  • 10 kW (Model CENTRALHK10) – Covers up to 1,400 sq. ft.
  • 15 kW (Model CENTRALHK15) – Covers up to 2,200 sq. ft.
  • 20 kW (Model CENTRALHK20) – Covers up to 2,800 sq. ft.

Selecting the right kW rating ensures that your emergency heating system operates efficiently without overloading your home’s electrical system.

Seamless Compatibility and Quick Installation

The MRCOOL Emergency Heat Kit is exclusively designed for HyperHeat Central Ducted Air Handlers, ensuring a perfect fit and hassle-free installation.

  • Installs directly inside the air handler cabinet
  • Comes pre-wired for faster setup
  • Requires an appropriate electrical connection (check circuit capacity before purchase)
  • Works only with MRCOOL HyperHeat systems, ensuring optimal performance

Built for Long-Lasting Performance

This supplemental heating solution is built with durability and reliability in mind, ensuring uninterrupted operation when you need it most.

  • Crafted with high-quality materials to withstand extended use
  • Designed to deliver consistent heating performance in low-temperature environments
  • Reduces downtime and service disruptions by offering a reliable backup option

Technical Specifications

8kW Model

  • Heating Capacity: 25,001 - 30,000 BTU
  • Coverage Area: Up to 1,600 sq. ft.
  • Voltage Requirement: 208-230V/40-45A
  • Max Fuse Breaker: 40/45A
  • Min Circuit Ampacity: 37/42A
  • Product Dimensions: 21.06"W x 10.16"D x 8.03"H
  • Weight: 7.3 lbs

10kW Model

  • Heating Capacity: 30,001 - 35,000 BTU
  • Coverage Area: Up to 1,400 sq. ft.
  • Voltage Requirement: 208-230V/50-60A
  • Max Fuse Breaker: 50/60A
  • Min Circuit Ampacity: 46/53A
  • Product Dimensions: 21.06"W x 10.16"D x 8.03"H
  • Weight: 6.8 lbs

15kW Model

  • Heating Capacity: 50,001 - 55,000 BTU
  • Coverage Area: Up to 2,200 sq. ft.
  • Voltage Requirement: 208-230V/50-60A
  • Max Fuse Breaker: 25/30A
  • Min Circuit Ampacity: 23/27A
  • Product Dimensions: 21.06"W x 10.16"D x 8.03"H
  • Weight: 9 lbs

20kW Model

  • Heating Capacity: 65,001 - 70,000 BTU
  • Coverage Area: Up to 2,800 sq. ft.
  • Voltage Requirement: 208-230V/50-60A
  • Max Fuse Breaker: 50/60A
  • Min Circuit Ampacity: 46/53A
  • Product Dimensions: 21.06"W x 10.16"D x 8.03"H
  • Weight: 10.1 lbs

Final Words

The MRCOOL Supplemental Add-On Emergency Heat Kit is an essential backup solution for those living in cold climates or seeking reliable heating support during harsh winter months. Whether you need extra warmth for extreme conditions or a failsafe heating system, this pre-wired, easy-to-install heat kit ensures continuous comfort when your primary system is down. Choose MRCOOL for trusted performance, durability, and peace of mind in any weather condition.
