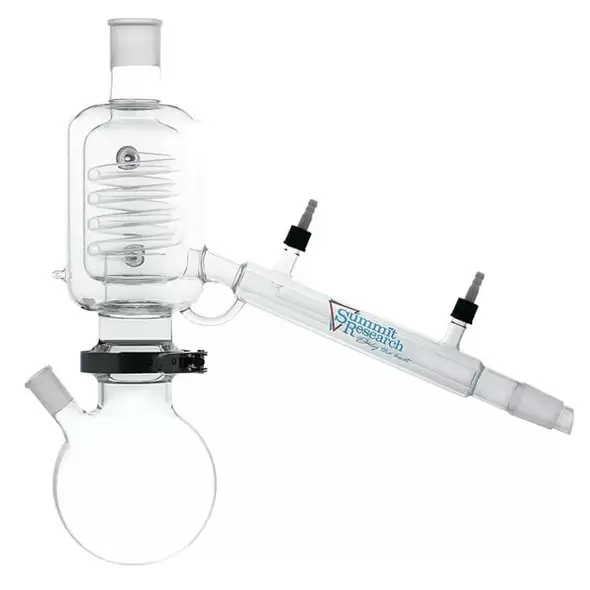

Short Path Distillation 8 Micro Head

The Short Path Distillation 8 Micro Head is part of Summit Research’s cutting-edge SPD-8 Series. Designed for precision temperature control, this 60 mm head integrates fraction collector technology with an advanced condenser coil, optimizing the efficiency and effectiveness of the distillation process. This micro head is specifically crafted for smaller-scale distillations, making it ideal for laboratories that need high accuracy with smaller material quantities. With its compact size and powerful performance, this head is the perfect solution for both research and production environments.

Optimized Temperature Control for Efficient Distillation

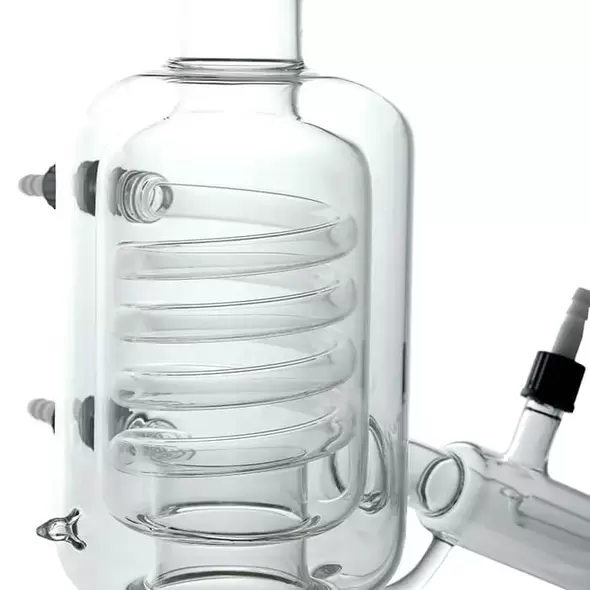

The SPD-8 Micro Head offers superior temperature modulation with its integrated condenser coil. By lowering the temperature, the coil acts like a magnet, pulling molecules toward the fraction collector and ensuring precise separation. The coil distributes lower temperatures directly on the surface of the fraction collector dish, enhancing the head’s overall efficiency. This feature allows for more accurate distillations, ensuring that only the desired fractions are collected, resulting in higher purity and yield.

Key Features for Enhanced Temperature Control:

• Condenser Coil: Maintains molecular flow dynamics by absorbing heat, preventing the heat from affecting the walls of the fraction collector.
• BTU Energy Removal: The coil efficiently removes heat before vapor enters the condenser arm, stabilizing vacuum jacket performance.
• Controlled Fraction Collection: The coil helps ensure that the system maintains exact temperatures, enabling users to discard unwanted fractions with precision.

Condenser Arm and Flow Management

The 60 mm head is designed to maintain precise temperatures within the condenser arm, preventing blow-by and ensuring a stable vacuum environment. By controlling the flow and temperature dynamics, the head enhances the distillation’s overall efficiency, making it easier to collect the desired fractions without overshooting flow rates.

• Prevents Overworking: Proper temperature management ensures that the system doesn't overwork itself, leading to smoother distillation processes.
• Drier Vacuum Environment: Maintains a dry vacuum in the condenser arm, which enhances the quality and purity of the distillation.

Included Components

The Short Path Distillation 8 Micro Head comes fully equipped with all necessary components to ensure a smooth and efficient distillation process:

• Head Key Well 45/50
• Stopper Well 45/50
• High Temp GL18s (4) – Designed for heat-resistant and high-vacuum applications.
• Flange Clamp 60 mm – Ensures secure and stable attachment.
• PTFE O-Ring 60 mm – Provides an airtight seal to maintain vacuum pressure.
• 2 Liter Boiling Flask – Comes included, with an upgrade option to a 5-liter flask available.

Durability and Premium Glass Construction

Summit Research uses only the highest quality Schott glass for the SPD-8 Micro Head, ensuring superior durability and reliability. The glass is thicker than industry standards, allowing it to handle the rigors of high-vacuum and high-temperature distillations. Manufactured in the USA, this premium glassware is built for longevity and efficient operation, making it a valuable addition to any lab setup.

Boiling Flask Upgrade Option

The SPD-8 Micro Head comes standard with a 2-liter boiling flask, but users can upgrade to a 5-liter flask if needed. This provides flexibility for labs that require larger capacity distillations, making this head suitable for various applications.

Safety Recommendations

Summit Research strongly advises that all glassware, including the SPD-8 Micro Head, be operated in a ventilated fume hood equipped with blast shields to ensure user safety. Summit’s glassware is built to exceed durability standards, but proper safety measures are critical for protecting laboratory personnel.

Summit is not responsible for equipment failures or material loss due to improper use. All distillation operations should take place in a licensed and legal laboratory, with safety as the number one priority.

For more information or to place an order, contact Summit Research at 831-226-2948 or via email. Orders typically ship within 1-3 days after processing unless otherwise specified.
