Short Path Distillation Head FC45

The Short Path Distillation Head FC45 series by Summit Research is a state-of-the-art distillation head designed for high-efficiency, precision distillation. The series includes three distinct models: FC45 Nano, FC45 Shorty, and FC45 Tall. Each model offers different features based on head height, speed, and selectivity, but all are built with Summit's patented technology and premium Schott glass for maximum performance, durability, and clarity. Below is a detailed breakdown of the FC45 series.

Short Path Distillation Head FC45 Nano

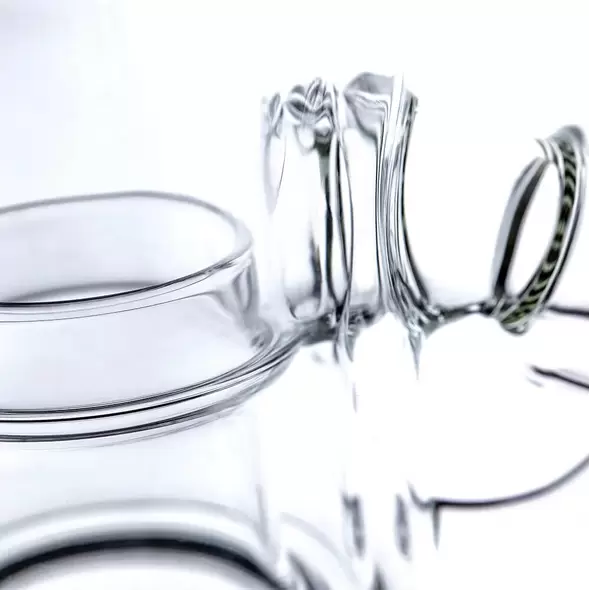

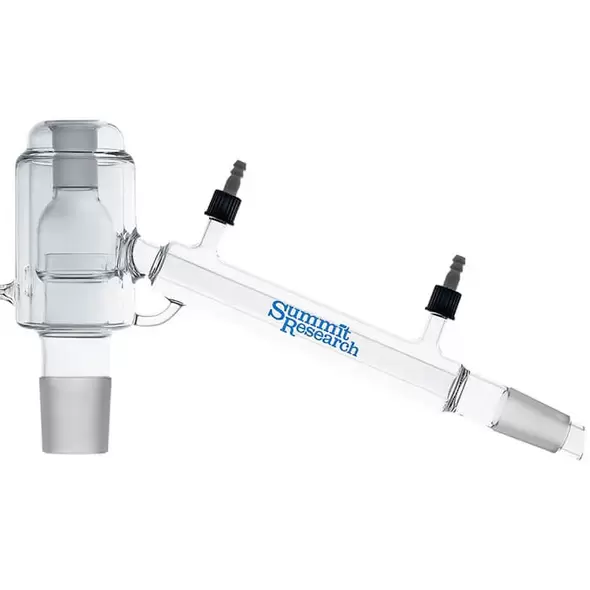

The Short Path Distillation Head FC45 Nano (previously known as SPD-6 FC45 Nano) is designed for distillations requiring minimal rejection of material, making it ideal for processes where every fraction matters. This model features a 45/50 main bore, a 29/42 discharge, and a 24/40 thermoport.

No Vigreux for Minimal Rejection

The FC45 Nano is designed without a vigreux column, which typically increases material rejection. This feature ensures that rejection is kept to a minimum, making it ideal for precision-focused applications. The model includes a specialized head key (now included in the package) to further maximize rejection control, making it even more efficient in specific distillation tasks.

Included Components

• Head Key 15 Band 24/40 – A precision tool for maximizing performance.
• Head Key 5 Band 24/40 – An additional tool for fine-tuning distillations.
• Well Stopper 24/40 – Ensures airtight sealing during distillation.
• High Temp GL14s – High-temperature resistant glass components to withstand intense conditions.

Efficiency and Performance

The FC45 Nano incorporates Summit Research’s patented distillation technology, which allows it to rival the speeds of wiped film distillation at a fraction of the cost. The design offers higher clarity, purity, and operational speed, making it highly efficient for short path distillation.

Short Path Distillation Head FC45 Shorty

The Short Path Distillation Head FC45 Shorty (formerly SPD-6 FC45 Shorty) model shares many features with the Nano but includes a vigreux column, which adds an element of material rejection. This makes the Shorty a versatile choice for operations that require some level of separation and rejection without compromising speed.

Key Features of the Shorty Model

• Vigreux Column for Rejection – This version includes a vigreux, which allows the operator to manage material rejection during distillation more effectively. The rejection process is more controlled, which is ideal for applications requiring selective separation.
• Included Components – Like the Nano, the Shorty comes with GL14s, head keys, and a well stopper.

Enhanced Efficiency

With the addition of the vigreux, the Shorty balances rejection control with operational speed. Like all FC45 heads, it incorporates Summit's fraction collector technology, providing high-speed, high-potency, low-temperature distillations with unparalleled consistency.

Short Path Distillation Head FC45 Tall

The Short Path Distillation Head FC45 Tall (previously SPD-6 FC45 Tall) is the largest model in the FC45 series. It is designed for maximum selectivity and precise separation of materials during distillation. This model has multiple rows of vigreux for higher rejection rates and slower speeds.

Maximized Selectivity with Vigreux

The Tall model is equipped with multiple rows of vigreux to maximize the selectivity of material rejection during the distillation process. This feature makes it ideal for applications where separation accuracy is more important than operational speed.

Key Features of the Tall Model

• Multiple Vigreux Rows – Provides high selectivity during distillation, allowing for more refined separation.
• Included Components – Like the other models, the Tall head includes GL14s, head keys, and a well stopper for high-temperature operations.

Optimized for Precision

The Tall head’s greater height and vigreux rows allow for more controlled separation, making it perfect for operations where precise fraction collection is required. Though slightly slower in operational speed, it offers unmatched purity and clarity in the final product.

Advanced Technology in All Models

Patented Fraction Collector Technology

Summit Research has integrated its patented fraction collector technology across the FC45 series. This technology offers operational parameters that rival wiped film distillation equipment at a fraction of the cost, providing users with superior clarity, purity, and speed in their distillation processes.

Variable Heights for Different Distillation Needs

The height differences between the Nano, Shorty, and Tall models impact their performance in terms of speed, selectivity, and operational temperature:

• Lower heads (like the Nano) offer faster speeds with less selectivity and lower temperatures.
• Taller heads (like the Tall) provide slower speeds but with higher temperatures and more selectivity.

Laminar Path Technology and Cold Trap Integration

Each model incorporates Summit’s laminar path technology and is compatible with inverted cup cold traps and hardpipe kits. These innovations enhance the overall efficiency, consistency, and clarity of distillations, ensuring smooth and reliable operations across all FC45 heads.

High-Quality Schott Glass and Durability

All FC45 models are crafted using premium Schott glass that exceeds industry standards in terms of thickness and durability. Summit Research takes pride in manufacturing its glassware in the USA, ensuring the quality, durability, and efficiency of each piece of equipment. The thicker glass construction provides added safety and resilience, ensuring reliable performance over extended periods of high-intensity use.

Safety and Usage Recommendations

Summit Research highly recommends operating all FC45 models within a ventilated fume hood equipped with sufficient blast shields to prevent injury from potential glass fatigue. Though Summit builds its glassware to the highest standards, improper use or fatigue can result in glass failure, potentially leading to equipment damage, material loss, or environmental harm.

Summit is not liable for improper use or damage caused by glassware failure. Users are responsible for ensuring that they operate in a licensed, legal, and safe laboratory environment, where safety is the top priority.

Recommendation

The Short Path Distillation Head FC45 series is a top-tier solution for laboratories seeking high-efficiency, high-clarity distillation heads. Whether you choose the Nano for minimal rejection, the Shorty for balanced rejection and speed, or the Tall for maximum selectivity, Summit Research delivers unparalleled performance, safety, and durability in each of its products. Made with premium Schott glass and backed by innovative distillation technology, the FC45 series sets a new standard in the field of distillation equipment.
