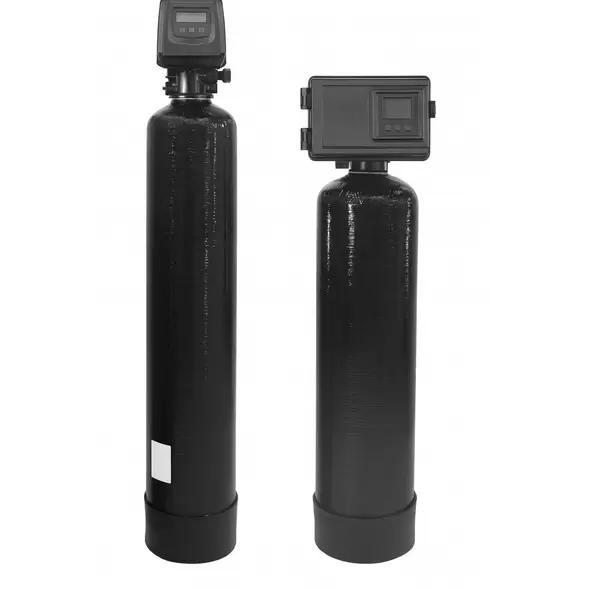

Air Injection Oxidizer Filters

Good Water Warehouse Water Treatment Systems AIO Oxidizer Filters system from air injected systems use oxygen from the air to increase the water’s ability to hold iron, manganese, and hydrogen sulfide in solution and removes these contaminants. This one-tank system utilizes an air draw cycle to create a compressed air pocket in the top of the media bed that triggers the oxidation of the contaminates throughout the entire water process and provides rapid filtration without requirements of backwashing chemicals, or external tanks.

Appropriate for residential, light commercial, or rural well water use, these systems offer a fast, easy, and maintenance-free way to eliminate taste, odor, and clarity problems.

How AIO Technology Works

Air Pocket Oxidation

It means all waste water flows upward through the filter during a regeneration cycle (see below) and air is drawn into the top of the tank resulting in an air chamber above the media. This results in water that comes in contact with iron, manganese and/or hydrogen sulphide found in the incoming water, where it converts them into solid particles that can be trapped in the media bed.

Four-Cycle Operation

There is a 4 stage cycle on all models, designed to ensure maximum media efficiency:

• Backwash: Removes the particulates clogged in the media bed
• Air Draw: Creates the Aire Pocket needed for oxidation
• Fast Rinse: Eliminates oxidized materials from the tank
• Service: Normal filtration operation

This self-repetitive scheme maintains the system completely self-sustained and highly efficient.

Options for Control Valve Types and SXT Timers

5800SXT and 2510SXT Valve Models

AIO Filters: The Air Injection Oxidizer Filters (AIO) Comes with either a Fleck 5800SXT or 2510SXT control valve. The latter are proven “everytime” metered digital valves with programmable cycles and 12V operation all with a backlit display, easy downflow regeneration, raise/lower buttons for the valve are separate from the programming buttons, and both provide simple operation and years of reliable service.

• 5800SXT: Updated 21st century digital control head with superior top mount air injection.
• 2510SXT: High flow commercial grade tank with side mounted 2510SXT air-induction injector

All control valves offer an automatic air draw and regeneration cycle that minimizes user intervention.

Media Options for Targeted Filtration

BIRM Media - Iron and Manganese Removal from Water 2012-09-04 You can trust that your Birm filter will be the solution you require, either in application at home, work or anywhere else.

BIRM is an efficient and economical media for the reduction of dissolved iron and manganese compounds from raw water supplies. It doesn’t need canisters, delicate chemicals or dirty regenerants and works in harmony with nature using the earth friendly, reusable component of oxygen naturally

CARBON: Catalytic – HCla Carbon (H2S and organics)

Catalytic Carbon is excellent for removing hydrogen sulfide (rotten egg smell), chlorine by-products and organic materials. This product’s improved oxidizing power not only puts more of the available active ingredient to use in destroying contaminants, it’s also more effective in water that contains higher levels of sulfur, and can be used in chlorinated water.

Centaur Catalytic Carbon – Better than Most

Centaur carbon is a media that doesn't just absorb, it also catalyzes. It is specially engineered to eliminate hydrogen sulfide, VOCs, and taste or odor-making compounds with ease and sets the high mark for filtration quality in the most delicate of environments.

Available Models and Capacities

• Fleck 5800SXT-AIO Models
•  BIRM and Carbon media
•  Sizes: 1.0, 1.5, 2.0 CUFT
•  Tank Sizes: 9x48 to 12x52
•  Great for residential and light commercial use

Fleck 2510SXT-AIO Models

•  BIRM and Carbon media
•  Same CUFT and tank sizes as first towlines above
•  Constructed of dense commercial-grade polywood

All models are manufactured with the correct type of media, resin tank (RT) and media amount installed to provide the best possible performance for your water condition.

Final Words

Our Air Injection Oxidizer Filters (AIO) provide a chemical free technology for attacking iron, manganese, and hydrogen sulfide in one simple system. With automated controls, flexible programming and high-quality media, these systems offer long-lasting water filtration that is quick and easy to maintain. Select from BIRM, Catalytic Carbon or Centaur media to best suit the water that you require- Clean, fresh, odor-free water at your service
