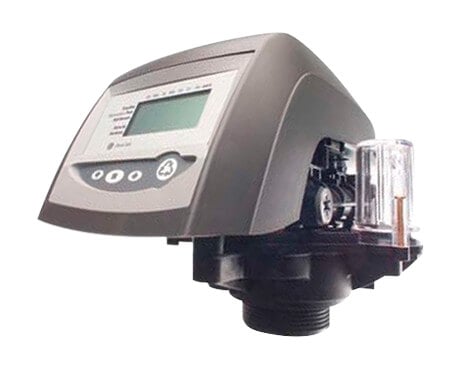

Autotrol 255

The Good Water Warehouse Autotrol 255 is a quality, precision built control valve that works for your home, or light commercial water treatment system! Its proven, reliable design offers durable performance through advanced cycle testing; and robust materials with a lead-free design; including integrated turbine meter which attaches to the main housing of the control valve for easy removal during service.

With rugged, reliable construction, the Autotrol 255 was designed to fit the rigorous requirements of today’s water conditioning with the greatest of ease and efficiency!

Key Design Features and Benefits

Durability and Material Strength

Featuring a Fiber reinforced Polymer Valve body, the Autotrol 255 is powerful, easy to use, and able to withstand the test of time thanks to it’s unrivaled durability against UV degradation and Corrosion.

The reliable, time-tested duraflow flapper offers friction-free sealing, extending service life.

Advanced Control Mechanism

Features an optical sensor for exact cycle positioning for reliable treatment results.

Features a dual backwash function to alleviate hardness leakage and maximize backwash which improves the efficiency of the resin bed.

Provides complete control over 5-cycle or 8-cycle operation to meet the requirements for both softeners and filters.

Flow and Tank Compatibility

Features a service flow rate of 15.5 GPM and a backwash of 6 GPM.

Rings fit softener tanks up to 14 inch and filter tanks up to 10 inch in diameter.

Effortlessly integrates into single or multi-tank systems.

Power and Memory Resilience

Comes with an in-built super capacitor to help keep time-of-day settings in case of power stops.

Systems: Programming is stored in memory which is retained even if the power is turned off.

History monitoring allows valve performance data to be analysed over time for maintenance and diagnostic purposes.

Options for Control Valve and System Flexibility

Specifications: The Autotrol 255 can be configured to fit most systems and application needs:

Softener or Filter Valve Versions

Select either filter or softener models based on the treatment applications.

Bypass and Plumbing Connections

With fiber-reinforced polymer bypass valve. NPT, BSP, or sweat connections.

Advanced Controls and Timers

Choose between standard and premium controllers to suit your water treatment requirements.

• 460TC - Basic clock control with 3 settings modes
• 460i - Metered control with simplified 3-setting programming
• 740 – Basic electronic time clock option
• 760 - Metered control – electronic, economic
• 742 Fully-Programmable Time Clock Control with Adjustable Salt-Usage 3.0 out of 5 stars 4 $42.
• 762 -Control valves offer 762 -Fully programmable and metered for maximum quality and efficiency.
• 764 – Professional metered control for twin systems

Optional Accessories

Additional installation options include auxiliary switch kits and wall-mount timer kits.

Final Words

The Autotrol 255 is a robust, flexible and reliable control valve for a range of water treatment systems. Constructed for performance and durability, it has a reinforced polymer valve, and an LCD display that's easy to read, a intuitive interface, and an electronic controller that remembers your settings. It is a perfect choice for any softening or filtration application, simple or complex. Weather you are upgrading an existing system, or you just want a new one, the Autotrol 255 is the system professionals have tapped for years.
