Bypass & Yoke For 5600 - 5800 - 2510 - 9000 - 9100

The Bypass & Yoke 5600 / 5800 / 2510 / 9000 / 9100 Bypass & Yoke a critical component of any water softening system that uses the Fleck Control Valves. Long lasting, high performance bypass valves and yoke fittings are both available in models compatible with all of the Fleck valve series to provide flexibility in your system setups, easy servicing, and a secure, non-corrosive system connection. Available in stainless steel, plastic or cast-machined finishes, these parts accommodate different installs and durability needs.

Designed for Compatibility and Performance

These bypass valves and yokes are designed for metered and 5600 style Fleck valve bodies.

• Fleck 5600
• Fleck 5800
• Fleck 2510
• Fleck 9000
• Fleck 9100

Whether for adding onto an existing unit or maintaining an entire fleet of systems, these Subcomponents are guaranteed to have the same air of interchangeability and service life.

Available Components and Sizes

Every section number addresses specific requirement in connection:

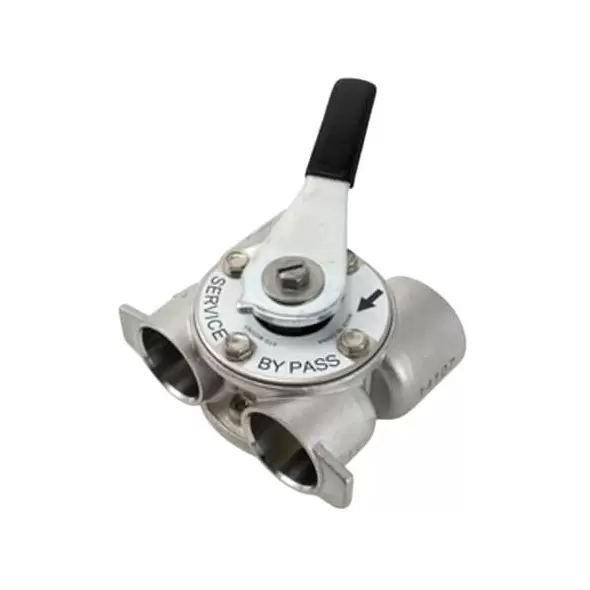

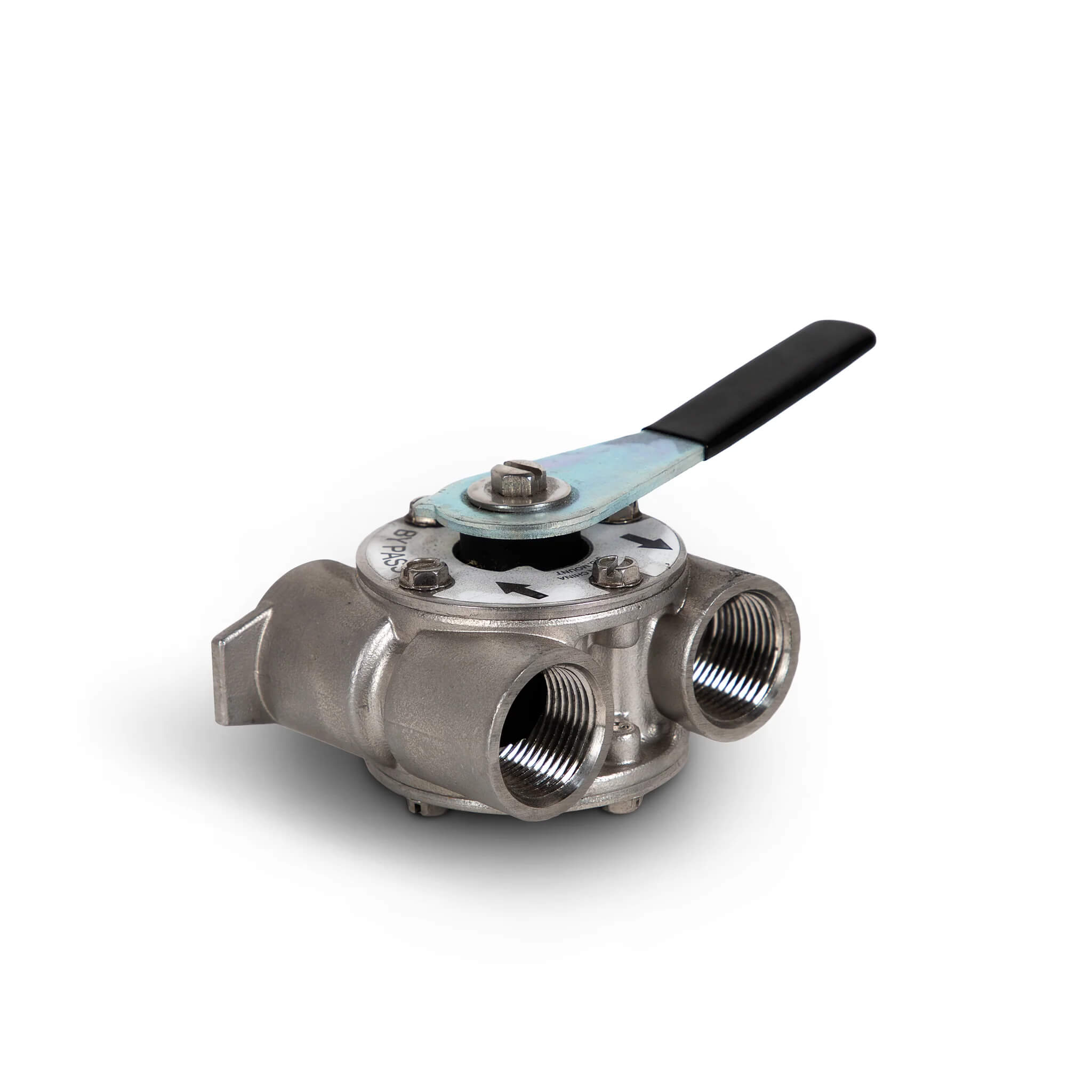

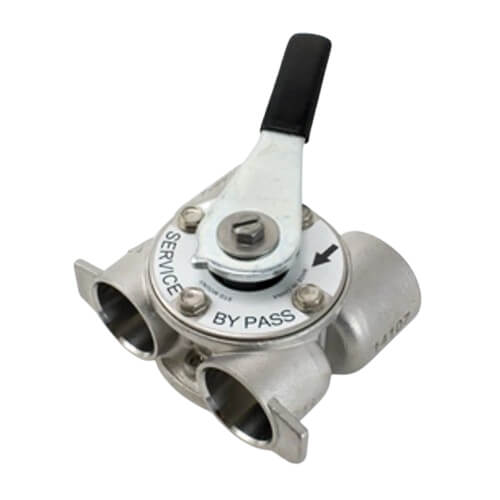

• 60040SS: ¾" NPT Stainless Steel Bypass Valve
• 60041SS: 1 NPT Stainless Steel Bypass Valve

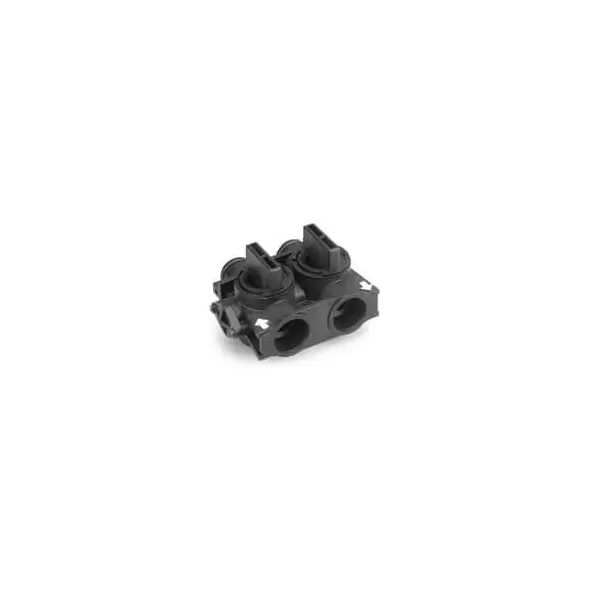

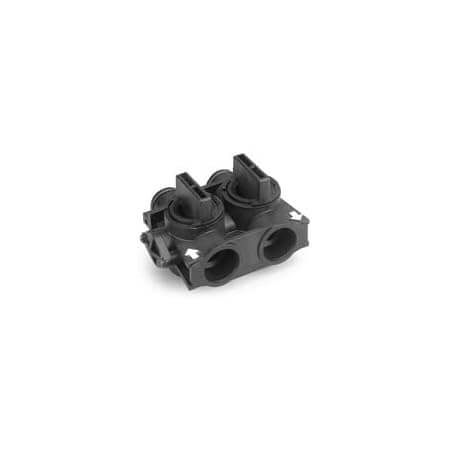

• 60049: PLASTIC BYPASS VALVE (Yoke Required)

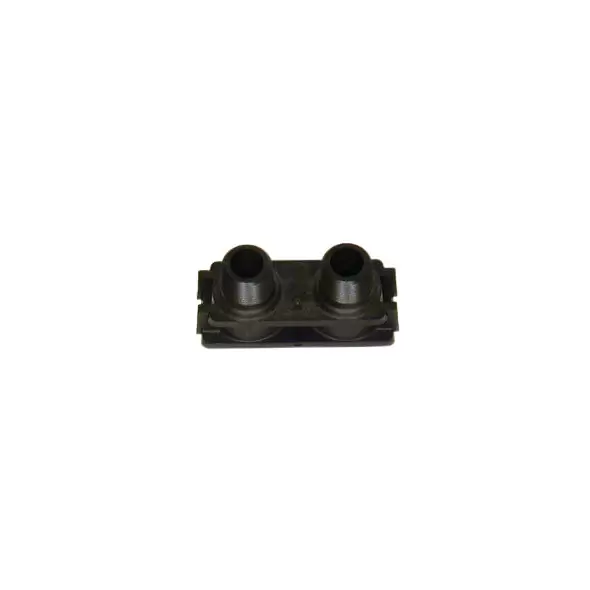

• 18706: 1" MPT Plastic Yoke
• 13708-40: 1" Sweat Yoke Assembly
• 18706-02: ¾" MPT Plastic Yoke
• 41027-01: ¾" NPT Cast-Machined Stainless Yoke
• 61700: QCS Yoke Assembly - ¾” C-Quick Connector Style (fits 2510/5600/5800/9100)

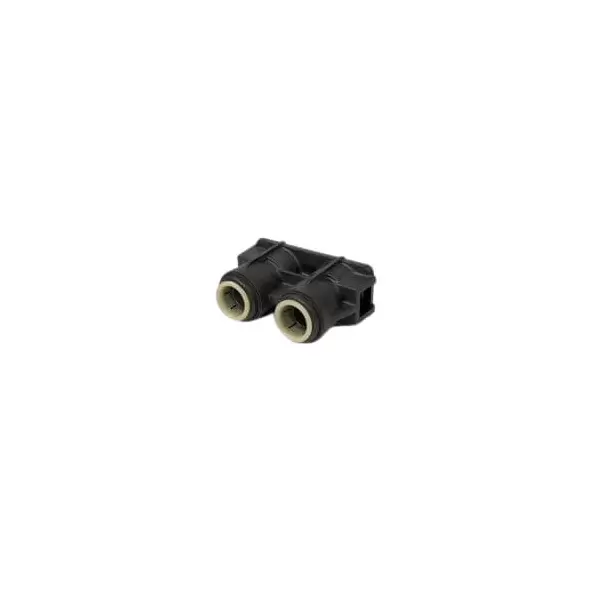

• 61694: 1" CTS Quick Connect Yoke Assembly (for use with 2510/5600/5800/9100)

All of these choices provide both the economy and precision fit for all residential and light commercial water treatment systems.

Material Quality and Durability

Each bypass and yoke part is made to withstand corrosion, pressure fatigue, and prolonged water exposure. The Stainless Steel version is the ultimate in performance and is the best choice for high stress and/or the most corrosive systems. Plastic choices are a low cost option for light duty use and are corrosion resistant. Cast and machined finishes offer strength and simplicity in installation.

Installation Versatility and System Benefits

Bypass valves permit our customer to bypass water around the control valve, providing for water service without interruption to the supply of water. Valve-to-tank connections are reinforced with yoke assemblies to provide added system stability and flow, with minimal resistance.

System-wide benefits include:

• Fast connection to plumbing lines
• Efficient service and regeneration cycles
• Reduced installation complexity
• Minimal flow restriction

The quick-connect (CTS QC) system is ideal for new or retrofit construction installs and are easy to use; it requires no tools and no solvents.

Tiered Pricing Options

For smaller installations and larger orders the components are available in quantity pricing:

• 60040SS: $52.87(1+), 45.32(10+), 43.05(24+), 41.54(48+)
• 60041SS: $55.79 (1+); $47.82 (10+); $45.43 (24+); $43.84 (48+)
• 60049: $27.04 (1+), $23.18 (10+), $ 22.02 (24+), $21.25 (48+)
• 18706/18706-02: $7.64 (1+); $6.55 (10+); $6.22 (24+); $6.01 (48+)
• 13708-40: (1+)$59.05, (10+) $50.61, (24+) $48.08, (48+) $46.40
• 41027-01: $24.19 (1+ $20.73 (10+ $19.70 (24+ $19.01 (48+)
• 61700: $34.60 (1+), $29.66 (10+), $28.17 (24+), $27.19 (48+)
• 61694: $26.37 (1+); $22.60 (10+); $21.47 (24+); $20.72 (48+)

Even system integrators and service professionals can benefit from these pricing tiers.

Final Words

The 5600 / 5800 / 2510 / 9000 / 9100 Bypass & Yoke provide key connection, service, and performance benefits for Fleck water treatment systems. From the beefy stainless 〞steel bypass valves to the 〞flexible quick-connect yoke assemblies, all components were crafted for ease of use, durability, and ease of service. Whether you’re running one softener or an army of them, this series provides everything you need, including optimized water flow, minimal downtime, and dependable flow rates. Rely on these fittings for smart, long-term water solutions.
