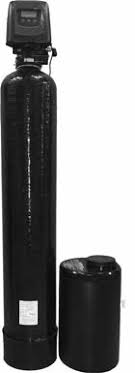

Greensand Filters - With Kmno4 Feeder

Good Water Warehouses' Greensand Plus Filters are an excellent system for removing multiple waterborne impurities such as iron, manganese, hydrogen sulfide, arsenic and radium. Advanced greensand filtration media coupled with an oxidation chemical for highest levels of iron reduction, perfect for well and problem water applications must be regenerated in a backwash and that it comes with manual control.

Featuring reliable Fleck 5800SXT, 2510CC, or 2510SXT control valves, the Greensand Plus Filters are designed as filter-only units to provide a practical solution to meet your reverse osmosis pretreatment needs for households, farms, and light commercial applications where feed water is more highly contaminated or contains higher concentrations of ferric/ferrous iron.

How Greensand Plus Media Works

Oxidation and Filtration

Greensand Plus media oxidizes the metals and sulfide compounds that are dissolved in the water passing through it, causing the metals and sulfides to digibve and become solid particles that are filtered out in the water. This is particularly useful for water with:

Iron staining

• Rotten egg odor (hydrogen sulfide)
• Heavy metal (arsenic and radium) contamination
• Broad pH Range Efficiency

One of the big benefits of Greensand Plus is that it performs equally as well in situations in which the pH is low versus high, so you don't have to adjust your pH before installation.

Chemical Regeneration with Permanganate

Batch Potassium Permanganate Regeneration

These systems incorporate a batch regeneration process using potassium permanganate (KMnO₄) to re-energize the Greensand Plus media and maintain filtration through the system. A specially designed 10"x16" feeder tank supplied with each system, injects the oxidant during the regeneration cycle.

5-Cycle Control Operation

Every machine features a 5-stage cycle to guarantee that the entire system is regenerated and able to operate dependably:

• Backwash: Expels trapped particles
• Chemical Draw: Pulls permanganate solution into the media
• Fast Rinse: Removes residual oxidant & solids
• Refill - Gets chemical tank ready for next cycle
• Service: Regular filtration mode

Intelligent Control Valve Options

Fleck 5800SXT

Simple to use and program, the 5800SXT valve also provides a digital metered based on a backlit LCD display. It provides control of cycle timing, flow rates, and regeneration schedules with accuracy.

Fleck 2510CC (120V)

A 2510CC is ideal for batch systems and known for reliability with the power to perform continuous cycles for even the largest demands. It operates off a regular 120V cable.

Fleck 2510SXT

This Digital Control Valve has the same metering capabilities as the 5800SXT, but with a heavy duty construction for less than ideal conditions. That is it is a mix of simplicity and advanced automation.

System Configurations and Sizes

Available Resin Capacities:

• 1.0 CUFT – RT9x48 tank
• 1.5 CUFT – RT10x54 tank
• 2.0 CUFT – RT12x52 tank

Available Valves:

• Fleck 5800SXT
• Fleck 2510CC (120V)
• Fleck 2510SXT

Includes:

• Greensand Plus Resin media tank
• 10"x16" permanganate feeder tank
• Electronically or mechanically controlled control head (depending on the model)

Final Words

The GreensandPlus Filters are ideal for any one dealing with Iron staining, Iron bacteria, sulfur odor, and traces of heavy metals. Featuring smart controls, thick filtration media and increased flow, these high performance pressure-side cleaners maximize energy use with misting jet for great cleaner coverage, even when water circulation is reduced. An 'Easy-Load' regeneration system uses potassium permanganate to regenerate the filter, requiring little user intervention for peak performance.
