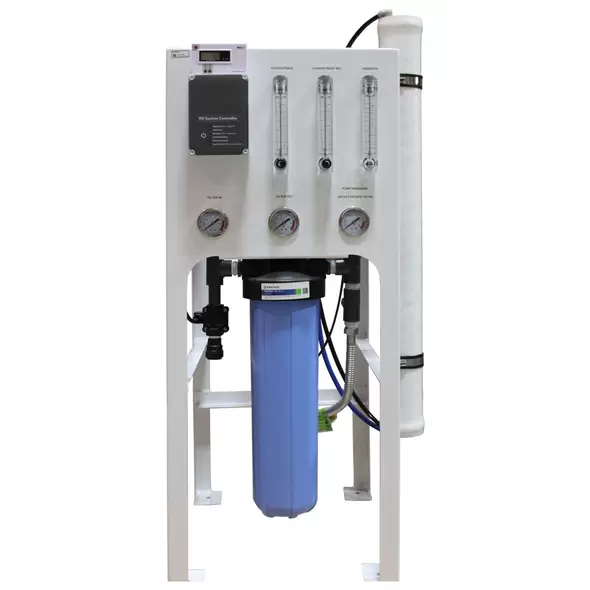

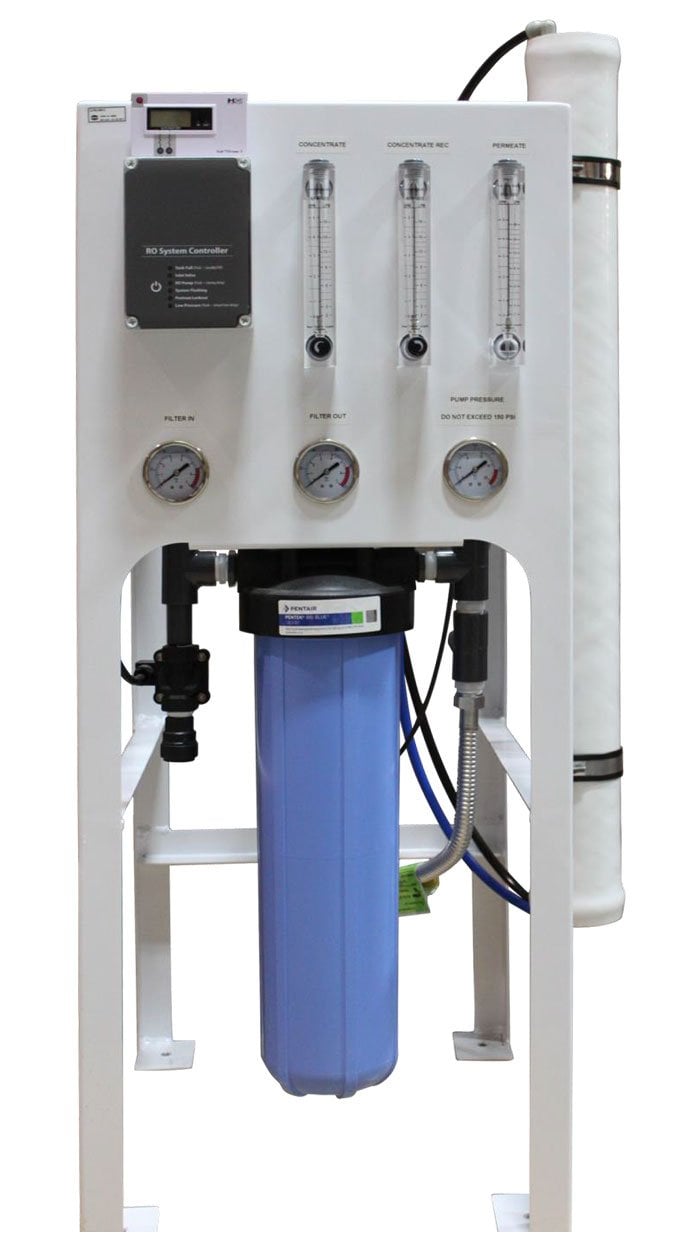

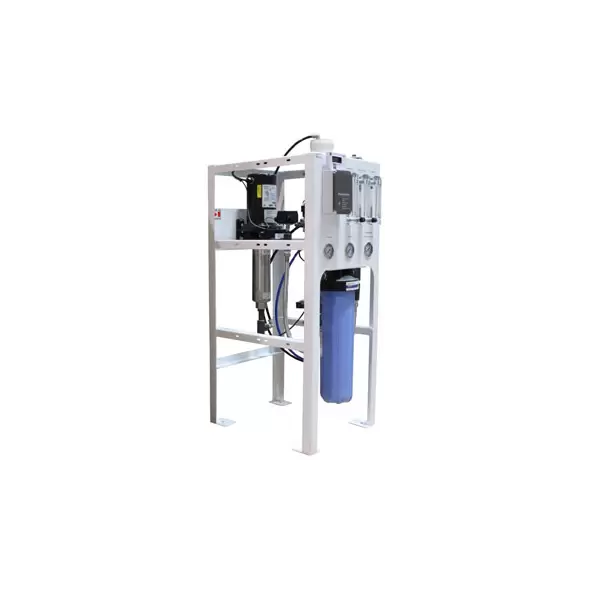

Pro Line Ultra Series - Commercial RO

The Pro Line Ultra Series - Commercial RO is an advanced, highly efficient water purification system that combines ultra-low energy reverse osmosis (RO) membranes with high quality, strategically engineered components to produce RO water with less energy, less water and less hassle. Offered in 2,600 GPD and 5,200 GPD models, in both a Basic and Deluxe versions, this series is designed to meet the needs of large commercial and industrial applications that require effective, efficient and expandable water treatment solutions.

These systems are designed for Feed waters of less than 2000 ppm total inorganic products (TDS). Whether it be for food processing, beverage production, lab use, horticulture, or commercial greenhouse use, the Pro Line Ultra Series will help to maximize your energy$ savings and minimize your downtime with an extremely rugged and smart design.

Filtration Core and Flow System

VEOLIA AK-90LE Low Energy Element

Featuring VEOLIA (AK-90LE) ultra low energy membrane elements, that provide outstanding rejection at an operating pressure that is significantly lower than regular RO elements. This significantly lowers energy consumption and provides for high rejection of dissolved salts, organics and damaging contaminants such as arsenic, arsenate, Radium, selenate, and other heavy metals.

Membrane Housing - (Stainless Steel Film & FRP Film)

The Basic devices are equipped with stainless steel membrane housings to guarantee a long lifetime and resistance against corrosion and pressure load. The Deluxe housings are by Codeline fiberglass membranes, which are lightweight but have high-pressure and chemical resistance properties to last longer and reduce maintenance.

Pumping System and Pressure Monitoring

Webtrol Stainless Steel Multi-Stage Pump

At the heart of the Pro Line Ultra Series is the Webtrol stainless steel multi-stage pump producing reliable water pressure and flow. The multi-staged structure provides the most comprehensive purification on the market, and ensures optimum rather than mediocre filtration through all stages, with the water being subjected to each stage for sufficient time prior to passing through.

Motor Thermal Overload Protection

Protect the pump motor from overheating during prolonged use with the cool running thermal overload protection built into the system, which will automatically cut out the power supply once temperatures rise above safe operating levels. This prolongs the life of the motor and eliminates downtime.

Pressure and Flow Monitoring Gauges

The system consists of multiple pressure monitoring instruments:

• Pump operating pressure ranges gauge internal system pressure for easy troubleshooting.
• Pre-filter inlet and outlet pressure gauges signal when filters become clogged or efficiency declines.
• Low-pressure switch is designed to interrupt the pump if inlet pressure is too low, preserving both the membrane and motor.

Moreover, every model comes with a permeate flow meter, concentrate flow meter with an adjustable needle valve and a recycle flow meter with an adjustable needle valve, which are essential for system balance and performance fine-tuning.

Pre-Filtration and Water Handling Components

5 Micron Sediment Filter Cartridge

Each one has a 5-micron sediment filter cartridge- the first line of defense against things like sand, rust, and particles. This results in a clean feedwater fed into the membrane system, which maintains its performance and life.

20” Pentek Big Blue Filter Housing

This Pentek 20” Big Blue filter housing allows for the use of larger filters for increased flow rates and extended filter life. Its robust design endures the feedwater high pressure water environment, and lower surface area minimized pressure drop and ensures high efficiencies.

Product Water Check Valve and Pretreatment Shutoff

The product water check valve prevents pure water from flowing back into the system when the pump is not on. A pretreatment lockout shuts down the RO system if pretreatment equipment malfunctions to protect the membrane from damage by untreated feedwater.

Deluxe Model Enhancements

Auto-Flush Solenoid Valve and Program for the System

Deluxe units include an auto-flush solenoid to periodically rinse the membrane to dislodge silt and scale to help maintain peak performance and prolong membrane life. Sophisticated system programming options enable users to refine flushing schedules and water use to improve efficiency.

Dual Probe TDS Meter

A dual-probe TDS meter, built-in to Deluxe models, offers real time monitoring of feedwater and permeate total dissolved solids. This enables users to monitor system performance and the quality of water instantly, to comply with process or product specications.

Powder-Coated Aluminum Frame

Basic models use an industrial steel construction and surface, but with a Deluxe model, a powder-coated aluminum frame is used for corrosion resistance and its light weight. This has only added to the long term durability of the piece, while not sacrificing looks or tactility.

Final Words

The Pro Line Ultra Series - Commercial RO is engineered for users that demand high water purification performance with power savings and intelligent control. We offer 2 flow rates and Basic and Deluxe options depending on the size of your business.

Every model includes a multi-stage pump, premium membrane elements, and electronic flow meters to maintain high purity levels of product water. Featuring a full complement of automatic protections, simple maintenance and expandable options, the Pro Line Ultra Series will enhance virtually any business that appreciates pure water and low-cost operation.
