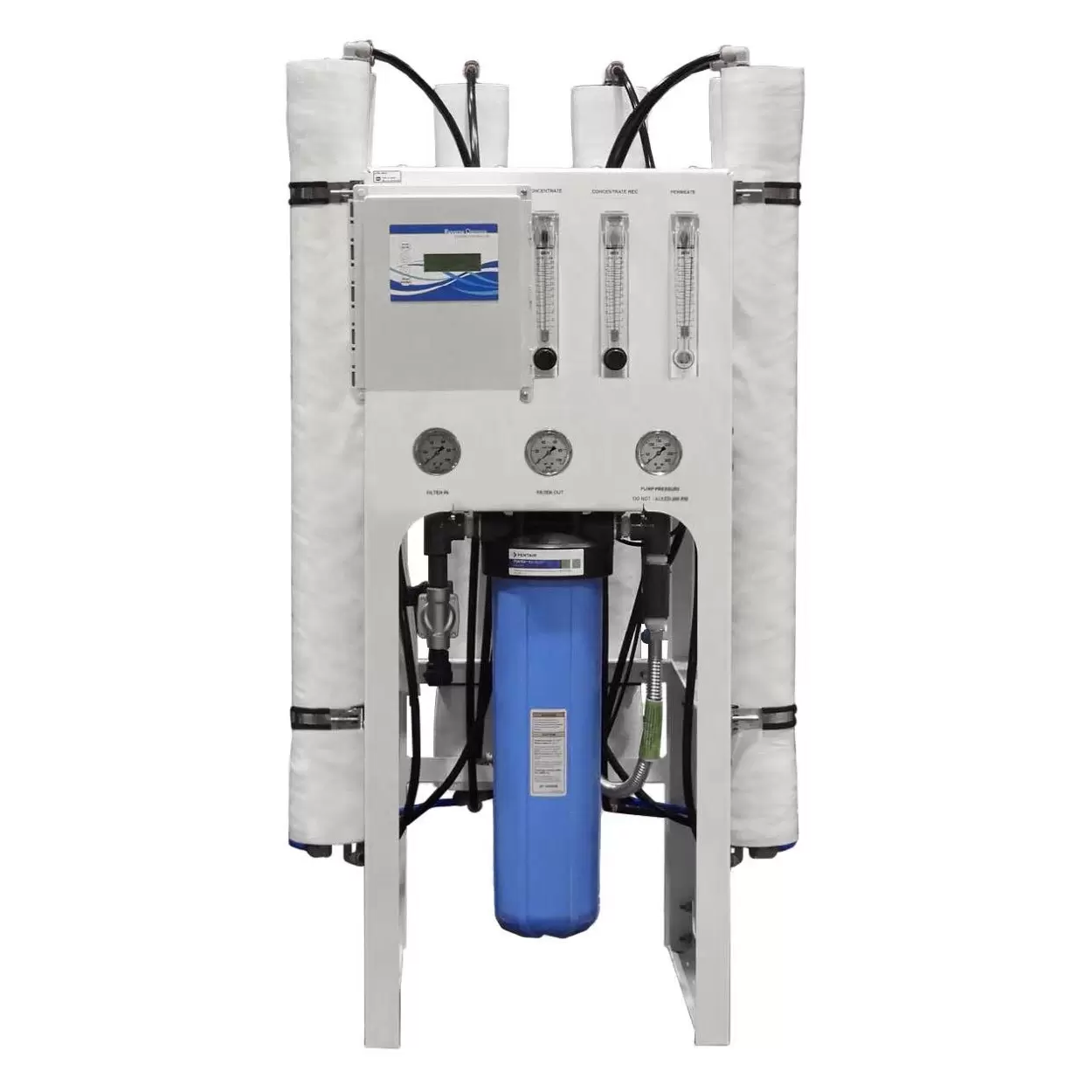

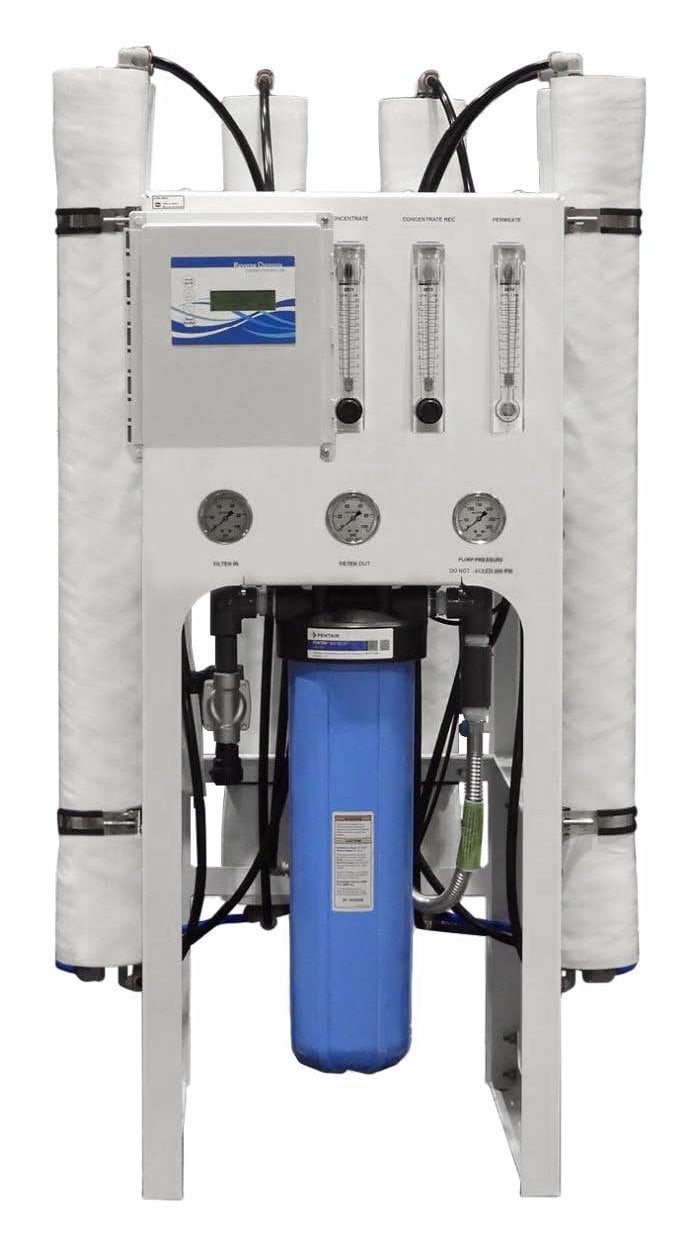

Pro Line Ultra Series - Commercial RO - Deluxe

The Pro Line Ultra Series - Commercial RO – Deluxe is the supreme culmination of state-of-the-art water purification, designed specifically for commercial and light industrial users who seek the best performance, greatest durability, and smartest control system. Capable of filtering 0 to 2,600 or 0 to 5,200 gallons of water per day with very low energy consumption, this professional-grade reverse osmosis system is a premium upgrade to any water treatment system.

Whether for farming, beverage production, cleanroom use or for the production of utility water throughout your facility, the Deluxe generates low TDS water with highly efficient membranes, intelligent automation and a resilient frame. This line is the best choice for RO applications that being fed water up to 2000 ppm TDS that require precision monitoring, fail safes, and a ‘fixed’ water recovery rate.

Structural Frame and Membrane Housing

Powder-Coated Aluminum Frame

The powder-coated aluminum structure is the cornerstone for the system, providing excellent corrosion resistance and long lasting strength while reducing its overall weight. This rugged casing not only protects internal components from damage, but also makes it easier to move, install and maintain the system, even in a humid or damp environment.

Codeline Fiberglass Membrane Housings

Codeline Fiberglass Membrane Housings Our Deluxe Series are Codeline fiberglass pressure vessels raised on a frame with all the benefits of a traditional steel vessel design, also providing lightweight, strength and high chemical resistance. These enclosures allow for high pressure feed water applications and protect the membrane from mechanical stresses and erosion.

Energy-Efficient Core Filtration

GE AK-90LE Ultra Low Energy Membrane Elements in Home & Kitchen

The system includes GE AK-90LE low energy reverse osmosis membranes, which provide high contaminant removal at lower operating pressures, to greatly reduce energy consumption. These membranes eliminate dissolved salts, minerals, organics and other impurities, while lowering total energy consumption—improving the system’s economic payback for long-term use.

5 Micron Sediment Filter Cartridge

Comes with a 5-micron sediment filter cartridge, which first removes a sediment, such as sand, rust and silt. This is a pre-filtering process that prevents the membrane from premature clogging and erosive materials.

Big Blue Water Filter Housing 20" by Pentek

For high-volume filtration, the system uses a Pentek 20” Big Blue filter housing – a commercial series part that can be fitted with large sediment or carbon block cartridges. This housing optimizes filtration by minimizing pressure drop and prolonging service intervals.

Intelligent Control and System Monitoring

ROC 5 Controller with Conductivity Probe

The system is backed by an ROC 5 controller that provides programmable operations, auto-flushing, and data feedback. This controller is paired with a conductivity probe that measures the TDS, (Total Dissolved Solids).

Auto-Flush Solenoid Valve and Multiple Programming

Automatic rinsing of the membrane is provided by the built-in auto-flush solenoid valve to improve membrane life and efficiency. A range of programmable options enables users to set the frequency and duration of the flush operation, optimizing the membrane performance and increasing the life of the system.

Dual Probe TDS Meter

Both the feed water and permeate TDS is continuously monitored with the dual probe TDS meter. This allows the operators to see the purification performance at a glance, which means a faster reaction to membrane degradation or imbalance in the system.

Flow Gauges and Pressure Indicators

Triple Adjustable Flow Meters

The Deluxe system includes:

• A permeate flow meter allows to monitor the quantity of purified water produced.
• A reject needle valve to control concentrate flow is included with this compact flow meter.
• A variable needle valve that allows user to fine tune recycling rates.

These flow meters provide a means of fine tuning system outputs according to variations in feedwater characteristics or process demand.

Pressure Monitoring and Safety

A pressure control software suite, comprising:

• Pump operation pressure gauge to keep an eye on system pressure in use.
• Pre-filter IN/ OUT pressure gauges for blockage and saturation indication.
• Low-pressure switch that stops functioning when gas inlet pressure is unsafe.

These protections combine to protect your system and equipment from damage during pressure surges.

System Protection and Output Interfaces

Motor Thermal Overload Protection

The motor also has thermal overload protection to minimize overheating, the motor will cut off power when over heated. This design makes system longevity possible, even if used continuously.

Pretreatment Lockout

The pretreatment lockout feature stops RO operation when upstream pretreatment does not perform. This is to protect the membrane from undissolved feedwater and from the product water quality deterioration.

Product Water Tank Level Connection and Powered Relay Output

It features a tank level connection for a 3rd party water storage tank (control hardware not included). A relay output with a power supply function also allows secondary equipment or annunciators to be activated depending on the operating conditions.

Final Words

The Pro Line Ultra Series - Commercial RO – Deluxe is a full water purification system for the professional who needs great performance, reliability and the feature of automotion. From the low energy GE membrane to the precision flow metres and the smart ROC 5 controller, each unit is selected for its long term durability, efficiency and adaptability.
