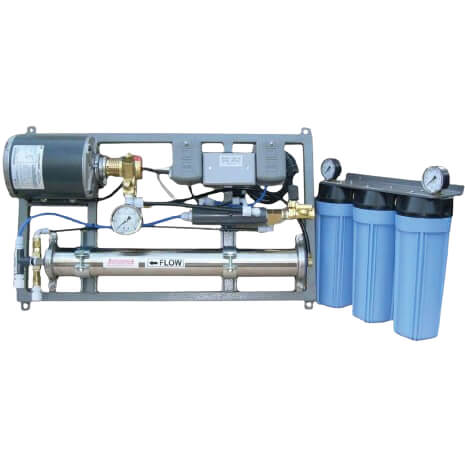

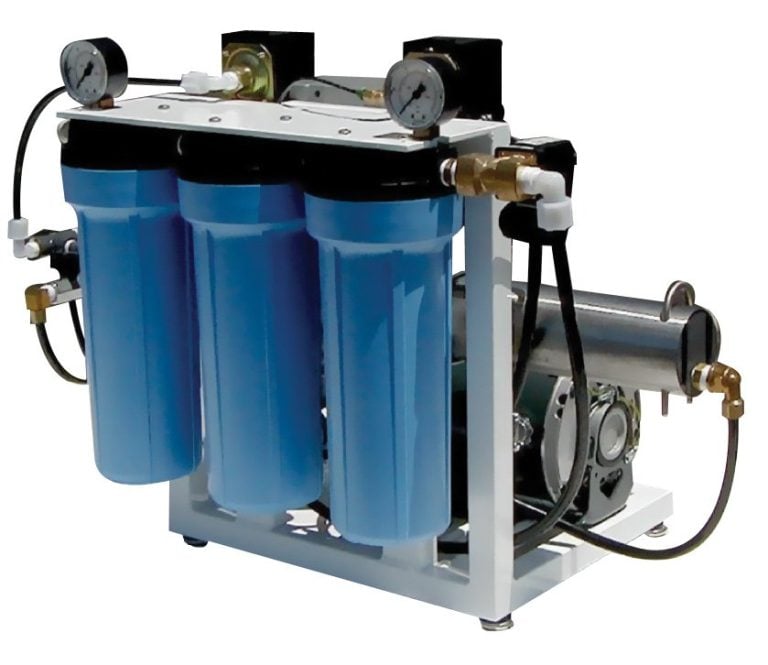

Reverse Osmosis Compact I Units

The Reverse Osmosis Compact I Units are designed for commercial and light industrial water purification and offer a powerful, compact and reliable filtration option for those companies looking for the very best in high-output water filtration. These models come in 4 sizes (150 GPD, 250 GPD, 450 GPD, and 800 GPD) and utilize a multi-stage purification process with fewer housings, saving you space and energy.

The units, which are fitted with high performance membrane technology, robust components and automatic control, have been designed to provide maximum uptime in a small format Compact I I I water treatment units provide users with high performance, hassle-free purification at low running costs. Whether utilized in hydroponic or aquaculture applications, in laboratories or in environmental that control systems, these reverse osmosis systems offer reliable operated like any on the market, their water quality can be taylored to very specific high use applications.

Component Engineering and Material Durability

Thin Film Composite (TFC) Membrane

A thin film composite membrane, which is responsible for the main reverse osmosis action, is at the center of the filtration. This semi permeable membrane filters out dissolved salts, heavy metals, color, and other impurities, down to approximately.001 microns, facilitating the swift and successful passage of water molecules. Due to its high rejection rate and service life, it's a reliable option for challenging applications.

Stainless Steel Membrane Vessel

The membrane resides within a stainless steel membrane vessel, which is a corrosion resistant, pressure capable housing. This strong, durable design guards the membrane from potential damage, preventing system failure under challenging pressure cycles.

Powder-Coated Steel Frame

The entire system is installed in a powder-coated steel frame and is protected from rust and corrosion. This sturdy construction ensures that the frame will not lose shape, will stand the test of time, and is perfect for use in a wet or moist environment as other materials may weaken and degrade over time.

Pressure Management and Flow Monitoring

Liquid-Filled System Pressure Gauge

For each unit, a liquid-filled system pressure gauge is included to eliminate vibration and deliver a constant indicating of system pressure. This feature will prevent pump from consistent power running up until it destroys itself and enables user to check actual performance at real time.

Inlet and Outlet Pre-Filter Gauges

Pre-filter gauges at the inlet and outlet allow the pressure before and after pre-filtration to be monitored and thus avoid a pre-mature filter damage or membrane fouling. The operator can see at a glance on these gauges when there is a clog or filter full condition and take appropriate action.

Fixed Stainless Steel Products for Waste and Recycle Flow Devices

For the protection of the membrane and the operation of the system it is important to keep waste discharge and the recycled concentrate flow nearly constant. The fixed waste/recycle flow control is constructed of stainless steel, and it controls these effluents to ensure the system achieves and remains at the proper recovery ratio without pressure overloads.

Piping, Fittings, and Electrical Control

Nylon Tubing with Brass Compression Fittings, Black_RDONLY

The paths of the water are built out of high pressure nylon tubing that is chemically resistant, and has a pressure rating in excess of high pressure. The connections are easy to make with brass compression fittings, which are built to last and provide leak-free operation and resistance to corrosion.

Feed Water Inlet Solenoid Valve

To automate the feeding of water, a feed water inlet solenoid valve is provided. This valve is in the open or closed state in accordance with the demand of the system and control signal, and manual operation is reduced, and security is better.

Feed Water Low-Pressure Switch

In the event of insufficient input pressure, the feed water low pressure switch cuts off the system, so as not to let the pump work without water, and therefore, allows no good for the motor. This is important to save pump life and minimize downtime.

Storage Tank Pressure Switch

System Features: Portable design pump system Electronic dry running protection prevents damage to the pump Effective shower with 0.0-0.8 bar pressure Triggers at 1.5 bars Stopt at 3.5 bars The storage tank pressure switch on the system turns off the unit when the storage tank is full to avoid wasted energy and to prevent overflow. This automatic process can ease operations and safeguard the following components.

Motor, Pump, and Pre-Filtration System

Rotary Vane Pump

The heart of the pressure system is the rotary vane pump, which delivers a uniform and efficient water flow to the membrane. Compact, low noise, and easily maintained, the pump delivers the pressure head necessary for good filtration.

½ HP and ¾ HP Motors

Depending on the model selected:

150, 250, and 450 GPD systems come with a ½ hp motor, which possesses more than enough toque to operate the rotary vane pump properly.

The 800 GPD model is equipped with a ¾ HP motor which adds to the boost in power required for the extra capacity while maintaining the system stability.

10” 5-Micron Sediment Pre-Filter

The five-stage filtration system first passes through a 10-inch 5-micron sediment pre-filter. It eliminates any of these particulates such as sand, silt, and rust which protects the carbon filters and RO membrane of being clogged prematurely.

2 Stage 10” Carbon Block Pre-Filters (2 pack)

Behind the sedi-ment filter are two carbon block pre-filters that remove chlorine, chloramines, and organic matter. These filters also extend the life of the RO membrane based on how they retain the good taste and odor by removing chemical and sediment.

Voltage Compatibility and Custom Options

Electrical Compatibility

All models are set at 110 volt-50/60Hz, designed to work with common electrical supplies. It can be adapted to work on 220 volt-50/60Hz for overseas or industry applications.

Optional Features

Below is a description of upgrades available to accommodate additional user needs:

• Nanofiltration membrane: Remains beneficial minerals while removing impurities.
• Super Hi-Flow membrane: For the institution that requires superior filtration rate.
• Atmospheric tank float switch: Automatically adjusts water level in tank, no operator effort is required.
• Wall mounted design: Convenient use of limited space, use the wall.
• Low pressure units: Suitable for use where feedwater TDS less than 2000 ppm.

Final Words

The Reverse Osmosis Compact I Units provide a turnkey solution for professionals who need feed water with high purity in a small, flexible system. Every piecefrom the TFC membrane and stainless steel housing, to the rotary vane pump and carbon block filters has been chosen to match these higher standards: performance, safety and durability.

They're compatible with a variety of voltage systems, automated to be smart and can add enhancements that are all about you! Whether your business calls for a compact 150 GPD system or a high-volume 800 GPD unit, this line has the answer for you with the performance and value your company is looking for to remain effective and efficient with pure, clean water.
