Skid To Go

Industrial Reverse Osmosis Skid To Go The Complete Skid Skid To Go The Skid To Go series is powerful line of commercial reverse osmosis systems built on a mobile skid for quick setup and on-demand high volume water treatment. Built for the flexibility and agility required in industries like agriculture, food and beverage processing, emergency response, and construction, these systems are right at home.

Constructed from stainless steel membrane, high-pressure membranes, intelligent microprocessor controller and optional upgrades, all Skid To Go units are engineered to purify water up to a 70% recovery rate using low energy membranes and energy efficient motors. Available in capacities of 1,600+ to 7,200+ GPD, the Skid To Go series can accommodate feedwater below or above 2,000 TDS, in both normal and low-energy models.

Complete Model Overview

The Skid To Go range consists of following models:

• STG-1 / STG-1S: 1,800+ / 1,600+ GPD
• STG-2 and STG-2S: 3,170+ and 3,600+ GPD
• STG-3 / STG-3S: 4,750+ / 5,400+ GPD

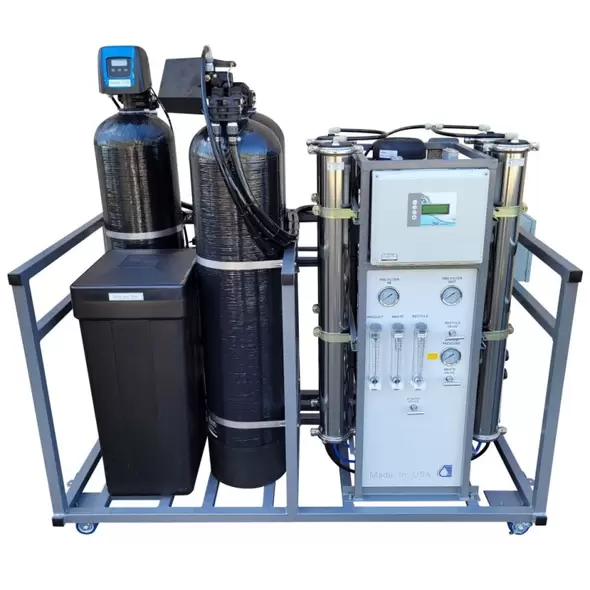

• STG-4 / STG-4S: 6,340+ / 7,200+ GPD

Both BW (standard) and LE (low energy) models are offered in operating pressures ranging from 150 to 200 psi, based on the feedwater quality and system configuration.

Structural Design and Portability

Casters Powder-Coated Steel Skid Frame

All models are mounted in a powder-coated steel frame on heavy duty casters with brakes, providing easy mobility in your work area. Handles and a reinforced base make the skid design portable and strong for both in the field and in tight plant applications where portability and stability are needed.

Integrated Repressurization System

The two models include a ¾ HP stainless steel repressurization pump and a repressurization pressure gauge The repressurized purified water can then be delivered to end use points (storage tanks, process lines, irrigation systems, etc.

Membrane and Filtration Configuration

High-Efficiency TFC Membranes

The system features thin-film composite (TFC) membranes in 4” x 40” housings, with 1 to 4 membranes per model determined by the output capacity. These membranes filter dissolved solids, minerals, and organic material to provide dependable water quality.

Stainless Steel Membrane Vessels

The membrane is packed in a stainless steel membrane vessel engineered to handle continuous high-pressure to provide corrosion resistance.

20″ Big Blue 5-Micron Sediment Pre-Filter

The feed water passes through a 20”x 5 micron Big Blue filter to reduce rust, sand, and large particles of debris before they enter and clog the RO membrane. This stage greatly reduces frequency of maintenance and prevents system components from being dirtied.

Pumping and Hydraulic Components

SStainless Steel Multi-Stage Pump and TEFC Motor

Each is powered by a multiple impeller, stainless steel integrated pump/motor unit with a TEFC motor which is integral to the pump and fan cool for more efficient operation and resistance to water and dust contamination. Motor capacities varies 1 HP - 3 HP as per system size and operating pressure requirements.

Stainless Steel Needle Valves

Rugged stainless steel adjustable waste and recycle needle valves enable precise control of water recovery and rejection rates for better system performance and membrane life.

Flow Monitoring Tools

Flow meters on the product, waste and recycle streams on each unit allow for accurate real time information to be used for system optimization and troubleshooting.

Automation and Electrical Controls

Smart Microprocessor Controller

The processor in the systemNeed of micro in system for14 Each system will contain the following:-System microprocessor controller consisting of:-

• 4-line LCD display
• TDS monitoring with probe
• Tank full alert
• System On/Off controls
• Time-delay start
• Hour meter
• Low-pressure shutdown
• Permeate temperature monitoring

Operators can easily set up system behavior and view diagnostic data via the system menu and keypad interface.

Safety and Integration

Features are standard pretreatment lock-out, open tank float switch or water level controller, feed water low pressure off switch, and stainless steel solenoid inlet valve-all to make for safe and dependable operation.

Optional Upgrades and Add-Ons

The Skid To Go range features numerous performance and integration upgrades:

• Auto hourly flush system for membrane sterilization
• Permeate purging valve and product diverter valve
• A feed water TDS monitor for source water quality analysis
• Pressure switch off and system lockout failsafes
• Ultra violet filter sterilization and ozone for resevoir treatment
• Power socket for anti-scalant pump coment installation
• Motors: 3-phase, with Iec electric contactor and overload relay.
• Can be used outside of the USA with 50 Hz motors

External filtration units such as water softeners, carbon filters, Filter Ag, or Enpress filter systems can also be added for individual water chemistry requirements.

Final Words

Designed to take water treatment on the go, our Skid To Go commercial RO units are built for commercial and industrial users who require strong water treatment in a small, movable, and smart system. Available in various GPD capacities, low-power options, accurate hydraulics, and user friendly smart controller, these systems make water treatment easy even if the field conditions change.

Whether on mobile agricultural deployments or remote industrial locations, the Skid To Go series efficiently provides clean water with a tough design, smart automation, and upgrade-ready capabilities for changing operational demands.
