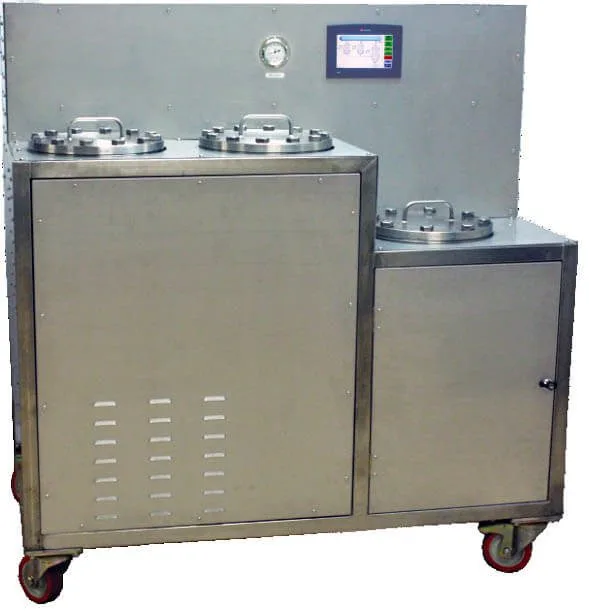

20L LPE Extraction System - PURE5™

Description

The revolutionary 20L LPE Extraction System is a cutting-edge cannabis extractor that combines low cost, efficiency, safety, and product quality. Crafted from premium stainless steel, this state-of-the-art system features 2x10L extraction vessels, providing the capacity to process a substantial amount of dry material each day. Equipped with advanced safety features like spring-loaded relief valves and pressure transducers, you can confidently operate the system with peace of mind. The integrated temperature and pressure sensors offer precise control, resulting in exceptional potency and flavor profiles for strain-specific extracts.

Our 20L LPE Extraction System excels in efficiency and environmental consciousness. With its gravitational flow path and jacketed separator/collection vessel, it supports fast batch extraction, minimizing downtime and maximizing productivity. The use of energy-efficient R134a refrigerant in the heat exchanger ensures optimal cooling and heating while reducing environmental impact. Additionally, the system's compact design and durable stainless steel construction optimize space utilization without compromising functionality.

Upgrade your extraction capabilities today with the 20L LPE Extraction System, unlocking exceptional capacity, precise control, and eco-friendly operation. With this advanced cannabis extractor, you can produce high-quality, potent extracts that will elevate your customer experience. Embrace the power of innovation and take your extraction endeavors to new heights with outstanding results.

Extraction Vessel

• Volume: 2x10L vessel holds up to 2-4 lb of dry material
• Pressure: Maximum operating pressure 16 bar
• Temperature: Max 60C/140F
• Material: 304 stainless steel
• Vessel: interior is polished to food grade level
• Closure: ASME flange, both ends
• Sealing: Flanges with TFE flat seals
• Sensors: Pt100 sensors
• Volume: 10 liters (5.13 gallons)
• Safety: spring loaded safety relief valve

Solvent Receiver

• Orientation: Horizontal
• Pressure: Maximum Pressure 10 bar
• Maximum Solvent Content: 32 Kg

Separator/Collection Vessel

• Separator: Jacketed separator/collection vessel
• Volume: 10 Liter
• Pressure: Maximum pressure 10 bar
• Temperature: max 60C (140F)
• Materials: 304 stainless steel
• Closures: FDA sanitary style bolted
• Sealing: Flanges with PTFE flat seals
• Safety: Spring loaded safety release valve
• Flow path: Continuous/batch gravitational path

Heat Exchanger

• Construction: Refrigeration unit
• Materials: All 304 stainless steel
• Cooling/Heating: R134a refrigerant

Chiller/Receiver

• Refrigeration: heat pumping
• Temperature range: -10C to 50C (14F to 158F)
• Maximum refrigerant content: 2 kg

Physical Dimensions

• Height: 1550 mm
• Length: 1420 mm
• Width: 780 mm
• Material: 304 stainless steel
• Weight: 550 kg

Electrical

• Voltage: 230V
• Power: 4kW
• Plug: 4-way 50A outlet

Control System

• Functions: Fully automatic programmable Logic Controller (PLC) touch screen interface with first level safety functionality and user programmable pressure, temperature, and time.
• Safety: Pressure transducers monitor system pressure and shut down system to prevent accidental over-pressurization/safety valves.
