500L LPE Extraction System - PURE5™

Description

Experience the ultimate in high-capacity botanical extraction with our state-of-the-art 500L LPE Extraction System. Designed to meet the demands of large-scale extraction operations, this advanced system delivers efficiency and precision on a grand scale. The Extraction Vessel, constructed from durable 304/316 stainless steel, boasts an impressive capacity to process a significant amount of dried and ground material. With its maximum operating pressure and wide temperature range, it ensures optimal conditions for extracting valuable compounds, guaranteeing exceptional performance and results.

The Separator/Collection Vessel, built with top-quality stainless steel, enables seamless separation of extracted materials. Its continuous diameter flow path ensures smooth and efficient processing, eliminating constrictions that may hinder productivity. The Heat Exchanger, featuring a robust construction and utilizing energy-efficient R134a refrigerant, provides precise cooling and heating capabilities. This ensures consistent and controlled extraction conditions, enhancing the overall extraction process.

Equipped with a fully automatic programmable Logic Controller (PLC) touch screen interface, our 500L LPE Extraction System offers convenient control over crucial parameters. You can easily adjust and monitor pressure, temperature, and time, allowing for customization and optimization of the extraction process. Integrated safety features, including pressure transducers and safety valves, ensure a secure working environment, providing peace of mind during operation.

Elevate your extraction capabilities with the 500L LPE Extraction System, the perfect solution for maximizing productivity, quality, and control in large-scale extraction operations. Unleash the full potential of your botanical extracts with this cutting-edge extractor, engineered to deliver efficiency, reliability, and superior results. Experience the future of high-capacity botanical extraction today.

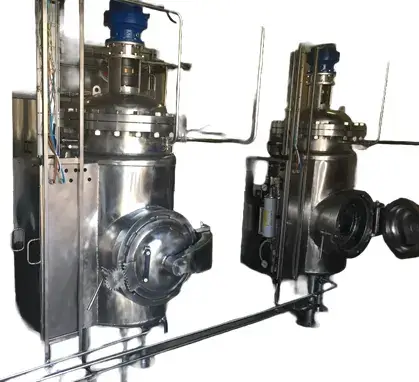

Extraction Vessel

• Volume: 2x250L vessel holds up to 100-200 pound of dried and ground material
• Pressure: Maximum system operating pressure 16 bar
• Temperature: max 85°C (185°F)
• Materials: 304 stainless steel
• Vessel: interior is polished to food grade level
• Closures: ASME flange, both ends
• Sealing: PTFE flat seals
• Temperature measurement: Pt100 sensors
• Water Jacket volume: 100 Liters (22 gallons)
• Safety: spring loaded safety relief valve
• Raw material feeding: vacuum mode
• Residue removal: vacuum mode, bayonet closure
• Raw material agitation: low speed

Separator/Collection Vessel

• Separator: Jacketed separator/collection vessel
• Volume: 1 pieces per 30 Liters
• Pressure: Maximum system operating pressure 12 bar
• Temperature: max 85°C (185°F)
• Materials: 304 stainless steel
• Cleaning: Manual by direct access or by cleaning by spray ball
• Safety: spring loaded safety relief valve
• Flow path: from extractor to separator is continuous diameter with no constrictions

Heat Exchanger

• Construction: Plate type and shell & tube type
• Materials: all 304 stainless steel
• Cooling/Heating: R134a refrigerant

Chiller/Receiver

• Refrigeration: heat pumping
• Temperature range: 20°C to 45°C (68°F to 113°F)
• Maximum refrigerant content: 1000 kg

Skid Physical Dimensions

• Skids number: 1 piece
• Height: 2,500mm
• Length: 2,500mm
• Width: 1,500 mm
• Total weight: app. 6,000 kg
• Floor mounting area: min. 70 m²
• Ceiling height: 6.0 m

Control System

• Functions: Fully automatic programmable Logic Controller (PLC) touch screen interface with first level safety functionality and user programmable pressure, temperature, and time.
• Safety: Pressure transducers monitor system pressure and shut down system to prevent accidental over-pressurization/safety valves.
