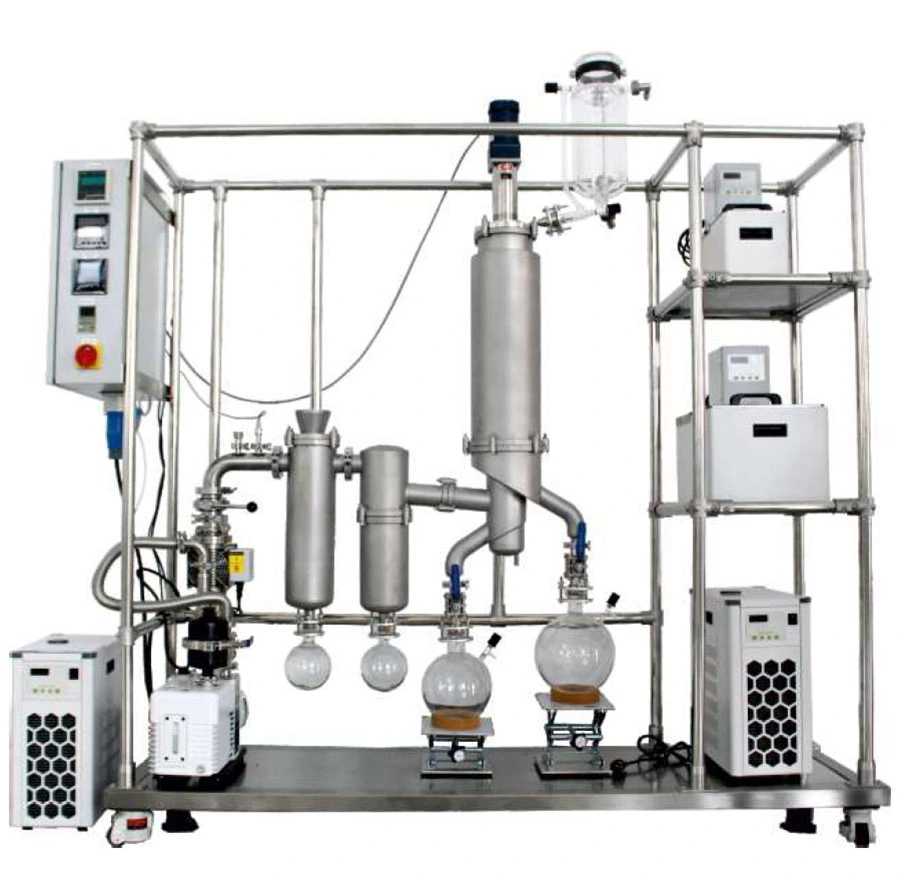

6" SS Wipe Film Distillation - PURE5™

Technical Data

• Effective Evaporation area: 0.25 m2
• Ultimate vacuum degree: ≤ 1.0 Pa
• Barrel inside diameter: 150 mm
• Motor Power: 120 W
• Max RPM: 300
• Power supply: 220V/60Hz, 1 phase
• Processing Flow 2.0-5.0 L/H
• Discharge system: ball valve
• Feeding system: 5L manual

Condenser

• Separator: 2 stage condenser with cold trap
• Pressure: No pressure
• Temperature: -20°C (-4°F)
• Materials: 304 stainless steel

Chiller

• Construction: Recirculation cooler
• Volume: 6L
• Range: -20°C
• Rate: 22 L/min

Heat/Cold Exchanger

• Construction: Cooling and heating circulator
• Range: -20°C to 150°C
• Rate: 22 L/min
• Volume: 17 L

Heat Circulation

• Construction: Heating circulator
• Range: +20°C to 220°C
• Rate: 22 L/min
• Volume: 17 L

Vacuum Pump

• Air Compressor: Dual Stage
• Temperature Range: -10°C to 50°C (-14°F to 158°F)
• Ultimate Pressure: 1 x 10-3 mbar

Physical Dimensions

• Height: 83″
• Length: 87″
• Width: 26″
• Total weight: app. 1,210 lb
• Floor mounting area. min. 20 m2
• Ceiling height. 2.5 m

Control System

• Functions: Programmable Logic Controller (PLC) with first level safety functionality and user programmable temperature.
