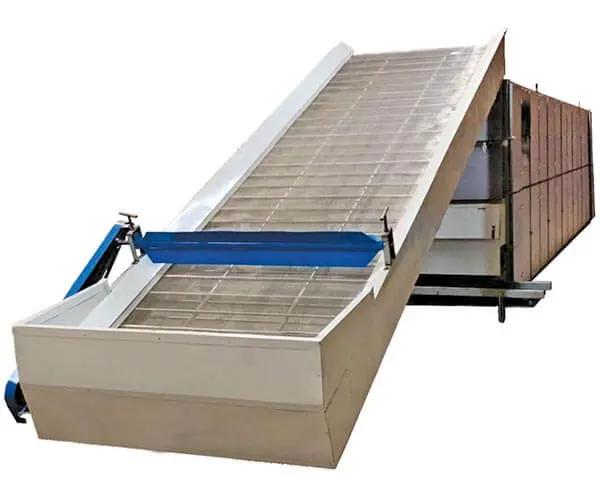

Conveyor Dryer System - PURE5™

Specifications

Feeding Conveyor

• Model: 10T (width: 1/8m, length: 6m)
• Motor power: 3 kW
• Material: food grade stainless steel
• Belt material: food grade stainless steel
• Switch-plate: keep the material evenly spreading on the belt
• Application: conveying material to the drying machine

Discharging conveyor

• Width: 500 mm
• Length: 4000 mm
• Frame material: food grade stainless steel
• Belt material: food grade PVC belt
• Motor power: 0.55 kW
• Speed controller: 1 pieces

Dryer

• Model: 12Mx4L
• Conveying belt:
  • width: 1800 mm
  • length: 12000 mm
  • layer: 4 layers
• Insulation layer: rock wool 25 mm
• Mesh Belt material: 304SS
• Insulation layer, Rock wool 25mm, sealing rubber strip
• Mesh: SS 304 stainless
• Chain: P=25.4, Supporting roller, Supporting tube: φ21.5
• Transmission shaft: φ45
• Bearing: 6308
• Frame: 8#U steel, 80*40 Galvanized square
• Sealing device: Rock wool insulation
• Discharge seal plate: alimunium silicate board
• Drying temperature: 0-90 degree centigrade, Can be adjusted

Heat Exchange Furnace

• Fuel: natural gas
• Furnace Model: HFR
• Machine size: 3424*2182*1838mm
• Hot air blower system:
  • hot air draft fan: 22 kW
  • smoke exhaust fan: 2.2 kW
• Temperature: 0-90°C

Control Cabinet

• Model: Frequency converter
  • Control the motor power of dryer
  • Control the speed of dryer
  • Control the temperature of dryer
• Total power: 27.75 kW

Physical Dimensions

• Total Power: 22.2 kW
